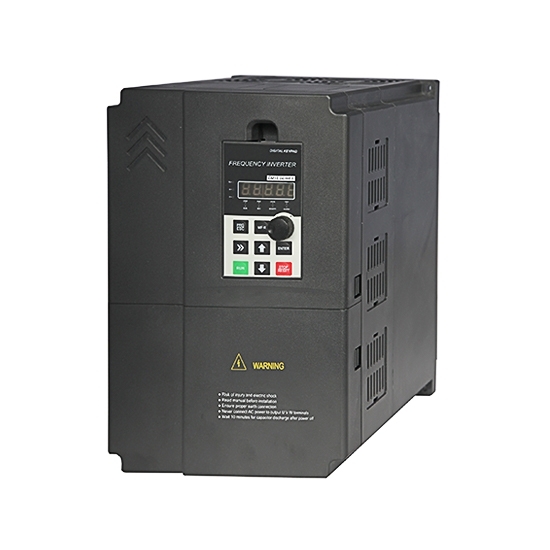

0.75 kW Solar Pump Inverter, DC/AC Input to 3ph AC Output

Best sale 0.75 kW 1 hp solar pump inverter with low cost, supports both DC and AC power inputs solar pump inverter controller, converts DC or single phase input to 0~input voltatge three phase AC output for irrigation system.

1 review(s) | Add your review

SKU: GK330-R7D-1B

Free shipping

Delivery date: 6-12 days

$305.85

Qty:

Products specifications

Attribute name	Attribute value
User Manual	Solar Pump Inverter User Manual

0.75 kW solar water pump inverter, 1 horsepower MPPT based solar pump VFD, applicable to 3 phase 208-240 volt induction motor, manufacturer direct sale.

Specification

Basics	Model	GK330-R7D-1B
	Capacity	0.75 kW (1 hp)
	Weight	2.4 kg
	Product dimension	189.5167120 mm
Input Feature	Input voltage	DC 260~350V，recommend DC 300~350V for 3-phase 220/230/240V motor Single phase AC 220V ±15%
	Vmp/Voc voltage	VMP≥280V, voc≤400V
	Rated input current	8.2 A
	Input frequency	47~63 Hz
	Input power of solar panel	About 1.5 times the solar pump inverter rated power
Output Feature	Output voltage	Three phase 0~rated input voltage
	Rated output current	4 A
	Output frequency	50Hz/ 60Hz (output 0-300Hz please contact us) DC 270~320V corresponds to 0-50Hz for 220V AC
Control	Control mode	SVPWM, SVC
	Motor type	Asynchronous motor
	Speed ratio	Asynchronous motor 1:100 (SVC)
	Speed control accuracy	±0.2%(SVC)
	Speed fluctuation	±0.3%(SVC)
	Torque response	<20ms (SVC)
	Torque control accuracy	10%(SVC)
	Starting torque	0.25 Hz / 150% (SVC)
	Overload capability	150% of rated current: 1 minute 150% of rated current: 10 seconds 200% of rated current: 1 second
Running control	Frequency setting method	Digital settingAnalog setting Pulse frequency setting Multi-step speed running settingSimple PLC setting PID setting, MODBUS communication setting Shift between the set combination and set channel
	Operation method	Keyboard/ terminal/ communication
	Auto-adjustment of voltage	Keep a stable voltage automatically when the gird voltage transients
	Fault protection	Overcurrent, overvoltage, undervoltage, overheating, phase loss, overload, etc.
	Special functions for PV water pumps	Maximum power tracking, pre-warning at weak light, auto wake up at strong light, Pre-warning when full water, auto wake up at low water level, Underload pre-warning and protection of water level sensor, When pre-warning, the inverter is in stand-by
Environment	Environment temperature	-10℃~40℃ (environment temperature is among 40℃~50℃; please use it with derating)
	Storage temperature	-20℃~65℃
	Environment humidity	Less than 90 % R.H, not exceeding 90% R.H
	Altitude, Vibration	Below 1000 m, below 5.9m/s² (=0.6g)
	Cooling method	Forced cooling and natural air cooling
	Enclosure rating	IP 20
Warranty	18 months

Features

Solar pump inverter adopts advanced MPPT control technology, real-time detection of solar panels power voltage, tracking the highest voltage and current, efficiency is as high as 98%.
It can enter automatically to sleep mode when the intensity of sunlight is weak, as well as can exit the sleep mode when the intensity of sunlight is becoming strong.
Automatic sleep when on high-water level and automatic restart when on low-water level to realize automatic control through water level.
Multiple power supply design, power input can be solar energy photovoltaic DC power supply (DC 260~350V, DC 450~750V), can also be single phase or three phase AC power, simple wiring.
Smart operation, water level detection and operation panel to prevent overflow, dry pumping.
Protect itself in trouble and improve the reliability of whole system.
The bypass- AC source which runs automatically when the sun is Not sufficient or absent.

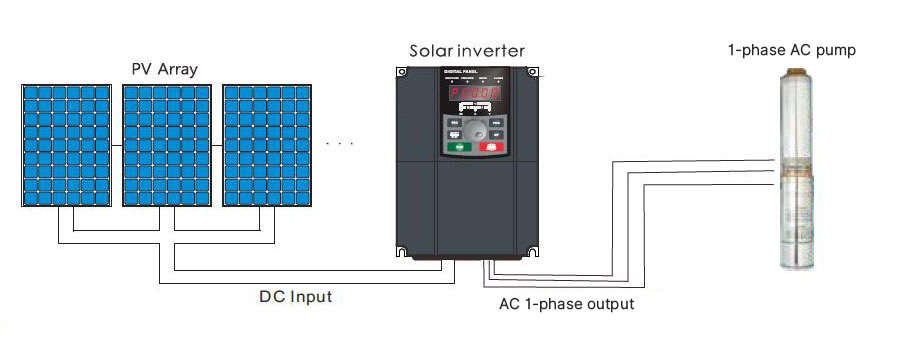

solar pump inverter wiring application

Tips: Polycrystalline silicon solar panel vs. monocrystalline silicon solar panel
Photoelectric conversion efficiency:
The conversion efficiency of monocrystalline silicon is 17%-25%, and the conversion efficiency of polycrystalline silicon is about 16%, but the price of monocrystalline silicon is higher than polycrystalline silicon.
The difference between monocrystalline silicon and polycrystalline silicon:
The surface of the monocrystalline silicon is black, and the surface of the polycrystalline silicon is blue or colored.
monocrystalline silicon receives light in one direction, and polysilicon receives light in multiple directions.
At the same power capacity, the area of the polysilicon plate is 1.1 times larger than that of the single crystal silicon.

Overview
Specifications

0.75 kW solar water pump inverter, 1 horsepower MPPT based solar pump VFD, applicable to 3 phase 208-240 volt induction motor, manufacturer direct sale.

Specification

Basics	Model	GK330-R7D-1B
	Capacity	0.75 kW (1 hp)
	Weight	2.4 kg
	Product dimension	189.5167120 mm
Input Feature	Input voltage	DC 260~350V，recommend DC 300~350V for 3-phase 220/230/240V motor Single phase AC 220V ±15%
	Vmp/Voc voltage	VMP≥280V, voc≤400V
	Rated input current	8.2 A
	Input frequency	47~63 Hz
	Input power of solar panel	About 1.5 times the solar pump inverter rated power
Output Feature	Output voltage	Three phase 0~rated input voltage
	Rated output current	4 A
	Output frequency	50Hz/ 60Hz (output 0-300Hz please contact us) DC 270~320V corresponds to 0-50Hz for 220V AC
Control	Control mode	SVPWM, SVC
	Motor type	Asynchronous motor
	Speed ratio	Asynchronous motor 1:100 (SVC)
	Speed control accuracy	±0.2%(SVC)
	Speed fluctuation	±0.3%(SVC)
	Torque response	<20ms (SVC)
	Torque control accuracy	10%(SVC)
	Starting torque	0.25 Hz / 150% (SVC)
	Overload capability	150% of rated current: 1 minute 150% of rated current: 10 seconds 200% of rated current: 1 second
Running control	Frequency setting method	Digital settingAnalog setting Pulse frequency setting Multi-step speed running settingSimple PLC setting PID setting, MODBUS communication setting Shift between the set combination and set channel
	Operation method	Keyboard/ terminal/ communication
	Auto-adjustment of voltage	Keep a stable voltage automatically when the gird voltage transients
	Fault protection	Overcurrent, overvoltage, undervoltage, overheating, phase loss, overload, etc.
	Special functions for PV water pumps	Maximum power tracking, pre-warning at weak light, auto wake up at strong light, Pre-warning when full water, auto wake up at low water level, Underload pre-warning and protection of water level sensor, When pre-warning, the inverter is in stand-by
Environment	Environment temperature	-10℃~40℃ (environment temperature is among 40℃~50℃; please use it with derating)
	Storage temperature	-20℃~65℃
	Environment humidity	Less than 90 % R.H, not exceeding 90% R.H
	Altitude, Vibration	Below 1000 m, below 5.9m/s² (=0.6g)
	Cooling method	Forced cooling and natural air cooling
	Enclosure rating	IP 20
Warranty	18 months

Features

Solar pump inverter adopts advanced MPPT control technology, real-time detection of solar panels power voltage, tracking the highest voltage and current, efficiency is as high as 98%.
It can enter automatically to sleep mode when the intensity of sunlight is weak, as well as can exit the sleep mode when the intensity of sunlight is becoming strong.
Automatic sleep when on high-water level and automatic restart when on low-water level to realize automatic control through water level.
Multiple power supply design, power input can be solar energy photovoltaic DC power supply (DC 260~350V, DC 450~750V), can also be single phase or three phase AC power, simple wiring.
Smart operation, water level detection and operation panel to prevent overflow, dry pumping.
Protect itself in trouble and improve the reliability of whole system.
The bypass- AC source which runs automatically when the sun is Not sufficient or absent.

solar pump inverter wiring application

Products specifications

Attribute name	Attribute value
User Manual	Solar Pump Inverter User Manual

Existing reviews

Supper solar pump inverter!

This inverter is easy to install and functioned perfectly. so far runs everything I need it to! I really like it. The owners manual was an easy read. Outstanding product for the price.

From: Firth William | Date: 4/20/2022 12:20 AM

Was this review helpful? Yes No (0/0)
