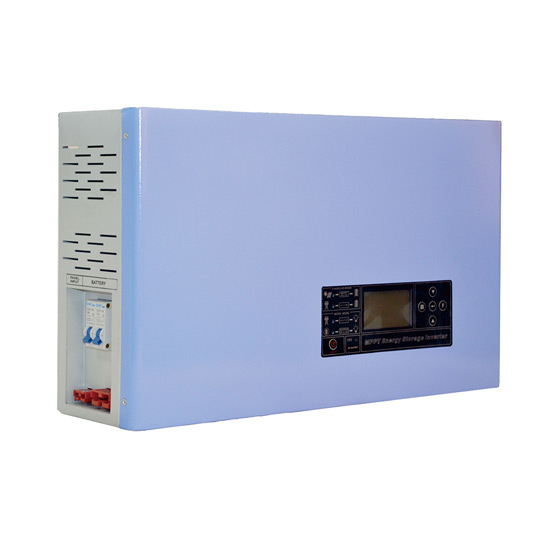

1000W 24V Solar Inverter with MPPT Charge Controller
1000W 24V Solar Inverter with MPPT Charge Controller
1000W 24V Solar Inverter with MPPT Charge Controller
1000W 24V Solar Inverter with MPPT Charge Controller

1000W 24V Solar Inverter with MPPT Charge Controller

1000W (1500VA) rated capacity off grid pure sine wave solar power inverter, built-in solar MPPT charge controller 30A, can charge for battery and convert DC 24V to AC 220/240V.
2 review(s) | Add your review
SKU: ATO-IC-1000
Free shipping
Delivery date: 6-12 days
*
*
$682.31
Products specifications
Attribute name Attribute value
User Manual

PDFSolar Inverter with MPPT Charge Controller User Manual

1000 watt 24 volt solar inverter with 30A MPPT charge controller, pure sine wave output, AC/ DC priority modes can be set, powerful protection fuction such as overload, overvoltage, low voltage, high temperature, output short circuit and battery reverse protection.

1000W 24V Solar Inverter with MPPT Charge Controller Parameter List

Model ATO-IC-1000
Rated capacity 1000W (1500VA)
Size 470*298*136mm
Net Weight 30kg
Function Setting Time & date setting, Contrast, lightness, Switch voltage, Grid charge, Clear records, Operating parameter, Discharge limited setting, Reset
Working mode Grid priority/ Battery priority (optional)
Charge mode PV priority/ PV+grid (optional)
LCD dislpay Internal and External temperature, record query (fault record), system information query
PV input Voltage range 12V DC (18V-150V DC), 24V DC (34V-150V DC), 48V DC (65V-150V DC), 96V DC (130V-180V DC)
Battery max charge current 30A
Battery volatge 24V (Other input voltage, please contact us)
Max power load 840W
Float voltage 12V (13.75V), 24V (27.5V), 48V (55V), 96V (110V)
Equalization voltage 12V (14.2V), 24V (28.4V), 48V (56.8V), 96V (113.6V)
Grid Input Battery type Lead acid/ gel/ lithium (optional, factory setting)
Charge current 0-30A
Charge mode Improve charge, direct charge, float charge
AC Output AC charge current Standard: 0-30A
AC output voltage 110/ 220/ 230/ 240V ±3%
AC output frequency 50Hz/ 60Hz
Conversion Efficiency ≥85%
Overload 105-120% 30s, 120-150% 10s,>150% 5s
Output form Pure sine wave
Output power factor ≥0.8
Wave form distortion ≤3%
Switching time ≤4ms
Protection Function Overload capacity 105-120% 30s, 120-150% 10s,>150% 5s
Over discharge 10.5V (12V) DC/ 21V (24V) DC/ 42V (48V) DC/ 84V DC shut down after alarm
Over charge 16V (12V) DC/ 32V (21V) DC/ 64V (48V) DC/ 128V DC shut down after alarm
High temperature 85℃ auto shut down after alarm
Short circuit Auto shut down
Others Cooling method Fan cooling
Noise <60 dB
Operating temperature -10℃-50℃
Environment humidity 10%-90% (No condensation)
Working Elevation <5000m (>1000m, derating)

Solar Inverter with MPPT Charge Controller Working Mode Instructions

Solar inverter with MPPT charge controller work mode instructions

Tips: AC commercial power preferred mode of solar inverter with MPPT charge controller

Under AC commercial power preferred mode, commercial power supply power to load, it is output to load through system AVR and isolating part, to make sure the stability of output power source.

  1. AC input supply power for user's load, at this time, power produced by solar panels only charge for batteries.
  2. When batteries' power is gravely insufficient, except for supply power for users' load, AC will start up to auxiliary charge for batteries. But it won't fully charge to batteries.
  3. When AC is off or abnormal, the system will switch over to batteries to supply power for load.

1000 watt 24 volt solar inverter with 30A MPPT charge controller, pure sine wave output, AC/ DC priority modes can be set, powerful protection fuction such as overload, overvoltage, low voltage, high temperature, output short circuit and battery reverse protection.

1000W 24V Solar Inverter with MPPT Charge Controller Parameter List

Model ATO-IC-1000
Rated capacity 1000W (1500VA)
Size 470*298*136mm
Net Weight 30kg
Function Setting Time & date setting, Contrast, lightness, Switch voltage, Grid charge, Clear records, Operating parameter, Discharge limited setting, Reset
Working mode Grid priority/ Battery priority (optional)
Charge mode PV priority/ PV+grid (optional)
LCD dislpay Internal and External temperature, record query (fault record), system information query
PV input Voltage range 12V DC (18V-150V DC), 24V DC (34V-150V DC), 48V DC (65V-150V DC), 96V DC (130V-180V DC)
Battery max charge current 30A
Battery volatge 24V (Other input voltage, please contact us)
Max power load 840W
Float voltage 12V (13.75V), 24V (27.5V), 48V (55V), 96V (110V)
Equalization voltage 12V (14.2V), 24V (28.4V), 48V (56.8V), 96V (113.6V)
Grid Input Battery type Lead acid/ gel/ lithium (optional, factory setting)
Charge current 0-30A
Charge mode Improve charge, direct charge, float charge
AC Output AC charge current Standard: 0-30A
AC output voltage 110/ 220/ 230/ 240V ±3%
AC output frequency 50Hz/ 60Hz
Conversion Efficiency ≥85%
Overload 105-120% 30s, 120-150% 10s,>150% 5s
Output form Pure sine wave
Output power factor ≥0.8
Wave form distortion ≤3%
Switching time ≤4ms
Protection Function Overload capacity 105-120% 30s, 120-150% 10s,>150% 5s
Over discharge 10.5V (12V) DC/ 21V (24V) DC/ 42V (48V) DC/ 84V DC shut down after alarm
Over charge 16V (12V) DC/ 32V (21V) DC/ 64V (48V) DC/ 128V DC shut down after alarm
High temperature 85℃ auto shut down after alarm
Short circuit Auto shut down
Others Cooling method Fan cooling
Noise <60 dB
Operating temperature -10℃-50℃
Environment humidity 10%-90% (No condensation)
Working Elevation <5000m (>1000m, derating)

Solar Inverter with MPPT Charge Controller Working Mode Instructions

Solar inverter with MPPT charge controller work mode instructions

Tips: AC commercial power preferred mode of solar inverter with MPPT charge controller

Under AC commercial power preferred mode, commercial power supply power to load, it is output to load through system AVR and isolating part, to make sure the stability of output power source.

  1. AC input supply power for user's load, at this time, power produced by solar panels only charge for batteries.
  2. When batteries' power is gravely insufficient, except for supply power for users' load, AC will start up to auxiliary charge for batteries. But it won't fully charge to batteries.
  3. When AC is off or abnormal, the system will switch over to batteries to supply power for load.
Products specifications
Attribute name Attribute value
User Manual

PDFSolar Inverter with MPPT Charge Controller User Manual
Existing reviews
Excellent charge controller
Use this PWM controller to make charging faster, especially important in winter when sunlight is limited. Another thing I love about this controller is the illuminated display feature, which cycles through panel voltage, charge current, and battery voltage readings.
Drake Lio | 4/26/2022 1:29 AM
Was this review helpful? Yes No (0/0)
Costumer Service is great.
This is my first time buying a solar inverter. I don't know which style to buy. The customer service of the Inverter.com online store recommended this 1000W 24V solar inverter according to my needs. I also asked many questions about the 1000W 24V solar inverter, and they responded patiently to me. I am very satisfied with their service.
Lincoln Lincoln | 5/19/2021 7:41 PM
Was this review helpful? Yes No (0/0)
