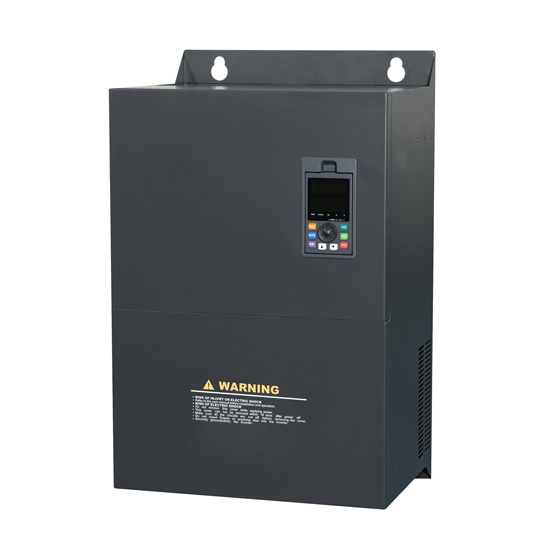

110 kW Frequency Inverter, 3 Phase 208V, 380V, 460V

110 kW Frequency Inverter, 3 Phase 208V, 380V, 460V

Affordable price 110 kW (150 hp) frequency inverter, three phase 208V - 480V input and 3 phase output variable frequency drive, protecting the motor from surge current and energy saving.
1 review(s) | Add your review
SKU: GK3000-4T1100G
Free shipping
Delivery date: 3-10 days
*
$4,882.54

110 kW frequency inverter for three phase electric motor speed control, three phase 220V, 415V, 480V vector control VFD.

Specification:

Basics Model GK3000-4T1100G/ GK3000-2T1100G
Capacity 110 kW (150 hp)
Shipping weight 85 kg
Dimension 760*485*324 mm
I/O Feature Rated current 210A at 380V ~ 480V, 420A at 220V ~ 240V
Input voltage 3 phase 230V /400V /480V AC ±15% (Optional)
Input frequency 50Hz/ 60Hz
Output voltage 3 phase AC 0~input voltage
Output frequency 0.00~400.00Hz
Over load capacity 150 % of rated current for 1 minute, 180 % of rated current for 3 seconds
Control Feature Control mode V/F control;
Sensorless vector control;
Communication RS485
Speed regulation 1:100
Start torque 150% of rating torque at 1 Hz
Speed control accuracy ≤±0.5% of rating synchronous speed
Frequency precision Digital setting: max frequency x± 0.01%;
Analog setting: max frequency x± 0.2%
Frequency resolution Analog setting: 0.1% of max frequency;
Digital setting: 0.01Hz
Torque boost Automatic torque boost, manual torque boost 0.1%~30.0%
Interior PID controller Be convenient to make closed-loop system
Automatic energy save running Optimize V/F curve automatically based on the load to realize power save running
Automatic voltage regulation (AVR) Can keep constant output voltage when power source voltage varies.
Automatic current limiting Limit running current automatically to avoid frequent over-current which will cause trip
Environment Enclosure rating IP 20
Temperature –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
Humidity 5%-95%, without condensation
Altitude ≤1000m; VFD will be derated if above 1000m
Impingement and oscillation Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
Store environment –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight
Existing reviews
Can the frequency inverter be directly connected to the motor?
Do I need an additional relay to use with the frequency inverter or can I wire it directly to the motor?
Chele Chele | 10/28/2021 12:46 AM
Was this review helpful? Yes No (0/0)
Responded by inverter.com
Wire it directly to the motor.
