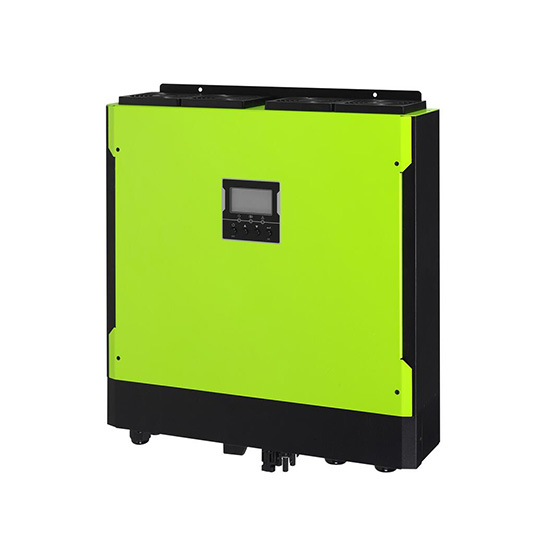

5kW Hybrid Solar Inverter

Factory price hybrid solar inverter with rated power 5000W, max input vlotage to 900V, one phase, LCD display data, with wide MPPT voltage DC 250-850V and max efficiency up to 91%, 230V AC (184~265V) output.
SKU: ATO-HSI-5kW
Free shipping
Delivery date: 40-45 days
$2,270.95

Low cost single phase 5000 watt off grid solar inverter for home used, DC input voltage 200-900V, AC output 184 volt / 265 volt, small and light, easy to install. The MPPT function improves the efficiency of the solar power system.

Features

  • Combine power for self-use and grid connection.
  • The priority supply sequence of solar, battery power and city power can be set.
  • The charging current can be adjusted according to a variety of battery types.
  • Optional modes: grid-connected mode, off-grid mode and grid-connected energy storage mode.
  • The built-in timer can set the machine on/off time.
  • The LCD panel can display various detailed information.
  • Configure multiple communication ports.

Parameter List:

Model ATO-HSI-5kW48-230
Rated Power 5000W
PV INPUT (DC) Maximum DC Power 10000W
Nominal DC Voltage DC 720V
Maximum DC Voltage DC 900V
Working DC Voltage Range DC 200V-900V
Start-up Voltage / Initial Feeding Voltage 250V/300V
MPP Voltage Range DC 250V-DC 850V
Full Load MPP Voltage Range DC 500V-DC 800V
Maximum Input Current 2*10A
Isc PV (absolute maximum) 25A
Max. inverter back feed current to the array 0A
GRID OUTPUT (AC) Nominal Output Voltage  AC 230V
Output Voltage Range AC 184V-265V
Output Frequency Range 47.5-51.5Hz~59.3-60.5Hz
Nominal Output Current 21.8A/phase
Inrush Current/Duration 25A/20ms
Maximum Output Fault Current/Duration 65A/1ms
Maximum output Overcurrent Protection 65A
Power Factor Range 0.9 lead - 0.9 lag
AC INPUT AC Start-up Voltage AC 120V-140V
Auto Restart Voltage AC 180V
Acceptable Input Voltage Range AC 170V-280V
Nominal Frequency 50Hz / 60Hz
AC Input Power 5000VA / 5000W
Maximum AC Input Current 40A
Inrush Input Current 40A/1ms
BATTERY MODE OUTPUT (AC) Nominal Output Voltage  AC 230V
Output Frequency Range 50 Hz / 60 Hz (auto sensing)
Output Waveform Pure sine wave
Output Power 5000VA/5000W
Efficiency (DC to AC) 91%
BATTERY & CHARGER (Lead-acid/Li-ion) DC Voltage Range DC 40V–60V
Nominal DC Voltage DC 48V
Maximum Battery Discharging Current 138A
Maximum Charging Current 100A
GENERAL PHYSICAL Dimension, D*W*H (mm) 600*460*204.2
Net Weight (kgs) 29
INTERACE Communication Port RS-232/USB
Intelligent Slot Optional SNMP, Modbus and AS-400 cards available
ENVIRONMENT Protective Class I
Ingress Protection Rating IP20
Humidity 0 ~ 90% RH (No condensing)
Operating Temperature  -10 to 55°C (Power derating above 50°C)
Altitude Max. 2000m*

Tips: How to Maintain and Clean the 5kW Hybrid Solar Inverter?

Check the following points to ensure proper operation of whole solar system at regular intervals.
1. Ensure all connectors of this inverter are cleaned all the time.
2. Before cleaning the solar panels, be sure to turn off PV DC breakers.
3. Clean the solar panels, during the cool time of the day, whenever it is visibly dirty.
4. Periodically inspect the system to make sure that all wires and supports are securely fastened in place.

Battery Maintenance
1. Servicing of batteries should be performed or supervised by personnel knowledgeable about batteries and the required precautions.
2. When replacing batteries, replace with the same type and number of batteries or battery packs.
3. The following precautions should be observed when working on batteries:
a) Remove watches, rings, or other metal objects.
b) Use tools with insulated handles.
c) Wear rubber gloves and boots.
d) Do not lay tools or metal parts on top of batteries.
e) Disconnect charging source prior to connecting or disconnecting battery terminals.
f) Determine if battery is inadvertently grounded. If inadvertently grounded, remove source from ground. Contact with any part of a grounded battery can result in electrical shock. The likelihood of such shock can be reduced if such grounds are removed during installation and maintenance (applicable to equipment and remote battery supplies not having a grounded supply circuit).
