1300W 110V DC Solar Water Pump

110 volt solar water pump with special DC controller has maximum head 80~155m (260~510ft), maximum flow 1004~1849 gallons per hour, 3 inch/4 inch inlet diameter and 1.25 inch outlet diameter. 1300 watt solar water tank pump can be used for water feature, water gardens, tank, pool, large pond or fountain.

2 review(s) | Add your review

SKU: ATO-SWP-110V1300

Free shipping

Delivery date: 6-12 days

Max. Flow & Max. Head *

$879.94

PRICE BREAKS - The more you buy, the more you save

Quantity	5+	10+	50+
Discount	3% OFF	4% OFF	5% OFF

Qty:

Overview
Specifications

1300W solar water pump with DC controller, 110V working voltage, 1004~1849 gph max. flow, 80~155m max. head.

Specifications:

Basics	SKU	ATO-SWP-110V1300
	Shipping weight	15kg
	Cable length	2m

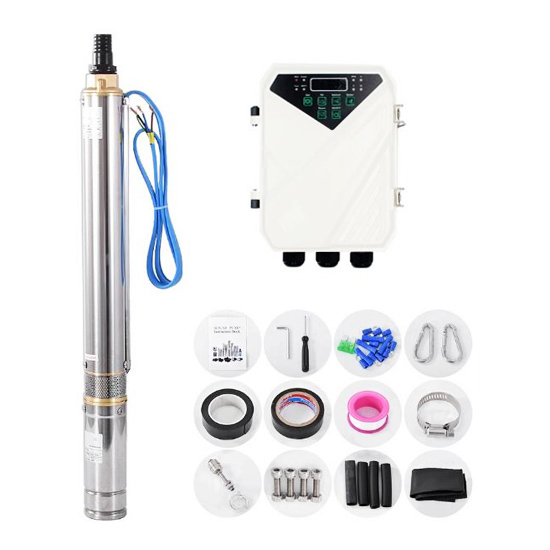

	Package included	1 * Solar water pump 1 * DC controller 1 * Stainless steel float switch (water level sensor for the tank) 1 * Pump outlet joint connector 1 * Splice kit for cable join 1 * Splice kit for waterproof 1 * User manual
	Warranty	2 years
Solar water pump features	Power	1300W
	Voltage	110V DC
	Max. flow *	3.8m³/h (1004 gph, American system)	6.0m³/h (1585 gph, American system)	7.0m³/h (1849 gph, American system)
	Max. head *	155m (510ft)	112m (365ft)	80m (260ft)
	Length	80cm	60cm	60cm
	Inlet diameter	3 inch	4 inch	4 inch
	Outlet diameter	1.25 inch	1.25 inch	1.25 inch
	Impeller structure	Single-suction plastic impeller	Single-suction plastic impeller	Single-suction stainless steel impeller
	Material of outlet/connector/oil cylinder	Brass	Brass	Stainless steel or brass
	Model	3DPC3.8-155-110-1300	4DPC6-112-110-1300	4DSC7-80-110-1300
	Internal motor	Brushless DC motor
	Speed	4000rpm
	Material of shaft	304 stainless steel
	No water protection function	The water pump stops working automatically when there is no water in the well, and it will automatically restart working 30 minutes later.
	Required open circuit voltage (VOC) of solar panel	＜200V DC
	Required power of solar panel	≥1.3*pump power
	Efficiency	45%
Controller features	Model	DF-110
	Best MPPT voltage range	110-150V DC
	Max. input current	15A
	Working temperature	-15~+60℃ (5~140℉)
	Display	LED display can show power, voltage, current and speed value.
	Functions	Automatic charging (for battery) Variable frequency Automatic power ON/OFF Soft start High voltage/low voltage/over-current/high temperature protection
	Protection class	IP65

1300W 110V DC solar water pump performance curves:
Max. Flow: 3.8m³/h, Max. Head: 155m, Model: 3DPC3.8-155-110-1300

Max. Flow: 3.8m³/h, Max. Head: 123m, Model: 4DPC6-112-110-1300
1300W 110V DC 4 inch solar water pump performance curves
Max. Flow: 3.8m³/h, Max. Head: 123m, Model: 4DSC7-80-110-1300

Solar water pump installation drawing:

Solar water pump wiring diagram:

Tips: Does a battery is needed in the solar water pumping system?
Normally, the solar water pumping system doesn't necessarily require a battery. In order to save costs, most solar water pumps can be pumped continuously through the solar panels during the day. Its main function is to store water in a water tank or pond, rather than to store electric energy in a battery. In this way, the water stored in daytime can be used at any time. For off-grid pumping requirements at night, the battery can power the pump continuously by using the power generated by the solar panels during the day. Therefore, it is possible to confirm whether it is necessary to increase the battery according to your own needs, and also need to select a controller with charge control function.

Products specifications

Attribute name	Attribute value
User Manual	Solar Water Pump External DC Cotroller User Manual

Existing reviews

I need solar well pump.

It will be placed to 70-75 meters deep (240’)
And I want to pump out about 20-25GPM (5-6m3/h)
Which pump I need from your website?
Thanks
Kevin

From: Pallotta Pallotta | Date: 12/22/2021 2:01 AM

Was this review helpful? Yes No (0/0)

Responded by inverter.com

Yes, recommend this model SKU: ATO-SWP-110V1500, 1500W, 110V, 7.0m3/h and max. head 100m.
See spec and pric on:https://www.inverter.com/1500w-110v-solar-water-pump
And you can also ask the customer what is the depth from the water level to the ground?

Cost saving solar water pump

The solar water pump purchased from the Inverter.com online store is so practical, it can be used in water features, water gardens, water tanks, swimming pools, large pools or fountains. It can greatly save investment costs, and truly realize one machine with multiple uses.

From: Brian Bates | Date: 11/11/2020 11:14 PM

Was this review helpful? Yes No (0/0)
