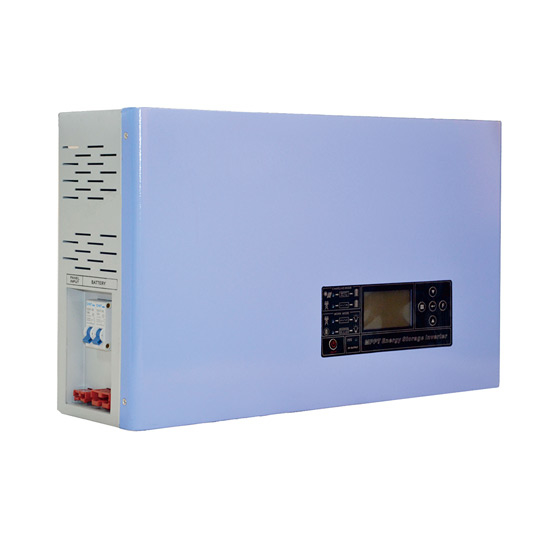

700W 24V Solar Inverter with MPPT Charge Controller
700W 24V Solar Inverter with MPPT Charge Controller
700W 24V Solar Inverter with MPPT Charge Controller
700W 24V Solar Inverter with MPPT Charge Controller

700W 24V Solar Inverter with MPPT Charge Controller

700 watt off grid solar inverter has 24V DC input, 30A battery max charge current, equipped with MPPT solar charge controller to reach a maximum regulate DC power from the solar array for charging the battery bank.
1 review(s) | Add your review
SKU: ATO-IC-700
Free shipping
Delivery date: 6-12 days
*
*
*
$553.31
Products specifications
Attribute name Attribute value
User Manual

PDFSolar Inverter with MPPT Charge Controller User Manual

Pure sine wave solar power inverter built-in 30 amp MPPT charge controller, 700W (1kVA) rated capacity, 12V/ 24V DC input to 110V/ 220V/ 230V/ 240V AC.

700W Solar Inverter with MPPT Charge Controller Parameter List

Model ATO-IC-700
Rated capacity 700W (1kVA)
Size 470*298*136mm
Net weight 13kg
Function Setting Time & date setting, Contrast, lightness, Switch voltage, Grid charge, Clear records, Operating parameter, Discharge limited setting, Reset
Working mode Grid priority/ Battery priority (optional)
Charge mode PV priority/ PV+grid (optional)
LCD dislpay Internal and External temperature, record query (fault record), system information query
PV input Voltage range 12V DC (18V-150V DC), 24V DC (34V-150V DC), 48V DC (65V-150V DC), 96V DC (130V-180V DC)
Battery max charge current 30A
Battery volatge 12V/ 24V (Other input voltage, please contact us)
Max power load 420W/ 840W
Float voltage 12V (13.75V), 24V (27.5V), 48V (55V), 96V (110V)
Equalization voltage 12V (14.2V), 24V (28.4V), 48V (56.8V), 96V (113.6V)
Grid Input Battery type Lead acid/ gel/ lithium (optional, factory setting)
Charge current 0-30A
Charge mode Improve charge, direct charge, float charge
AC Output AC charge current Standard: 0-30A
AC output voltage 110/ 220/ 230/ 240V ±3%
AC output frequency 50Hz/ 60Hz
Conversion Efficiency ≥85%
Overload 105-120% 30s, 120-150% 10s,>150% 5s
Output form Pure sine wave
Output power factor ≥0.8
Wave form distortion ≤3%
Switching time ≤4ms
Protection Function Overload capacity 105-120% 30s, 120-150% 10s,>150% 5s
Over discharge 10.5V (12V) DC/ 21V (24V) DC/ 42V (48V) DC/ 84V DC shut down after alarm
Over charge 16V (12V) DC/ 32V (21V) DC/ 64V (48V) DC/ 128V DC shut down after alarm
High temperature 85℃ auto shut down after alarm
Short circuit Auto shut down
Others Cooling method Fan cooling
Noise <60 dB
Operating temperature -10℃-50℃
Environment humidity 10%-90% (No condensation)
Working Elevation <5000m (>1000m, derating)

Solar Inverter with MPPT Charge Controller Working Mode Instructions

Solar inverter with MPPT charge controller work mode instructions

Tips: DC battery preferred mode of solar inverter with MPPT charge controller

Under DC battery preferred mode, the batteries supply power to load, as shown of green arrow in the above picture.

  1. Not only the power produced by solar panels will supply to user's appliances, but also the redundant power will be restored in the batteries.
  2. When power produced by solar panels is not sufficient for user's load, the power restored in batteries will supplement to load.
  3. When batteries's power is not sufficient, power produced by solar panels is not sufficient, the system will switch over to AC to supply power to load. If batteries' power is gravely insufficient, the system will switch over to AC to supply power to load, besides, it will automatically start up AC to charge for batteries. When batteries are full charged to 100%, the system will return to DC battery work mode automatically.

Pure sine wave solar power inverter built-in 30 amp MPPT charge controller, 700W (1kVA) rated capacity, 12V/ 24V DC input to 110V/ 220V/ 230V/ 240V AC.

700W Solar Inverter with MPPT Charge Controller Parameter List

Model ATO-IC-700
Rated capacity 700W (1kVA)
Size 470*298*136mm
Net weight 13kg
Function Setting Time & date setting, Contrast, lightness, Switch voltage, Grid charge, Clear records, Operating parameter, Discharge limited setting, Reset
Working mode Grid priority/ Battery priority (optional)
Charge mode PV priority/ PV+grid (optional)
LCD dislpay Internal and External temperature, record query (fault record), system information query
PV input Voltage range 12V DC (18V-150V DC), 24V DC (34V-150V DC), 48V DC (65V-150V DC), 96V DC (130V-180V DC)
Battery max charge current 30A
Battery volatge 12V/ 24V (Other input voltage, please contact us)
Max power load 420W/ 840W
Float voltage 12V (13.75V), 24V (27.5V), 48V (55V), 96V (110V)
Equalization voltage 12V (14.2V), 24V (28.4V), 48V (56.8V), 96V (113.6V)
Grid Input Battery type Lead acid/ gel/ lithium (optional, factory setting)
Charge current 0-30A
Charge mode Improve charge, direct charge, float charge
AC Output AC charge current Standard: 0-30A
AC output voltage 110/ 220/ 230/ 240V ±3%
AC output frequency 50Hz/ 60Hz
Conversion Efficiency ≥85%
Overload 105-120% 30s, 120-150% 10s,>150% 5s
Output form Pure sine wave
Output power factor ≥0.8
Wave form distortion ≤3%
Switching time ≤4ms
Protection Function Overload capacity 105-120% 30s, 120-150% 10s,>150% 5s
Over discharge 10.5V (12V) DC/ 21V (24V) DC/ 42V (48V) DC/ 84V DC shut down after alarm
Over charge 16V (12V) DC/ 32V (21V) DC/ 64V (48V) DC/ 128V DC shut down after alarm
High temperature 85℃ auto shut down after alarm
Short circuit Auto shut down
Others Cooling method Fan cooling
Noise <60 dB
Operating temperature -10℃-50℃
Environment humidity 10%-90% (No condensation)
Working Elevation <5000m (>1000m, derating)

Solar Inverter with MPPT Charge Controller Working Mode Instructions

Solar inverter with MPPT charge controller work mode instructions

Tips: DC battery preferred mode of solar inverter with MPPT charge controller

Under DC battery preferred mode, the batteries supply power to load, as shown of green arrow in the above picture.

  1. Not only the power produced by solar panels will supply to user's appliances, but also the redundant power will be restored in the batteries.
  2. When power produced by solar panels is not sufficient for user's load, the power restored in batteries will supplement to load.
  3. When batteries's power is not sufficient, power produced by solar panels is not sufficient, the system will switch over to AC to supply power to load. If batteries' power is gravely insufficient, the system will switch over to AC to supply power to load, besides, it will automatically start up AC to charge for batteries. When batteries are full charged to 100%, the system will return to DC battery work mode automatically.
Products specifications
Attribute name Attribute value
User Manual

PDFSolar Inverter with MPPT Charge Controller User Manual
Existing reviews
Is this 700W 24V solar inverter free of postage?
Is this 700W 24V solar inverter free of postage?
Christin Christin | 6/17/2021 7:18 PM
Was this review helpful? Yes No (0/0)
A manager responded to this review
Hello, it is not free of postage.
