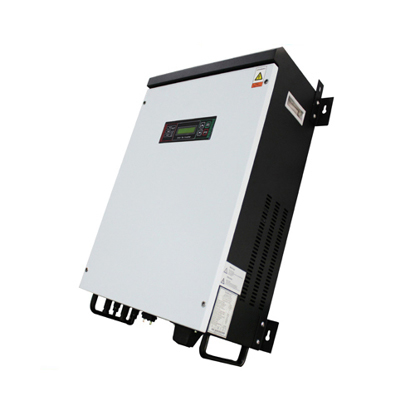

10kW Single Phase Grid Tie Solar Inverter

Single phase 180-500 volt DC to 230/240 volt AC on grid inverter operates at 50Hz/60Hz low frequency, 10kW rated capacity, transformerless design and high power density, LCD display main parameters, with wide MPPT voltage, easy to install, is a perfect solution for grid tied solar power system.
SKU: ATO-GTI-10k
Free shipping
Delivery date: 6-12 days
$1,775.65
Products specifications
Attribute name Attribute value
Installation Guide

PDFSingle-phase Grid Tie Inverter Installation Guide

User Manual

PDFSingle-phase Grid Tie Inverter User Manual

Hot sale on grid tie solar inverter is 10000W high power capacity, max input power to 10900W, pure sine wave output, LCD display data, with wide MPPT voltage 180-450V DC and max efficiency up to 99.5%, default single phase 220V/ 230V AC (190~270V) output, 110V is optional.

Features

  • Can be applied to various fields, mainly for solar power, wind power, battery power, and scenery lamp power.
  • Strong IP65 protection, completed sealed cover suitable for harsh environment.
  • Advanced MPPT tracking technology, wide MPPT voltage range.
  • No isolation transformer H6 full-bridge configuration, highest efficiency reach 97%.
  • Over voltage, short circuit, overload, overheating, anti-islanding protection etc.
  • Multiple inverters can be operated in parallel.
  • LCD display, convenient for user to monitor main parameters.
  • Support various communication modes.

Parameter List

MODEL ATO-LT10000
DC INPUT Max. DC Input Power 10900 watt
Max. DC Input Voltage 500V DC
Max. DC Input Current 50A
MPPT Tracking Voltage Range 180-500V
MPPT Tracking Number / Each Input String Number 1/2
Power ON / OFF Voltage 200V / 100V
Input Terminal MC4
AC OUTPUT Power 10kW
Output Range Single phase AC 190~270V
Adjustable according to different countries and regions requirement.
Rated Voltage L+N+PE 220V/ 230V/ 240V AC
Frequency 50Hz / 60Hz
Phase Single phase
Power Factor 1
Maximum Current 45A
Current THD At rated power and in the sine wave <3.5%
Max. Efficiency 97%
MPPT Efficiency 99.5%
Output Terminal Connect terminals
STRUCTURE Protection Degree IP20
Cooling Method Cooling fan
Topology No transformer
Noise <50db
Data Interfaces RS 485C / RS232 (Standard) / WiFi Module (Optional)
Isolation Type Non-isolated
Standby Power Consumption 0W
Display LCD dispaly
DC Switch Integration
AC Switch Integration
Protection Functions DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi
ENVIRONMENT Operation Temperature Air Flow, -10℃~40℃
Storage Temperature -20℃~60℃
Relative Humidity 0~100%
Altitude 2000m, max 3000m
OTHERS Size (W*H*D) 530*680*240mm
Weight 32kg
Certificate CE / G83 / IEC / TUV / SAA
Warranty 5 years

Hot sale on grid tie solar inverter is 10000W high power capacity, max input power to 10900W, pure sine wave output, LCD display data, with wide MPPT voltage 180-450V DC and max efficiency up to 99.5%, default single phase 220V/ 230V AC (190~270V) output, 110V is optional.

Features

  • Can be applied to various fields, mainly for solar power, wind power, battery power, and scenery lamp power.
  • Strong IP65 protection, completed sealed cover suitable for harsh environment.
  • Advanced MPPT tracking technology, wide MPPT voltage range.
  • No isolation transformer H6 full-bridge configuration, highest efficiency reach 97%.
  • Over voltage, short circuit, overload, overheating, anti-islanding protection etc.
  • Multiple inverters can be operated in parallel.
  • LCD display, convenient for user to monitor main parameters.
  • Support various communication modes.

Parameter List

MODEL ATO-LT10000
DC INPUT Max. DC Input Power 10900 watt
Max. DC Input Voltage 500V DC
Max. DC Input Current 50A
MPPT Tracking Voltage Range 180-500V
MPPT Tracking Number / Each Input String Number 1/2
Power ON / OFF Voltage 200V / 100V
Input Terminal MC4
AC OUTPUT Power 10kW
Output Range Single phase AC 190~270V
Adjustable according to different countries and regions requirement.
Rated Voltage L+N+PE 220V/ 230V/ 240V AC
Frequency 50Hz / 60Hz
Phase Single phase
Power Factor 1
Maximum Current 45A
Current THD At rated power and in the sine wave <3.5%
Max. Efficiency 97%
MPPT Efficiency 99.5%
Output Terminal Connect terminals
STRUCTURE Protection Degree IP20
Cooling Method Cooling fan
Topology No transformer
Noise <50db
Data Interfaces RS 485C / RS232 (Standard) / WiFi Module (Optional)
Isolation Type Non-isolated
Standby Power Consumption 0W
Display LCD dispaly
DC Switch Integration
AC Switch Integration
Protection Functions DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi
ENVIRONMENT Operation Temperature Air Flow, -10℃~40℃
Storage Temperature -20℃~60℃
Relative Humidity 0~100%
Altitude 2000m, max 3000m
OTHERS Size (W*H*D) 530*680*240mm
Weight 32kg
Certificate CE / G83 / IEC / TUV / SAA
Warranty 5 years
