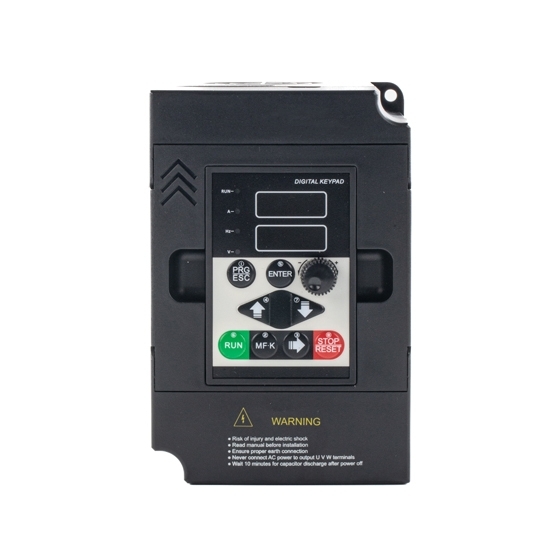

1.5 kW Solar Pump Inverter, DC/AC Input to 3ph AC Output

High efficiency 1.5 kW (2 hp) MPPT solar water pump inverter, input voltage from 260V DC to 350V DC (or single phase AC 220v) to drive three phase 220V AC water pump, automatically adjust the motor speed and the water flow according to the sunlight intensity.

Be the first to review this product

SKU: GK330-1R5D-1B

Free shipping

Delivery date: 6-12 days

$353.08

Qty:

Products specifications

Attribute name	Attribute value
User Manual	Solar Pump Inverter User Manual

1.5 kW solar pump VFD with 3 phase 220v AC output for agricultural irrigation, solar energy and power grid switchable, multiple power supply designed solar AC drive.

Specification

Basics	Model	GK330-1R5D-1B
	Capacity	1.5 kW (2 hp)
	Weight	2.4 kg
	Product dimension	189.5167120 mm
Input Feature	Input voltage	DC 260~350V, recommend DC 300~350V for 3-phase 220/230/240V motor Single phase AC 220V ±15%
	Vmp/Voc voltage	VMP≥280V, voc≤400V
	Rated input current	14 A
	Input frequency	47~63 Hz
	Input power of solar panel	About 1.5 times the solar pump inverter rated power
Output Feature	Output voltage	Three phase 0~rated input voltage
	Rated output current	7 A
	Output frequency	50Hz/ 60Hz (output 0-300Hz please contact us) DC 270~320V corresponds to 0-50Hz for 220V AC
Control	Control mode	SVPWM, SVC
	Motor type	Asynchronous motor
	Speed ratio	Asynchronous motor 1:100 (SVC)
	Speed control accuracy	±0.2%(SVC)
	Speed fluctuation	±0.3%(SVC)
	Torque response	<20ms (SVC)
	Torque control accuracy	10%(SVC)
	Starting torque	0.25 Hz / 150% (SVC)
	Overload capability	150% of rated current: 1 minute 150% of rated current: 10 seconds 200% of rated current: 1 second
Running control	Frequency setting method	Digital settingAnalog setting Pulse frequency setting Multi-step speed running settingSimple PLC setting PID setting, MODBUS communication setting Shift between the set combination and set channel
	Operation method	Keyboard/ terminal/ communication
	Auto-adjustment of voltage	Keep a stable voltage automatically when the gird voltage transients
	Fault protection	Overcurrent, overvoltage, undervoltage, overheating, phase loss, overload, etc.
	Special functions for PV water pumps	Maximum power tracking, pre-warning at weak light, auto wake up at strong light, Pre-warning when full water, auto wake up at low water level, Underload pre-warning and protection of water level sensor, When pre-warning, the inverter is in stand-by
Environment	Environment temperature	-10℃~40℃ (environment temperature is among 40℃~50℃; please use it with derating)
	Storage temperature	-20℃~65℃
	Environment humidity	Less than 90 % R.H, not exceeding 90% R.H
	Altitude, Vibration	Below 1000 m, below 5.9m/s² (=0.6g)
	Cooling method	Forced cooling and natural air cooling
	Enclosure rating	IP 20
Warranty	18 months

Features

Solar pump inverter adopts advanced MPPT control technology, real-time detection of solar panels power voltage, tracking the highest voltage and current, efficiency is as high as 98%.
It can enter automatically to sleep mode when the intensity of sunlight is weak, as well as can exit the sleep mode when the intensity of sunlight is becoming strong.
Automatic sleep when on high-water level and automatic restart when on low-water level to realize automatic control through water level.
Multiple power supply design, power input can be solar energy photovoltaic DC power supply (DC 260~350V, DC 450~750V), can also be single phase or three phase AC power, simple wiring.
Smart operation, water level detection and operation panel to prevent overflow, dry pumping.
Protect itself in trouble and improve the reliability of whole system.
The bypass- AC source which runs automatically when the sun is Not sufficient or absent.

solar pump inverter wiring application

Tips: Solar pump system vs. ordinary pump system

Unlike the ordinary water pump system which uses AC as power supply, solar water pump system uses DC power output from solar array as power supply. The output of solar array is a strong non-linear DC power supply, which is greatly affected by sunshine, ambient temperature and other meteorological factors. In order to realize the maximum output power potential of PV array under any sunshine, ambient temperature and other conditions, a controller which can make the power supply and load work harmoniously, efficiently and stably is needed. The solar pump inverter is to achieve this function, mainly to achieve MPPT (maximum power point tracking), inverters and some protection functions. The solar pump inverter drives the motor and water pump. The load of the system can be adjusted by adjusting the speed of the pump.

Overview
Specifications

1.5 kW solar pump VFD with 3 phase 220v AC output for agricultural irrigation, solar energy and power grid switchable, multiple power supply designed solar AC drive.

Specification

Basics	Model	GK330-1R5D-1B
	Capacity	1.5 kW (2 hp)
	Weight	2.4 kg
	Product dimension	189.5167120 mm
Input Feature	Input voltage	DC 260~350V, recommend DC 300~350V for 3-phase 220/230/240V motor Single phase AC 220V ±15%
	Vmp/Voc voltage	VMP≥280V, voc≤400V
	Rated input current	14 A
	Input frequency	47~63 Hz
	Input power of solar panel	About 1.5 times the solar pump inverter rated power
Output Feature	Output voltage	Three phase 0~rated input voltage
	Rated output current	7 A
	Output frequency	50Hz/ 60Hz (output 0-300Hz please contact us) DC 270~320V corresponds to 0-50Hz for 220V AC
Control	Control mode	SVPWM, SVC
	Motor type	Asynchronous motor
	Speed ratio	Asynchronous motor 1:100 (SVC)
	Speed control accuracy	±0.2%(SVC)
	Speed fluctuation	±0.3%(SVC)
	Torque response	<20ms (SVC)
	Torque control accuracy	10%(SVC)
	Starting torque	0.25 Hz / 150% (SVC)
	Overload capability	150% of rated current: 1 minute 150% of rated current: 10 seconds 200% of rated current: 1 second
Running control	Frequency setting method	Digital settingAnalog setting Pulse frequency setting Multi-step speed running settingSimple PLC setting PID setting, MODBUS communication setting Shift between the set combination and set channel
	Operation method	Keyboard/ terminal/ communication
	Auto-adjustment of voltage	Keep a stable voltage automatically when the gird voltage transients
	Fault protection	Overcurrent, overvoltage, undervoltage, overheating, phase loss, overload, etc.
	Special functions for PV water pumps	Maximum power tracking, pre-warning at weak light, auto wake up at strong light, Pre-warning when full water, auto wake up at low water level, Underload pre-warning and protection of water level sensor, When pre-warning, the inverter is in stand-by
Environment	Environment temperature	-10℃~40℃ (environment temperature is among 40℃~50℃; please use it with derating)
	Storage temperature	-20℃~65℃
	Environment humidity	Less than 90 % R.H, not exceeding 90% R.H
	Altitude, Vibration	Below 1000 m, below 5.9m/s² (=0.6g)
	Cooling method	Forced cooling and natural air cooling
	Enclosure rating	IP 20
Warranty	18 months

Features

Solar pump inverter adopts advanced MPPT control technology, real-time detection of solar panels power voltage, tracking the highest voltage and current, efficiency is as high as 98%.
It can enter automatically to sleep mode when the intensity of sunlight is weak, as well as can exit the sleep mode when the intensity of sunlight is becoming strong.
Automatic sleep when on high-water level and automatic restart when on low-water level to realize automatic control through water level.
Multiple power supply design, power input can be solar energy photovoltaic DC power supply (DC 260~350V, DC 450~750V), can also be single phase or three phase AC power, simple wiring.
Smart operation, water level detection and operation panel to prevent overflow, dry pumping.
Protect itself in trouble and improve the reliability of whole system.
The bypass- AC source which runs automatically when the sun is Not sufficient or absent.

solar pump inverter wiring application

Tips: Solar pump system vs. ordinary pump system
