600W 72V DC Solar Water Pump

$764.79

PRICE BREAKS - The more you buy, the more you save

Quantity

10+

50+

Discount

3% OFF

4% OFF

5% OFF

| 2 review(s) | Add your review

72 volt solar water pump has single-suction plastic impeller, internal brushless DC motor, special digital DC controller, maximum head 42~80m (135~260ft), maximum flow 800~1585 gallons per hour, 3 inch/4 inch inlet diameter and 1.25 inch outlet diameter. 600 watt solar irrigation pump can be used for water tank, water feature, pond or farms.

Free shipping

Delivery date: 6-12 days

SKU: ATO-SWP-72V600

Max. Flow & Max. Head *

increase decrease

Overview
Specs
Manual
FAQ
Reviews

Overview

600W solar water pump with DC controller, 72V working voltage, 800~1585 gph max. flow, 42~80m max. head.

600W 72V DC solar water pump performance curves:
Max. Flow: 3.0m³/h, Max. Head: 80m, Model: 3DPC3-80-72-600

Max. Flow: 6.0m³/h, Max. Head: 42m, Model: 4DPC6-42-72-600

Solar water pump installation drawing:

Solar water pump wiring diagram:

Specs

Basics	SKU	ATO-SWP-72V600
	Shipping weight	15kg
	Cable length	2m

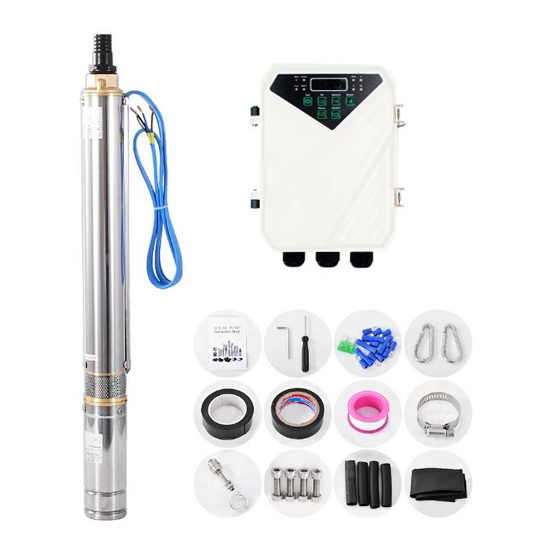

	Package included	1 * Solar water pump 1 * DC controller 1 * Stainless steel float switch (water level sensor for the tank) 1 * Pump outlet joint connector 1 * Splice kit for cable join 1 * Splice kit for waterproof 1 * User manual
	Warranty	2 years
Solar water pump features	Power	600W
	Voltage	72V DC
	Max. flow *	3.0m³/h (800 gph, American system)	6.0m³/h (1585 gph, American system)
	Max. head *	80m (260ft)	42m (135ft)
	Length	60cm	50cm
	Inlet diameter	3 inch	4 inch
	Outlet diameter	1.25 inch	1.25 inch
	Model	3DPC3-80-72-600	4DPC6-42-72-600
	Impeller structure	Single-suction plastic impeller
	Internal motor	Brushless DC motor
	Speed	4000rpm
	Material of shaft	304 stainless steel
	Material of outlet/connector/oil cylinder	Brass
	No water protection function	The pump stops working automatically when there is no water in the well, and it will automatically restart working 30 minutes later.
	Required open circuit voltage (VOC) of solar panel	＜150V DC
	Required power of solar panel	≥1.3*pump power
	Efficiency	45%
Controller features	Model	DF-72
	Best MPPT voltage range	90-120V DC
	Max. input current	15A
	Working temperature	-15~+60℃ (5~140℉)
	Display	LED display can show power, voltage, current and speed value.
	Functions	Automatic charging (for battery) Variable frequency Automatic power ON/OFF Soft start High voltage/low voltage/over-current/high temperature protection
	Protection class	IP65

Manual

Solar Water Pump External DC Cotroller User Manual

FAQ

How to calculate the head of the solar water pump for the water tank?

When we design a solar water pumping system for water tank or home use, we should confirm the head of the solar submersible water pump. If the solar water well pump's head is not enough, the water flow will become small or even the water can not be pumped to the water tank.

In general, 3 distances should be confirmed.

h1: the perpendicular distance between the water tank and the ground.
h2: the perpendicular distance between the ground and solar water pump (in the well).
h3: the horizontal distance between the water tank and the solar water pump (in the well).

Then, the pump head H can be calculated as follows:
H=h1+h2+h3/10

For example, the height of the water tank is 12m, the solar powered water pump is placed at a depth of 5m, and the horizontal distance between the water tank and the solar water pump is 10m.
According to the formula, H=h1+h2+h3/10=12+5+10/10=18m.
