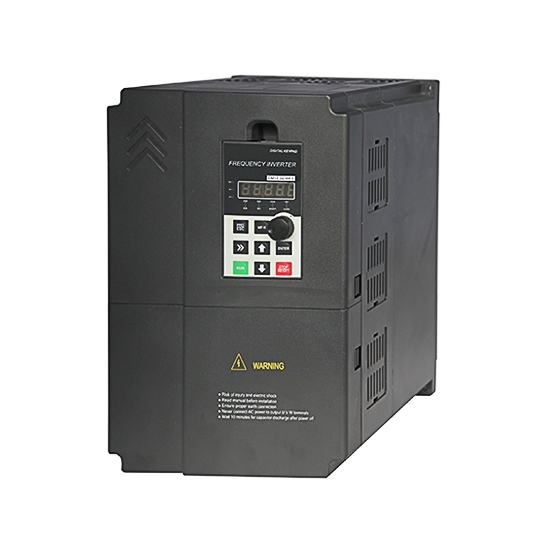

0.4 kW Solar Pump Inverter, DC/AC Input to 3ph AC Output

0.4 kW Solar Pump Inverter, DC/AC Input to 3ph AC Output

Cheap price 0.4 kW (1/2 hp) solar pump inverter, DC 260V-350V to AC 3 phase 220V (or single phase 220/230/240V to three phase) MPPT solar water pump controller / solar VFD, converts DC voltage from the solar array into AC voltage to drive submersible pumps directly.
1 review(s) | Add your review
SKU: GK330-R4D-1B
Free shipping
Delivery date: 6-12 days
$261.58
Products specifications
Attribute name Attribute value
User Manual

PDFSolar Pump Inverter User Manual

0.4 kW solar water pump inverter, built-in Maximum Power Point Tracking (MPPT) controller system to drive 3-phase AC 220v motor water pumps.

Specification

Basics Model GK330-R4D-1B
Capacity 0.4 kW (1/2 hp)
Weight 2.4 kg
Product dimension 189.5*167*120 mm
Input Feature Input voltage DC 260~350V, recommend DC 300~350V for 3-phase 220/230/240V motor
Single phase AC 220V ±15%
Vmp/ Voc voltage VMP≥280V, voc≤400V
Rated input current 5.4 A
Input frequency 47~63 Hz
Input power of solar panel About 1.5 times the solar pump inverter rated power
Output Feature Output voltage Three phase 0~rated input voltage
Rated output current 2.1 A
Output frequency 50Hz/ 60Hz (output 0-300Hz please contact us)
DC 270~320V corresponds to 0-50Hz for 220V AC
Control        Control mode SVPWM, SVC
Motor type Asynchronous motor
Speed ratio Asynchronous motor 1:100 (SVC)
Speed control accuracy ±0.2%(SVC)
Speed fluctuation ±0.3%(SVC)
Torque response <20ms (SVC)
Torque control accuracy 10%(SVC)
Starting torque 0.25 Hz / 150% (SVC)

Overload capability

150% of rated current: 1 minute
150% of rated current: 10 seconds
200% of rated current: 1 second
Running control Frequency setting method Digital settingAnalog setting
Pulse frequency setting
Multi-step speed running settingSimple PLC setting
PID setting, MODBUS communication setting
Shift between the set combination and set channel
Operation method Keyboard/ terminal/ communication
Auto-adjustment of voltage Keep a stable voltage automatically when the gird voltage transients
Fault protection Overcurrent, overvoltage, undervoltage, overheating, phase loss, overload, etc.
Special functions for PV water pumps Maximum power tracking, pre-warning at weak light, auto wake up at strong light,
Pre-warning when full water, auto wake up at low water level,
Underload pre-warning and protection of water level sensor,
When pre-warning, the inverter is in stand-by
Environment Environment temperature -10℃~40℃ (environment temperature is among 40℃~50℃; please use it with derating)
Storage temperature -20℃~65℃
Environment humidity Less than 90 % R.H, not exceeding 90% R.H
Altitude, Vibration Below 1000 m, below 5.9m/s² (=0.6g)
Cooling method Forced cooling and natural air cooling
Enclosure rating IP 20
Warranty 18 months

Features

  • Solar pump inverter adopts advanced MPPT control technology, real-time detection of solar panels power voltage, tracking the highest voltage and current, efficiency is as high as 98%.
  • It can enter automatically to sleep mode when the intensity of sunlight is weak, as well as can exit the sleep mode when the intensity of sunlight is becoming strong.
  • Automatic sleep when on high-water level and automatic restart when on low-water level to realize automatic control through water level.
  • Multiple power supply design, power input can be solar energy photovoltaic DC power supply (DC 260~350V, DC 450~750V), can also be single phase or three phase AC power, simple wiring.
  • Smart operation, water level detection and operation panel to prevent overflow, dry pumping.
  • Protect itself in trouble and improve the reliability of whole system.
  • The bypass- AC source which runs automatically when the sun is Not sufficient or absent.

solar pump inverter wiring application

Tips: Suggestions on how to build solar pump system
1. Installation of solar panels: The installation position should be no shade or obstruction all year round, and there is sufficient direct sunlight. The installation angle with the ground can be determined by reference to the local latitude to ensure that the solar panels receives the max. amount of illumination.
2. Selection of solar water pump inverter: Manufacturers with good product quality should be selected. Solar variable frequency drive with high tracking accuracy and conversion efficiency should be chosen. Tracking accuracy and conversion efficiency will directly affect the pumping effect.
3. Antifreeze: When installing in high and cold areas, the antifreeze treatment of the pipeline system should be done. It is necessary to bury the pipeline below the freezing line. In winter, the water cannot be stored in the pipeline. Otherwise, the pipeline may be broken due to icing.

0.4 kW solar water pump inverter, built-in Maximum Power Point Tracking (MPPT) controller system to drive 3-phase AC 220v motor water pumps.

Specification

Basics Model GK330-R4D-1B
Capacity 0.4 kW (1/2 hp)
Weight 2.4 kg
Product dimension 189.5*167*120 mm
Input Feature Input voltage DC 260~350V, recommend DC 300~350V for 3-phase 220/230/240V motor
Single phase AC 220V ±15%
Vmp/ Voc voltage VMP≥280V, voc≤400V
Rated input current 5.4 A
Input frequency 47~63 Hz
Input power of solar panel About 1.5 times the solar pump inverter rated power
Output Feature Output voltage Three phase 0~rated input voltage
Rated output current 2.1 A
Output frequency 50Hz/ 60Hz (output 0-300Hz please contact us)
DC 270~320V corresponds to 0-50Hz for 220V AC
Control        Control mode SVPWM, SVC
Motor type Asynchronous motor
Speed ratio Asynchronous motor 1:100 (SVC)
Speed control accuracy ±0.2%(SVC)
Speed fluctuation ±0.3%(SVC)
Torque response <20ms (SVC)
Torque control accuracy 10%(SVC)
Starting torque 0.25 Hz / 150% (SVC)

Overload capability

150% of rated current: 1 minute
150% of rated current: 10 seconds
200% of rated current: 1 second
Running control Frequency setting method Digital settingAnalog setting
Pulse frequency setting
Multi-step speed running settingSimple PLC setting
PID setting, MODBUS communication setting
Shift between the set combination and set channel
Operation method Keyboard/ terminal/ communication
Auto-adjustment of voltage Keep a stable voltage automatically when the gird voltage transients
Fault protection Overcurrent, overvoltage, undervoltage, overheating, phase loss, overload, etc.
Special functions for PV water pumps Maximum power tracking, pre-warning at weak light, auto wake up at strong light,
Pre-warning when full water, auto wake up at low water level,
Underload pre-warning and protection of water level sensor,
When pre-warning, the inverter is in stand-by
Environment Environment temperature -10℃~40℃ (environment temperature is among 40℃~50℃; please use it with derating)
Storage temperature -20℃~65℃
Environment humidity Less than 90 % R.H, not exceeding 90% R.H
Altitude, Vibration Below 1000 m, below 5.9m/s² (=0.6g)
Cooling method Forced cooling and natural air cooling
Enclosure rating IP 20
Warranty 18 months

Features

  • Solar pump inverter adopts advanced MPPT control technology, real-time detection of solar panels power voltage, tracking the highest voltage and current, efficiency is as high as 98%.
  • It can enter automatically to sleep mode when the intensity of sunlight is weak, as well as can exit the sleep mode when the intensity of sunlight is becoming strong.
  • Automatic sleep when on high-water level and automatic restart when on low-water level to realize automatic control through water level.
  • Multiple power supply design, power input can be solar energy photovoltaic DC power supply (DC 260~350V, DC 450~750V), can also be single phase or three phase AC power, simple wiring.
  • Smart operation, water level detection and operation panel to prevent overflow, dry pumping.
  • Protect itself in trouble and improve the reliability of whole system.
  • The bypass- AC source which runs automatically when the sun is Not sufficient or absent.

solar pump inverter wiring application

Tips: Suggestions on how to build solar pump system
1. Installation of solar panels: The installation position should be no shade or obstruction all year round, and there is sufficient direct sunlight. The installation angle with the ground can be determined by reference to the local latitude to ensure that the solar panels receives the max. amount of illumination.
2. Selection of solar water pump inverter: Manufacturers with good product quality should be selected. Solar variable frequency drive with high tracking accuracy and conversion efficiency should be chosen. Tracking accuracy and conversion efficiency will directly affect the pumping effect.
3. Antifreeze: When installing in high and cold areas, the antifreeze treatment of the pipeline system should be done. It is necessary to bury the pipeline below the freezing line. In winter, the water cannot be stored in the pipeline. Otherwise, the pipeline may be broken due to icing.

Products specifications
Attribute name Attribute value
User Manual

PDFSolar Pump Inverter User Manual
Existing reviews
Smart 0.4kW solar pump inverter
My dad likes the 0.4kW solar water pump inverter that I bought for him. It is very smart and has a built in maximum power point tracking control system. It can detect the water level and prevent the pump from overflowing or dry pumping and avoiding its damage.
Beamish Beamish | 3/9/2021 12:24 AM
Was this review helpful? Yes No (0/0)
Write your own review
  • Only registered users can write reviews
*
*
Bad
Excellent
Related products
12v 300w Inverter, 12v to 110v/220v Power Inverter

12v 300w Inverter, 12v to 110v/220v Power Inverter

SKU: ATO-M300W-12
Low price 12V power inverter delivers 300 watt continuous power and 600 watt peak power, converting 12V DC from battery or car lighter to AC 110V or 220V household power, with USB port and universal outlet for fast charging the electronic devices. This DC to AC inverter has multi-protection function and built-in cooling fan to protect your device from the damage.
Price: From $67.99

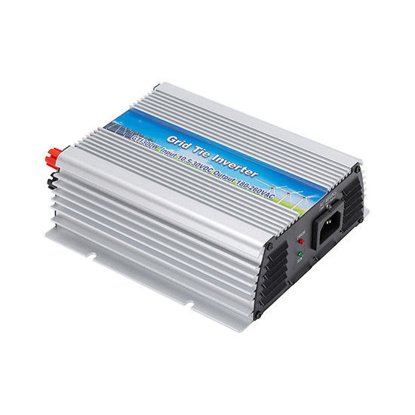

300W Solar Grid Tie Inverter, 24V/48V DC to 120V/230V AC
