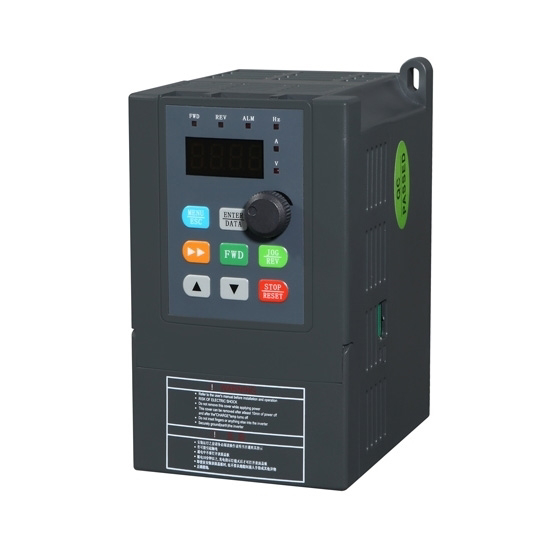

1.5 kW Single Phase to Three Phase Frequency Inverter

1.5 kW Single Phase to Three Phase Frequency Inverter

$183.16
| 4 review(s) | Add your review
1.5kw variable frequency inverter, converting single phase to 3 phase, rated current 7 A, input voltage 1 phase 220V AC ±15%. With RS485 communication mode, inverter single phase to three phase has an input frequency of 50Hz/ 60Hz, and speed regulation reaches 1:100. Come with IP20 enclosure protection, variable frequency drive single phase to 3 phase is widely applied in motor, pumps, and fans.
Free shipping
Delivery date: 3-10 days
SKU: GK3000-2S0015
increase decrease
Overview

1.5kW variable frequency drive single phase to 3 phase, 2 hp vfd inverter, apply for AC motor speed controls. IP20 enclosure protection, RS485 communication, working temperature (–10℃, 40℃), High accuracy, and good performance. The variable frequency drive inverters are very useful in some single-phase power supply situations, such as air conditioners, refrigerators, washing machines, and other electrical appliances in the home.


Feature

  1. The single phase to 3 phase inverter with RS485 communication mode, speed regulation reach 1:100, work at (–10℃, 40℃).
  2. The variable frequency drive single phase to 3 phase has high-frequency precision. Digital setting: max frequency ± 0.01%; Analog setting: max frequency ± 0.2%.
  3. Equipped with a digital display, the 1.5kw inverter can show real-time monitoring of the operation situation.
  4. With a cooling fan, the Interior PID controller of the frequency drive inverter is convenient for making a closed-loop system.

Details

Digital display

Digital Display

The electronic screen of the inverter from single phase to three phase displays clear fonts. The digital indicators of the variable frequency inverter will display the corresponding inverter operating conditions. It can monitor real-time inverter data changes, and improve safety performance.
Multi-function button

Multi-function Button

Equipped with multi-function keys, the 1.5kw single phase to 3 phase vfd has menu/exit, up/down keys, forward and stop/reset. The functional keys of the inverter converting single phase to three phase are very convenient for adjusting the operating 1.5kw frequency drive inverter's parameters and operating status at any time.



Cooling fan

Cooling Fan

The intelligent cooling fan installed in the 2hp variable frequency drive single phase to 3 phase introduces cooling air into the frequency inverter, which reduces the internal inverter component temperature, protects the devices from damage, and prolongs the vfd inverter's service life.





Applications

Medical equipment

Medical Equipment

Solar power generation

Solar Power Generation

Electric vehicle charging

   Electric Vehicle Charging

Office equipment

Office Equipment

Specs
Basics Model GK3000-2S0015
Capacity 1.5 kW (2 hp)
Shipping weight 2 kg
Dimension 142*85*113 mm
I/O Feature Rated current 7 A
Input voltage 1 phase 220V AC ±15%
Input frequency 50Hz/ 60Hz
Output voltage 3 phase AC 0~input voltage
Output frequency 0Hz~1000Hz
Over load capacity 150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control Feature Control mode V/F, Sensorless vector control (SVC), Speed sensor vector control (FVC)
Communication RS485
Speed regulation 1:100
Start torque 150% of rating torque at 1 Hz
Speed control accuracy ≤±0.5% of rating synchronous speed
Frequency precision Digital setting: max frequency x± 0.01%;
Analog setting: max frequency x± 0.2%
Frequency resolution Analog setting: 0.1% of max frequency;
Digital setting: 0.01Hz
Torque boost Automatic torque boost, manual torque boost 0.1%~30.0%
Interior PID controller Be convenient to make closed-loop system
Automatic energy save running Optimize V/F curve automatically based on the load to realize power save running
Automatic voltage regulation (AVR) Can keep constant output voltage when power source voltage varies.
Automatic current limiting Limit running current automatically to avoid frequent over-current which will cause trip
Environment Enclosure rating IP 20
Temperature –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
Humidity 5%-95%, without condensation
Altitude ≤1000m; VFD will be derated if above 1000m
Impingement and oscillation Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
Store environment –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight
FAQ

How to install a single-phase to three-phase inverter?

  • Prepare tools and materials: Make sure you have the tools and materials you need, such as screwdrivers, electrical tape, cable clamps, etc.
  • Choose an installation location: Choose an installation location that is dry, ventilated, and free of corrosive and flammable substances. The variable frequency inverter should be installed at a certain height from the ground to facilitate heat dissipation and maintenance.
  • Connect the input power supply: Connect the single-phase power cable correctly according to the wiring requirements of the inverter. Make sure the cable connections are secure and secure them with cable clamps to prevent loosening or poor contact.
  • Connect the output cable: According to the wiring requirements of the three-phase equipment that needs to be connected, select the appropriate cable and correctly connect it to the output end of the variable frequency drive inverter. Also, make sure the cable connections are secure and use cable clamps to secure the cables.
  • Grounding treatment: Ensure that the frequency inverter for home and three-phase equipment are properly grounded to improve the safety and stability of the system.
Write your own review
*
*
Existing reviews
Great performance vfd for motor and pump applications!
I've been using the 1.5 kW single-phase to three-phase frequency inverter for a few months now, and it's been fantastic. The speed control is super smooth, and it works perfectly with my motor and pump setup. The RS485 communication is also good, making integration easy. The IP20 protection gives me peace of mind knowing it’s safe for indoor use.
Todd Wesley | 9/25/2024 1:34 AM
Was this review helpful? Yes No (0/1)
Fantastic 1.5 kW single to three phase inverter
Fantastic product, installed on a 20" rockwell drill press, and the difference is so much better and the speed control is right. Love this 1.5 kW single to three phase inverter.
Seamus Davis | 5/25/2022 7:33 PM
Was this review helpful? Yes No (0/1)
Works great
It does just as advertised. This 1.5kw single phase to three phase frequency inverter works good and seems to be well made. Very satisfied with my purchase! Its conversion efficiency is very high. I will purchase this product again.
Wayne Smith | 11/14/2021 8:48 PM
Was this review helpful? Yes No (0/1)
1.5kW single phase to three phase frequency inverter has a fast conversion speed
I used the 1.5kW frequency inverter to convert from single phase to three phase. It has a very fast conversion speed and can quickly convert from single phase to three phase. I like this 1.5kW single phase to three phase frequency inverter very much.
Mephod Mephod | 5/17/2021 7:08 PM
Was this review helpful? Yes No (0/1)
