2.2 kW Solar Pump Inverter, DC/AC Input to 3ph AC Output

2.2 kW Solar Pump Inverter, DC/AC Input to 3ph AC Output

$389.69
| 1 review(s) | Add your review
Favorable price 2.2 kW 3 hp PV / solar pump inverter, DC supply & AC 220v 1-phase power supply switchable solar pump VFD, DC 200V-350V input to 3 phase AC 220/230/240V output, adopts max power point tracking to maximize power output from solar modules.
Free shipping
Delivery date: 6-12 days
SKU: GK330-2R2D-1B
increase decrease
  • Overview
  • Specifications
  • Reviews
Overview

High quality 2.2kW / 3 hp solar pump inverter, DC or single phase AC input to 0~input voltatge three phase AC output for submersible pump.

Specification

Basics Model GK330-2R2D-1B
Capacity 2.2 kW (3 hp)
Weight 2.4 kg
Product dimension 189.5*167*120 mm
Input Feature Input voltage DC 260~350V, recommend DC 300~350V for 3-phase 220/230/240V motor
Single phase AC 220V ±15%
Vmp/Voc voltage VMP≥280V, voc≤400V
Rated input current 23 A
Input frequency 47~63 Hz
Input power of solar panel About 1.5 times the solar pump inverter rated power
Output Feature Output voltage Three phase 0~rated input voltage
Rated output current 9.6 A
Output frequency 50Hz/ 60Hz (output 0-300Hz please contact us)
DC 270~320V corresponds to 0-50Hz for 220V AC
Control        Control mode SVPWM, SVC
Motor type Asynchronous motor
Speed ratio Asynchronous motor 1:100 (SVC)
Speed control accuracy ±0.2%(SVC)
Speed fluctuation ±0.3%(SVC)
Torque response <20ms (SVC)
Torque control accuracy 10%(SVC)
Starting torque 0.25 Hz / 150% (SVC)

Overload capability

150% of rated current: 1 minute
150% of rated current: 10 seconds
200% of rated current: 1 second

Running control Frequency setting method Digital settingAnalog setting
Pulse frequency setting
Multi-step speed running settingSimple PLC setting
PID setting, MODBUS communication setting
Shift between the set combination and set channel
Operation method Keyboard/ terminal/ communication
Auto-adjustment of voltage Keep a stable voltage automatically when the gird voltage transients
Fault protection Overcurrent, overvoltage, undervoltage, overheating, phase loss, overload, etc.
Special functions for PV water pumps Maximum power tracking, pre-warning at weak light, auto wake up at strong light,
Pre-warning when full water, auto wake up at low water level,
Underload pre-warning and protection of water level sensor,
When pre-warning, the inverter is in stand-by
Environment Environment temperature -10℃~40℃ (environment temperature is among 40℃~50℃; please use it with derating)
Storage temperature -20℃~65℃
Environment humidity Less than 90 % R.H, not exceeding 90% R.H
Altitude, Vibration Below 1000 m, below 5.9m/s² (=0.6g)
Cooling method Forced cooling and natural air cooling
Enclosure rating IP 20
Warranty 18 months

Features

  • Solar pump inverter adopts advanced MPPT control technology, real-time detection of solar panels power voltage, tracking the highest voltage and current, efficiency is as high as 98%.
  • It can enter automatically to sleep mode when the intensity of sunlight is weak, as well as can exit the sleep mode when the intensity of sunlight is becoming strong.
  • Automatic sleep when on high-water level and automatic restart when on low-water level to realize automatic control through water level.
  • Multiple power supply design, power input can be solar energy photovoltaic DC power supply (DC 260 ~ 350V, DC 450~750V), can also be single phase or three phase AC power, simple wiring.
  • Smart operation, water level detection and operation panel to prevent overflow, dry pumping.
  • Protect itself in trouble and improve the reliability of whole system.
  • The bypass- AC source which runs automatically when the sun is Not sufficient or absent.

solar pump inverter wiring application

Tips: Solar pump inverter selection
The solar water pump is not like the pump powered by the conventional AC grid. Because the electricity generated by the photovoltaic module is the direct current, it is required to invert the direct current into a three-phase alternating current for being used by the water pump through the inverter. Then, the solar pump inverter special for PV water pumps should be selected with high reliability and high system efficiency. The capacity of the solar pump inverter must meet the heavy-duty startup of the selected pump. If it is used the highland area, the capacity reduction caused by the high altitude must be taken into account, so as to ensure the long-term and reliable operation of the system. In normal conditions, the power of the solar pump inverter is required to be one stage higher than that of the water pump motor.

Specifications
Products specifications
Attribute name Attribute value
User Manual

PDFSolar Pump Inverter User Manual

Write your own review
*
*
Existing reviews
I like your 2.2kW solar pump inverter very much
I am very interested in your 2.2kW solar pump inverter. I like it very much, so I immediately bought one.
Freeb Freeb | 9/26/2021 1:29 AM
Was this review helpful? Yes No (0/0)
Related products
1.5 kW Solar Pump Inverter, DC/AC Input to 3ph AC Output

1.5 kW Solar Pump Inverter, DC/AC Input to 3ph AC Output

GK330-1R5D-1B
High efficiency 1.5 kW (2 hp) MPPT solar water pump inverter, input voltage from 260V DC to 350V DC (or single phase AC 220v) to drive three phase 220V AC water pump, automatically adjust the motor speed and the water flow according to the sunlight intensity.
$353.08
2.2 kW Three Phase Solar Pump Inverter

2.2 kW Three Phase Solar Pump Inverter

GK330-2R2D-3B
Cheap price 2.2 kW / 3 hp MPPT solar pump inverter (solar variable frequency drive), compatible with both AC & 350-750V DC input, and 3-phase AC output widely used in various kinds of AC pumps, soft start feature to prevent water hammer.
$317.94

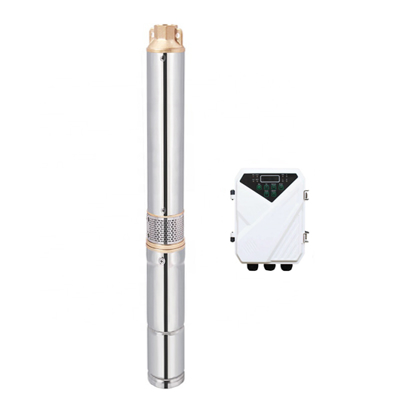

1100W 72V DC Solar Water Pump
