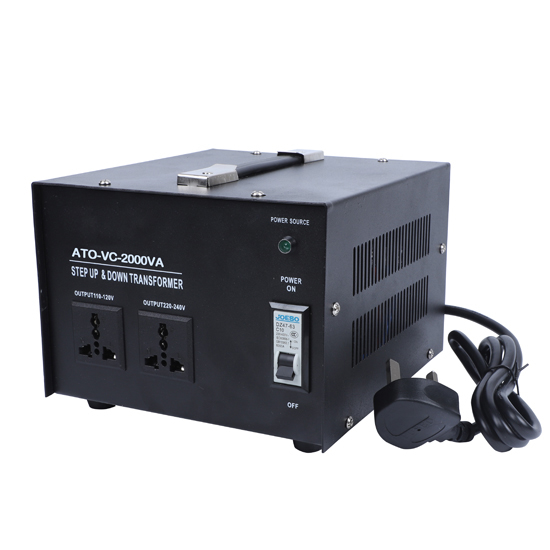

2000 Watt Voltage Converter, 110/120v to 220/240v

Why does the voltage converter trip?

1. Overload Protection: If the step up transformer 110v to 220v is supplying more current than it is rated for, it can overheat or become damaged. To prevent this, many converters have built-in overload protection that trips to shut down the system before damage occurs.
2. Overvoltage: If the input or output voltage exceeds the specified limits of the voltage converter 220v to 110v, the protection circuits will activate to prevent damage to the components. This can happen if there’s a spike in the input voltage or if the load requires more voltage than the converter can supply.
3. Overheating: Voltage converters often have thermal shutdown features that trip if the internal temperature exceeds a safe limit. Excessive heat can be caused by a high current load, poor ventilation, or inadequate cooling.
4. Short Circuit: If there’s a short circuit in the output (such as a fault in the connected load), the step down transformer 220v to 110v may trip its protection to prevent damage to the converter or the load. This is often accompanied by a current surge that the converter can't handle.
5. Input Voltage Out of Range: If the input voltage falls below or exceeds the operating range of the converter, it can cause it to trip. For instance, a step-down converter may trip if the input voltage is too low for it to step down efficiently.
