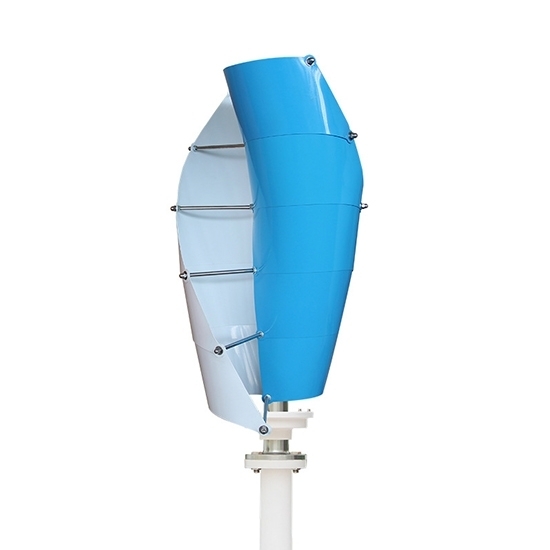

200W Spiral Wind Turbine, 12V/24V
200W Spiral Wind Turbine, 12V/24V
200W Spiral Wind Turbine, 12V/24V

200W Spiral Wind Turbine, 12V/24V

$757.46
| 0 review(s) | Add your review
Compact size spiral wind turbine with 200 watt rated power and 12V, 24V rated voltage can be selected. The rated wind speed of this spiral wind generator is 11m/s and the survival wind speed is 45m/s. This wind turbine with beautiful appearance, easy for installation, maintenance and repair. Spiral 200W wind turbine price is affordable, suitable for emergency power generation for home, outdoor, factory and garden lighting.
Free shipping
Delivery date: 15-20 days
SKU: ATO-SPWT-200X
*
increase decrease
  • Overview
  • Specs
  • FAQ
  • Reviews
Overview

A 200W spiral wind turbine generator is a compact, vertical-axis wind turbine designed to generate up to 200 watts of electricity. It features a spiral structure, which is highly efficient in capturing wind from any direction, making it suitable for urban, suburban, and remote areas with variable wind conditions. Spiral wind turbines are often lightweight, easy to install, and require minimal maintenance. They are ideal for eco-conscious homeowners, small businesses, or remote installations seeking a renewable energy solution to reduce reliance on conventional power sources and lower carbon footprints.


Features:

  • Low starting wind speed, beautiful appearance, and low running vibration.
  • Its installation design is very user-friendly, and it is easy to install, maintain and repair.
  • The wind turbine blades are precision-molded using a new process, with optimized aerodynamic profile and structural design, high wind energy utilization rate, which contributes to annual power generation.
  • The spiral vertical wind turbine uses a permanent magnet rotor generator, and its special stator design effectively reduces the generator resistance torque, ensure the performance of the whole system.

Details:

200w spiral wind turbine aluminum alloy blades

Quality Aluminum Alloy Blades

Aluminum alloys are lightweight yet strong, reducing the overall weight of the turbine while maintaining structural integrity. This allows the vertical wind turbine to start rotating at lower wind speeds, improving energy capture efficiency. The material resists corrosion and harsh weather and enhancing durability. Alloys have excellent fatigue resistance, ensuring the blades can withstand continuous rotational stress over many years without deforming or cracking.
Spiral wind turbine adopts maglev generator

Maglev Generator

The maglev system eliminates mechanical friction, resulting in higher efficiency and lower energy loss. It reduces wear and tear, extending the lifespan and lowering maintenance costs of 200 watt spiral wind turbine generator. Noise and vibration are significantly decreased, making it suitable for urban or residential areas. The system allows smoother rotation at low wind speeds, improving energy capture in variable conditions.
Low vibration 200w spiral wind turbine

Low Vibration

Low vibration improves operational stability, allowing the turbine to run smoothly even in variable wind conditions, which helps maintain consistent power output. A major benefit is reduced noise generation. Minimal vibration results in quieter operation, making spiral wind turbine more suitable for residential, urban, or environmentally sensitive areas. Stable, low-vibration operation also improves energy conversion efficiency.


Applications:

Spiral wind turbine for home

Home

Spiral wind turbine for rural areas

Rural Areas

Spiral wind turbine for farm

Farm

Spiral wind turbine for education and experiment

Education and Experiment

Specs
Model ATO-SWT-200X
Rated Power 200W
Max Power 220W
Rated Voltage 12/24V
Start-up Wind Speed 1.3m/s
Rated Wind Speed 11m/s
Survival Wind Speed 45m/s
Top Net Weight 14kg
Wind Wheel Diameter 0.48m
Blades Height 0.8m
Number of Blades 10
Blades Material Casting aluminum alloy
Generator Type Maglev generators
Control System Electromagnet
Speed Regulation Automatically adjust windward direction
Lubrication Way Lubrication grease
Working Temperature -40℃~80℃



Dimension:

200w spiral wind turbine dimension

Structure:

Spiral wind turbine structure

FAQ

What are the advantages of spiral wind turbine?

One key benefit is their ability to capture wind from any direction, eliminating the need for complex yaw mechanisms to align with the wind. This makes them particularly suitable for urban environments, where wind patterns are often unpredictable and multidirectional. Additionally, the compact and visually appealing design of spiral wind turbines allows for easier integration into buildings and urban landscapes, contributing to sustainable architecture without significant aesthetic disruption.

Another advantage of spiral wind turbines is their low operational noise, which makes them ideal for residential or noise-sensitive areas. Their aerodynamic helical shape reduces turbulence and vibration, leading to smoother operation and longer lifespan. These turbines also perform better at lower wind speeds compared to traditional horizontal axis wind turbines, enabling efficient energy generation in areas with less consistent wind conditions. Furthermore, the design is safer for wildlife, such as birds and bats, as the slower rotational speeds and enclosed structures reduce the risk of collision. Overall, spiral wind turbines are a versatile and environmentally friendly solution for harnessing wind energy in diverse settings.
