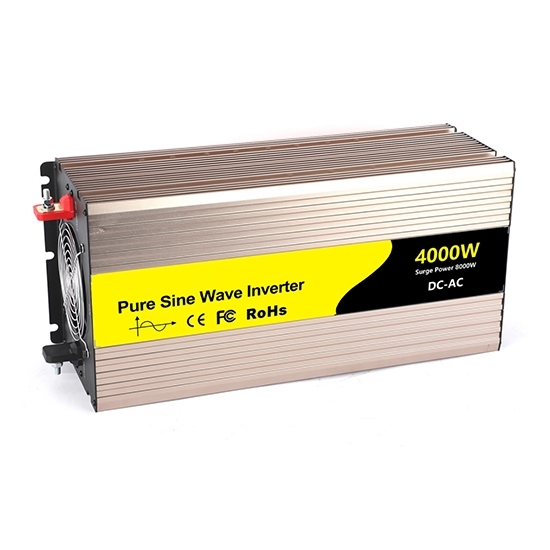

24V 4000 Watt Pure Sine Wave Inverter
24V 4000 Watt Pure Sine Wave Inverter 24V 4000 Watt Pure Sine Wave Inverter 24V 4000 Watt Pure Sine Wave Inverter 24V 4000 Watt Pure Sine Wave Inverter

24V 4000 Watt Pure Sine Wave Inverter

$826.45
$765.89
PRICE BREAKS - The more you buy, the more you save
Quantity
1+
5+
10+
50+
Discount
$765.89
$742.91
$735.25
$727.60
| 3 review(s) | Add your review
High efficiency 24 volt 4000 watt pure sine wave inverter with remote control, 24V DC to 110V, 120V, 220V, 230V, 240V AC output volatage, frequency 50Hz or 60Hz, ultra-wide input voltage range, high precision output, fully automatic voltage regulation.
Free shipping
Delivery date: 6-12 days
SKU: ATO-PSWI-40002
*
*
*
*
increase decrease
  • Overview
  • Specifications
  • Reviews
Overview

24V DC to 110V AC pure sine wave inverter on sale, with USB port, LCD display, 4000W power inverter pure sine wave convert 24V DC to 110V/240V.230V/100V, low noise, high efficiency.

Note: If the load is a refrigerator or similar to a refrigerator with a compressor, it is recommended that the power of the inverter is more than 10 times the power of the load.

Specificaton

Model ATO-PSWI-4000
Output Power 4000 Watt
Peak Power 8000 Watt
Input Voltage DC 24V
Outlet Type Universal socket *2, US Socket * 4
Terminal Output Interface *1
Input Voltage DC 24V (19-31V)
AC Output Voltage
1- Phase (L + N, G)= 110V, 230V ±5%
Do Not provide split phase configuration (L1, L2 + N, G)
No-load Current (less-than) ≤0.5A
Output Frequency 50Hz or 60Hz
Output Wave Pure Sine Wave
Waveform Distortion THD≤3%
USB Port 5V, 2.1A
Max Working Efficiency 95%
Undervoltage Protection First alarm (breaking alarm sound is one), LED red light flashes, voltage continues to decrease and shut down
Overload Protection Continuous alarm, LED flashing red, off
Over Temperature Protection First alarm (broken alarm sound is two), the temperature continues to rise, LED red light flashes and turns off
Short Circuit Protection Short circuit protection without breaking the circuit
Reverse protection Fuse blown
Undervoltage Alarm Range 21±0.5V
Undervoltage Protection Range 19±0.5V
Overvoltage Protection Range 31±0.5V
Undervoltage Recovery Range 24±0.5V
Overvoltage Recovery Range 28V±0.5V
Operating Temperature -10℃~ +50℃
Cooling Way Built-in intelligent cooling fan
Warranty 12 Months
Storage Temperature -30℃~ +70℃
Humidity ≤90%, non-condensing
Dimensions (W*H*D) 350mm*180mm*130mm
Gross Weight 9kg
Accessories 4 Pure copper connection wires + 6 spare fuses
Display Type LCD Display

Output Sockets (Optional)
Note: Inverter output voltage is 1-phase (L, N, G) only, Do Not provide split phase configuration (L1, L2 + N, G).

Power inverter sockets

Pure Sine Wave Inverter Remote Control & LCD Display (Optional)

  • Pure sine wave power inverter is available with remote control: wired control and wireless control.
  • LCD display shows input voltage, output voltage, output frequncy, battery capacity and power.

Pure sine wave power inverter remote control

Features

  • Intelligent integrated circuit control
    Unique front and rear dual soft start technology, CPU core, SPWM pulse width control technology, special constant power technology, anti-reverse diode technology.
  • Pure sine wave
    100% pure sine wave output, low distortion, waveform and main power line AC waveform are basically the same, equipment accuracy is small, low interference, low noise, strong load capacity, can meet any type of AC load, without damaging the load.
  • Imported parts
    The materials are imported components, and the panel uses double-sided circuit boards to ensure high quality and high performance of the products, and to match the excellent quality of the detailed molds.
  • Aluminum alloy casing
    The surface of the aluminum alloy shell is sprayed and anodized, which is small in size, elegant in appearance and easy to carry.
  • Working instructions intuitive working state
    When the inverter undervoltage/overvoltage, overload, overtemperature, short circuit, the LED indicator lights.
  • Multiple protection functions
  • Fault warning/buzzer alarm reminder
    When the inverter high voltage, low voltage, over temperature, overload protection function is turned on, once the protection of the inverter is triggered, the inverter disconnects the power supply and the load enters the protection mode for the first time, and issues an alarm through the buzzer alarm device. Make your use more secure.

Applications
Pure sine power inverter applications

Tips: 24V 12V Pure Sine Wave Inverter Which is Better?
The 12V or 24V pure sine wave inverter has the same output current and loss at the same power, which is a relatively small power inverter (within 2000W). However, many high-power inverters choose 24V because 24V batteries of the same capacity provide greater output current than 12V batteries. Especially for appliances with air conditioning or high-power inductive loads, a large current output is required at the moment of starting up. Below 2000W I suggest you choose a 12V pure sine wave inverter, so it is convenient to choose a battery. It is recommended to select a 24V inverter for inverters above 2000W.

Specifications
Products specifications
Attribute name Attribute value
User Manual

PDF Pure Sine Wave Inverter User Manual
