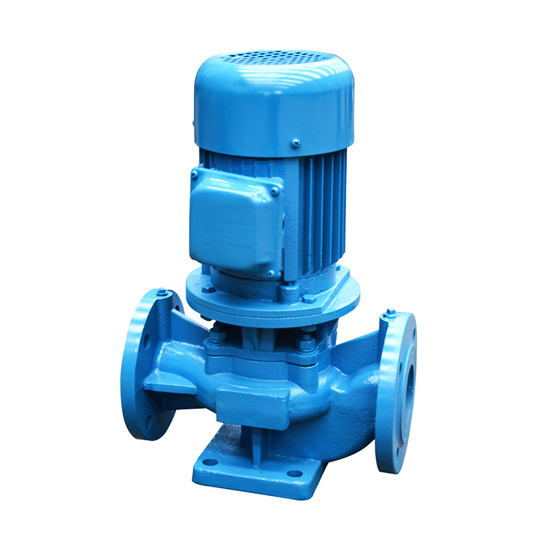

3 hp Vertical Centrifugal Pump

3 hp Vertical Centrifugal Pump

$1,225.73
| 3 review(s) | Add your review
3 hp vertical centrifugal pump is a non-self-priming centrifugal pump, has a maximum flow of 8.3m3/h (36.5 gpm), maximum head 33m (108ft), the same diameter of inlet and outlet 40mm. The low-price 3-phase centrifugal pump also has optional input voltage AC 220V/ 380V/ 440V to 480V and optional input frequency 50Hz/60Hz. It can be used in pipeline pressurization of production line, cooling tower water feeding, high-rise building pressurized water supply, fire water, and air condition system water supply.
Free shipping
Delivery date: 6-12 days
SKU: ATO-VCP-2200W
*
*
increase decrease
  • Overview
  • Reviews
Overview

3 hp vertical centrifugal pump with 8.3m3/h maximum flow, 33m maximum head, and 40mm diameter of inlet and outlet.

Features:

  1. The centrifugal pump has a vertical structure. The diameter of the inlet and outlet are the same. The inlet and outlet are on the same center line so that the vertical centrifugal pump can be installed in the pipeline like a valve. If a protective cover is added, it can be used in the open air.
  2. It is easy to install and maintain. There is no need to dismantle the pipeline system, just lift off the conjunction flat nut of the vertical pump. Then, all the rotor parts can be taken out.
  3. A vertical centrifugal pump can operate in series or parallel connection according to the requirements of flow and head.
  4. A vertical pump can be installed vertically or horizontally according to the requirement of the pipeline system.

Specifications:

Model ATO-VCP-40-160
Weight 75kg
Size 320*270*490mm
Power 3 hp (2.2kW)
Phase 3 phase
Input voltage * AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V
Input frequency * 50Hz, 60Hz
Flow (min. flow to max. flow) 4.4m3/h (19.4 gpm, American system) 6.3m3/h (27.7 gpm, American system) 8.3m3/h (36.5 gpm, American system)
Head (max. head to min. head) 33m (108ft) 32m (105ft) 30m (98ft)
Efficiency 35% 40% 40%
Inlet diameter 40mm (1-1/2 inch)
Outlet diameter 40mm (1-1/2 inch)
Installation mode Vertical type or horizontal type
Nominal diameter of impeller 160mm
Pump type Booster pump
Number of stages Single stage
Motor type Y/Y2 series motor
Motor speed 2900rpm
Impeller material 304/316 stainless steel
Seal material 304 stainless steel, tungsten carbide, fluorine rubber
Inlet max. pressure 1MPa (145 psi)
(NPSH)r 2.3m
Usage Water or liquids compatible with pump component materials.
1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm.
2. The temperature should be lower than 60℃.
Environment Temperature: <40℃, humidity: <95%, altitude<1000m
Warranty 12 months



Vertical centrifugal pump dimension (unit: mm):

Boundary dimension Installation dimension Flange dimension
L B H C1*B1 A C2*B2 4-Φd1 ΦD ΦD1 n-Φd
320 270 490 100*150 90 60*110 4-Φ14 Φ150 Φ110 4-Φ18

vertical centrifugal pump dimensional drawing



Tips: Analysis of the low operating efficiency of the centrifugal pump

The loss of liquid flowing through the impeller includes mechanical losses, flow losses, and leakage losses, and the corresponding efficiency of the centrifugal pump is divided into mechanical efficiency, hydraulic efficiency, and volumetric efficiency. The mechanical loss includes wheel dropping losses consumed because of the friction between the impeller wheel cap, the outer side, and the liquid, the friction losses between the bearing and stuffing box, and the leakage losses. The leakage losses include the leakage losses at the impeller sealing ring site and interstage and axial force balance mechanism.
Most of its losses are converted into heat, which shall be absorbed by the fluid afterwards.
Low pipeline efficiency: When the conveyed liquid has changes in flow rate or head, the most common treatment means is to regulate the valve. Although this method is convenient, it still has many disadvantages because it will bring great losses to the pipeline resistance, thus enabling the centrifugal pump to operate under the low-efficiency status.

Write your own review
*
*
Existing reviews
Satisfied with this 3hp vertical centrifugal pump
I finally got the right centrifugal pump. This one is of better quality than any I've ever bought. I am satisfied that the 3 hp vertical centrifugal pump does not make a lot of noise when it is working. Hopefully it will last a long time.
Christy Pyle | 10/16/2024 12:57 AM
Was this review helpful? Yes No (0/0)
Quality vertical centrifugal pump
Exceeded my expectations. The quality 3 hp vertical centrifugal pump is easy to install and operate and is a reliable and efficient pump that is perfect for my water treatment needs.
Emily Grace | 3/28/2023 3:17 AM
Was this review helpful? Yes No (0/0)
Use time of 3hp vertical centrifugal pump
Can this 3hp vertical centrifugal pump last a long time?
Rmoorejr Rmoorejr | 9/14/2021 1:51 AM
Was this review helpful? Yes No (0/0)
Responded by inverter.com
It depends on how you use it.
