600W 72V DC Solar Water Pump
600W 72V DC Solar Water Pump
600W 72V DC Solar Water Pump
600W 72V DC Solar Water Pump

600W 72V DC Solar Water Pump

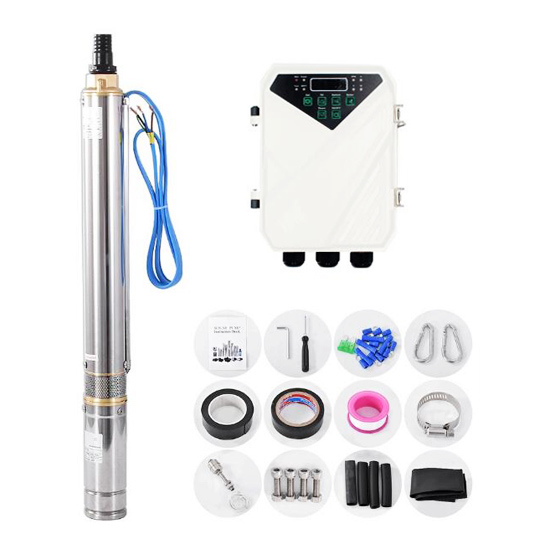

72 volt solar water pump has single-suction plastic impeller, internal brushless DC motor, special digital DC controller, maximum head 42~80m (135~260ft), maximum flow 800~1585 gallons per hour, 3 inch/4 inch inlet diameter and 1.25 inch outlet diameter. 600 watt solar irrigation pump can be used for water tank, water feature, pond or farms.
1 review(s) | Add your review
SKU: ATO-SWP-72V600
Free shipping
Delivery date: 6-12 days
*
$764.79
PRICE BREAKS - The more you buy, the more you save
Quantity 5+ 10+ 50+
Discount 3% OFF 4% OFF 5% OFF
Products specifications
Attribute name Attribute value
User Manual

PDF Solar Water Pump External DC Cotroller User Manual

600W solar water pump with DC controller, 72V working voltage, 800~1585 gph max. flow, 42~80m max. head.

Specifications:

Basics SKU ATO-SWP-72V600
Shipping weight 15kg
Cable length 2m
Package included 1 * Solar water pump
1 * DC controller
1 * Stainless steel float switch (water level sensor for the tank)
1 * Pump outlet joint connector
1 * Splice kit for cable join
1 * Splice kit for waterproof
1 * User manual
Warranty 2 years
Solar water pump features Power 600W
Voltage 72V DC
Max. flow * 3.0m3/h (800 gph, American system) 6.0m3/h (1585 gph, American system)
Max. head * 80m (260ft) 42m (135ft)
Length 60cm 50cm
Inlet diameter 3 inch 4 inch
Outlet diameter 1.25 inch 1.25 inch
Model 3DPC3-80-72-600 4DPC6-42-72-600
Impeller structure Single-suction plastic impeller
Internal motor Brushless DC motor
Speed 4000rpm
Material of shaft 304 stainless steel
Material of outlet/connector/oil cylinder Brass
No water protection function The pump stops working automatically when there is no water in the well, and it will automatically restart working 30 minutes later.
Required open circuit voltage (VOC) of solar panel ＜150V DC
Required power of solar panel ≥1.3*pump power
Efficiency 45%
Controller features Model DF-72
Best MPPT voltage range 90-120V DC
Max. input current 15A
Working temperature -15~+60℃ (5~140℉)
Display LED display can show power, voltage, current and speed value.
Functions Automatic charging (for battery)
Variable frequency
Automatic power ON/OFF
Soft start
High voltage/low voltage/over-current/high temperature protection
Protection class IP65

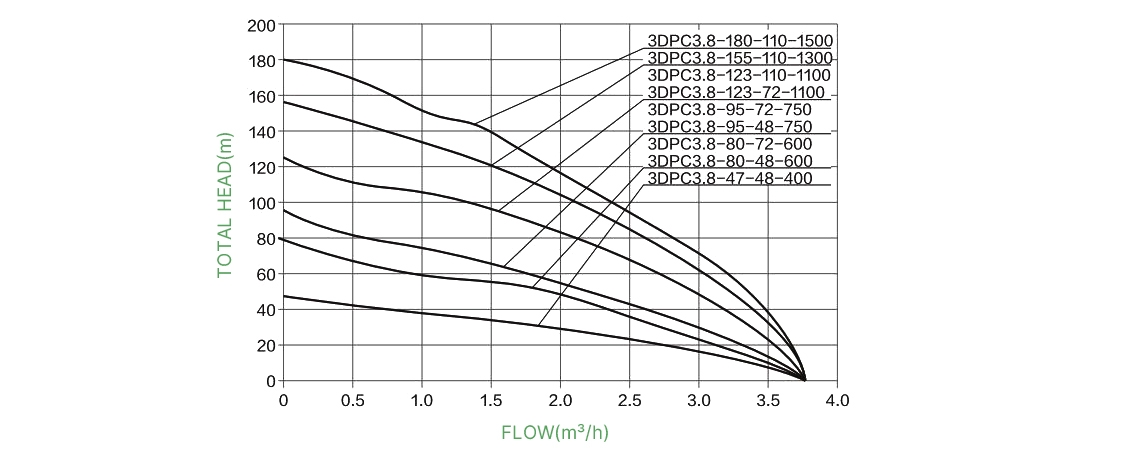

600W 72V DC solar water pump performance curves:
Max. Flow: 3.0m3/h, Max. Head: 80m, Model: 3DPC3-80-72-600
600W 72V DC 3 inch solar water pump high head performance curves
Max. Flow: 6.0m3/h, Max. Head: 42m, Model: 4DPC6-42-72-600
600W 72V DC 4 inch solar water pump performance curves
Solar water pump installation drawing:
600W 72V DC solar water pump installation drawing
Solar water pump wiring diagram:
600W 72V DC solar water pump wiring diagram

Tips: How to calculate the head of solar water pump for water tank?
When we design a solar water pumping system for water tank or home use, we should confirm the head of solar water pump. If the pump head is not enough, the water flow will become small or even the water can not be pumped to the water tank.
In general, there are 3 distance should be confirmed.
h1: the perpendicular distance between water tank and ground.
h2: the perpendicular distance between ground and solar water pump (in the well).
h3: the horizontal distance between water tank and solar water pump (in the well).
Then, the pump head H can be calculated as follows:
H=h1+h2+h3/10
For example, the height of water tank is 12m, the solar water pump is placed at a depth of 5m, and the horizontal distance between water tank and solar water pump is 10m.
According to the formula, H=h1+h2+h3/10=12+5+10/10=18m.

600W solar water pump with DC controller, 72V working voltage, 800~1585 gph max. flow, 42~80m max. head.

Specifications:

Basics SKU ATO-SWP-72V600
Shipping weight 15kg
Cable length 2m
Package included 1 * Solar water pump
1 * DC controller
1 * Stainless steel float switch (water level sensor for the tank)
1 * Pump outlet joint connector
1 * Splice kit for cable join
1 * Splice kit for waterproof
1 * User manual
Warranty 2 years
Solar water pump features Power 600W
Voltage 72V DC
Max. flow * 3.0m3/h (800 gph, American system) 6.0m3/h (1585 gph, American system)
Max. head * 80m (260ft) 42m (135ft)
Length 60cm 50cm
Inlet diameter 3 inch 4 inch
Outlet diameter 1.25 inch 1.25 inch
Model 3DPC3-80-72-600 4DPC6-42-72-600
Impeller structure Single-suction plastic impeller
Internal motor Brushless DC motor
Speed 4000rpm
Material of shaft 304 stainless steel
Material of outlet/connector/oil cylinder Brass
No water protection function The pump stops working automatically when there is no water in the well, and it will automatically restart working 30 minutes later.
Required open circuit voltage (VOC) of solar panel ＜150V DC
Required power of solar panel ≥1.3*pump power
Efficiency 45%
Controller features Model DF-72
Best MPPT voltage range 90-120V DC
Max. input current 15A
Working temperature -15~+60℃ (5~140℉)
Display LED display can show power, voltage, current and speed value.
Functions Automatic charging (for battery)
Variable frequency
Automatic power ON/OFF
Soft start
High voltage/low voltage/over-current/high temperature protection
Protection class IP65

600W 72V DC solar water pump performance curves:
Max. Flow: 3.0m3/h, Max. Head: 80m, Model: 3DPC3-80-72-600
600W 72V DC 3 inch solar water pump high head performance curves
Max. Flow: 6.0m3/h, Max. Head: 42m, Model: 4DPC6-42-72-600
600W 72V DC 4 inch solar water pump performance curves
Solar water pump installation drawing:
600W 72V DC solar water pump installation drawing
Solar water pump wiring diagram:
600W 72V DC solar water pump wiring diagram

Tips: How to calculate the head of solar water pump for water tank?
When we design a solar water pumping system for water tank or home use, we should confirm the head of solar water pump. If the pump head is not enough, the water flow will become small or even the water can not be pumped to the water tank.
In general, there are 3 distance should be confirmed.
h1: the perpendicular distance between water tank and ground.
h2: the perpendicular distance between ground and solar water pump (in the well).
h3: the horizontal distance between water tank and solar water pump (in the well).
Then, the pump head H can be calculated as follows:
H=h1+h2+h3/10
For example, the height of water tank is 12m, the solar water pump is placed at a depth of 5m, and the horizontal distance between water tank and solar water pump is 10m.
According to the formula, H=h1+h2+h3/10=12+5+10/10=18m.
