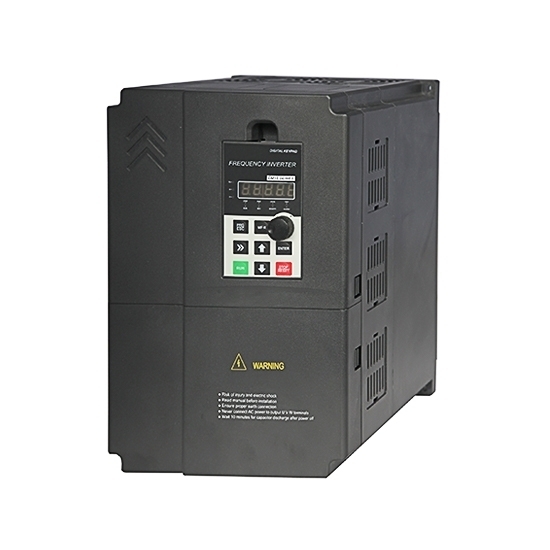

0.75 kW Single Phase to Three Phase Solar Pump Inverter, AC 220V

This 0.75kW single-phase to three-phase solar pump inverter converts DC solar power or 220V single-phase AC input into 220V three-phase AC output, enabling standard three-phase pumps to run on solar or single-phase grid power. The built-in MPPT controller tracks the optimal power point of the PV array (recommended range 250~400V) for up to 98% system efficiency. Power factor >0.99, output frequency 0~50/60Hz, no condensation at humidity <95% RH. RS485 communication allows easy integration and remote monitoring. Suited for agricultural irrigation, desert greening, and small-scale water supply systems.

Features

1. High-Efficiency MPPT Control: This 0.75kW pump inverter utilizes advanced MPPT technology to track the optimal operating point of solar panels in real time, optimizing both voltage and current for system efficiency of up to 98%.
2. Smart Sleep Mode: Automatically adjusts its operation based on sunlight intensity. The water pump inverter enters sleep mode during low sunlight to save energy and quickly resumes operation when sunlight increases, maximizing solar resource utilization.
3. Water Level Adaptive Control: Integrated with water level sensing, the VFD solar inverter automatically stops when the water level is high to prevent overflow and restarts when the water level is low to avoid dry running, enabling unattended automated management.
4. Intelligent User Interface: The 220V solar pumping inverter features an intuitive control panel with support for water level detection and smart control, ensuring user-friendly and safe operation while preventing equipment damage.
5. Fault Self-Protection: Built-in multiple protection mechanisms immediately activate self-protection in case of faults, ensuring stable system operation and enhancing overall system reliability.
6. AC Bypass Backup: Includes an integrated AC bypass function. During insufficient or no sunlight periods, the 3-phase solar pump controller automatically switches to an AC power supply, ensuring uninterrupted water pumping.

Details

Air Vents

Good-quality 0.75kW solar water pump inverter has high-density ventilation ports for excellent cooling, ensuring stable operation in high-temperature environments. The powerful DC heat sink operates quietly, effectively reducing the heat generated during inverter use, with intelligent start-stop control. An independent air duct design establishes a completely sealed environment, preventing dust and moisture from reaching the circuit board area.

Digital Keypad

The solar pump inverter has an at-a-glance numeric digital keypad that can easily control the inverter's start, stop, as well as accelerate functions. Anyone who uses it can set the working parameters of the inverter and adjust the output frequency to control the running speed of the solar pump through simple key operation. The numeric keypad design is intuitive, making the operation of the solar pump system more efficient and convenient.

Rugged Casing

The superior-performance 0.75 kW solar pump inverter is compact, and the sturdy shell has good anti-fall, flame-retardant, anti-aging, and corrosion-resistant features, effectively isolating moisture and dust, ensuring stable operation, and is safe and reliable. It not only protects the circuit and electronic components inside the pump inverter but also ensures safety, stability, and reliability, effectively protecting and extending the product life.

Applications

Agricultural Irrigation

Industrial Applications

Farm Livestock

Pool Water Supply

Solar Pump Inverter Working System
