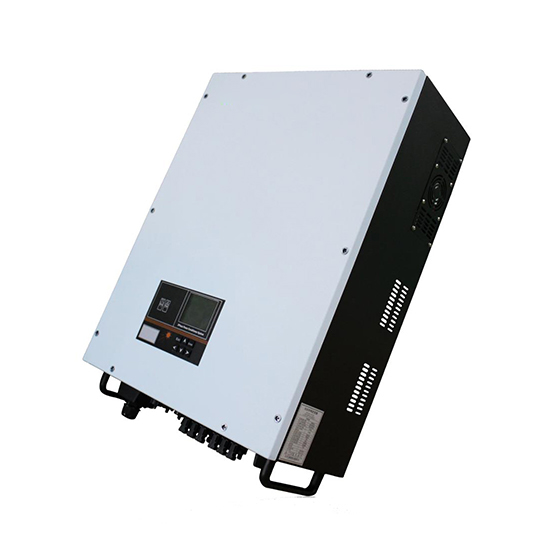

10000 Watt Three Phase Grid Tie Solar Inverter

3-phase 4 line grid tie solar inverter with cheap price, 10000 watt power capacity, works at 50Hz/60Hz low frequency, 2 independent MPPT trackers guarantee optimal energy production for every use, DC 200-820 volt wide input voltage range, the maximum converssion efficiency of 98%.
SKU: ATO-GTI-3P10k
Delivery date: 6-12 days
*
$2,095.38
Products specifications
Attribute name Attribute value
Installation Guide

PDFThree-phase Grid Tie Inverter Installation Guide

User Manual

PDFThree-phase Grid Tie Inverter User Manual

10kW on grid tie inverter on sales, pure sine wave output, wide input voltage range, maximum DC input voltage to 850V, rated output voltage can be customized with three phase 240V/ 380V/ 480V AC. High efficiency MPPT transformerless solar inverter designed for grid tied PV system.

Features

  • Can be applied to various fields, mainly for solar power, wind power, battery power, and scenery lamp power.
  • Strong IP65 protection, completed sealed cover suitable for harsh environment.
  • Advanced MPPT tracking technology, wide MPPT voltage range.
  • No isolation transformer H6 full-bridge configuration, highest efficiency reach 98%.
  • Over voltage, short circuit, overload, overheating, anti-islanding protection etc.
  • Multiple inverters can be operated in parallel.
  • LCD display, convenient for user to monitor main parameters.
  • Support various communication modes.

Parameter List

MODEL ATO-LTC10000
DC INPUT Max. DC Input Power 10500 watt
Max. DC Input Voltage 850V DC
Max. DC Input Current 30A
MPPT Tracking Voltage Range 200-820V
MPPT Tracking Number / Each Input String Number 1
Power ON / OFF Voltage 200V / 300V
Input Terminal MC4
AC OUTPUT Power 10000W
Output Voltage Default AC 3-phase 380V±5%, (Optional: 208V, 240V, 460V, 480V with ±5% tolerance)
Frequency 50Hz / 60Hz
Phase 3 phase 4 line (3L+N+PE)
Power Factor 0.9
Maximum Current 15A
Current THD At rated power and in the sine wave <3.5%
Max. Efficiency 98%
MPPT Efficiency 99.5%
Output Terminal Connect terminals
STRUCTURE Protection Degree IP65
Cooling Method Cooling fan
Topology No transformer
Noise <50db
Data Interfaces RS 485C / RS232 (Standard) / WiFi Module (Optional)
Isolation Type Non-isolated
Standby Power Consumption <5W
Display LCD dispaly
DC Switch Integration
AC Switch Integration
Protection Functions DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi,
Flexible solar panel
ENVIRONMENT Operation Temperature Air Flow, -10℃~40℃
Storage Temperature -20℃~60℃
Relative Humidity 0~100%
Altitude 2000m, max 3000m
OTHERS Size (W*H*D) 440*610*260mm
Weight 56kg
Certificate CE / G83 / IEC / TUV / SAA
Warranty 5 years

Tips before buying solar PV system

Here we provide very useful nine suggestions you have to consider before buying your solar photovoltaic system, as following:

1. Do internet solar research, and speak to your friends who already installed the solar system. The goal of such searches is to discover good brands, prices in the market. Usually cheap prices correspond to lower quality, but keep in mind that your solar system should last for 25 years in order to get a good return on investment, so good quality is our first consideration.

2. Choose the high quality and the high efficiency solar inverter, as the inverter is an essential and crucial part of the solar system, the motor efficient it is, the better energy conversion we get. We recommend to choose the best brand with long warranty period.

3. Don’t make a decision based on internet reviews, as these reviews can be easily manipulated.

4. Check your roof size to know how big the solar system will fit. You can use roof size calculators existing free of charge on the internet, and make sure to have reserve space for your future needs "batteries for night time use, and charging your electric car".

5. Estimate your budget, as with solar photovoltaic systems quality and size change, the prices change as well. A rule of thumb you can follow for good quality brands in residential solar system up to 8-10kW capacity. You can consider the KW price to be in the range 1200USD to 1500USD, and of course you will find cheaper prices like 500-700USD / KW in the market, but those are lower grade, less output production, shorter life time, and we recommend to not buy such brands, in addition to that, good brand with high performance solar system will increase your property value.

10kW on grid tie inverter on sales, pure sine wave output, wide input voltage range, maximum DC input voltage to 850V, rated output voltage can be customized with three phase 240V/ 380V/ 480V AC. High efficiency MPPT transformerless solar inverter designed for grid tied PV system.

Features

  • Can be applied to various fields, mainly for solar power, wind power, battery power, and scenery lamp power.
  • Strong IP65 protection, completed sealed cover suitable for harsh environment.
  • Advanced MPPT tracking technology, wide MPPT voltage range.
  • No isolation transformer H6 full-bridge configuration, highest efficiency reach 98%.
  • Over voltage, short circuit, overload, overheating, anti-islanding protection etc.
  • Multiple inverters can be operated in parallel.
  • LCD display, convenient for user to monitor main parameters.
  • Support various communication modes.

Parameter List

MODEL ATO-LTC10000
DC INPUT Max. DC Input Power 10500 watt
Max. DC Input Voltage 850V DC
Max. DC Input Current 30A
MPPT Tracking Voltage Range 200-820V
MPPT Tracking Number / Each Input String Number 1
Power ON / OFF Voltage 200V / 300V
Input Terminal MC4
AC OUTPUT Power 10000W
Output Voltage Default AC 3-phase 380V±5%, (Optional: 208V, 240V, 460V, 480V with ±5% tolerance)
Frequency 50Hz / 60Hz
Phase 3 phase 4 line (3L+N+PE)
Power Factor 0.9
Maximum Current 15A
Current THD At rated power and in the sine wave <3.5%
Max. Efficiency 98%
MPPT Efficiency 99.5%
Output Terminal Connect terminals
STRUCTURE Protection Degree IP65
Cooling Method Cooling fan
Topology No transformer
Noise <50db
Data Interfaces RS 485C / RS232 (Standard) / WiFi Module (Optional)
Isolation Type Non-isolated
Standby Power Consumption <5W
Display LCD dispaly
DC Switch Integration
AC Switch Integration
Protection Functions DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi,
Flexible solar panel
ENVIRONMENT Operation Temperature Air Flow, -10℃~40℃
Storage Temperature -20℃~60℃
Relative Humidity 0~100%
Altitude 2000m, max 3000m
OTHERS Size (W*H*D) 440*610*260mm
Weight 56kg
Certificate CE / G83 / IEC / TUV / SAA
Warranty 5 years

Tips before buying solar PV system

Here we provide very useful nine suggestions you have to consider before buying your solar photovoltaic system, as following:

1. Do internet solar research, and speak to your friends who already installed the solar system. The goal of such searches is to discover good brands, prices in the market. Usually cheap prices correspond to lower quality, but keep in mind that your solar system should last for 25 years in order to get a good return on investment, so good quality is our first consideration.

2. Choose the high quality and the high efficiency solar inverter, as the inverter is an essential and crucial part of the solar system, the motor efficient it is, the better energy conversion we get. We recommend to choose the best brand with long warranty period.

3. Don’t make a decision based on internet reviews, as these reviews can be easily manipulated.

4. Check your roof size to know how big the solar system will fit. You can use roof size calculators existing free of charge on the internet, and make sure to have reserve space for your future needs "batteries for night time use, and charging your electric car".

5. Estimate your budget, as with solar photovoltaic systems quality and size change, the prices change as well. A rule of thumb you can follow for good quality brands in residential solar system up to 8-10kW capacity. You can consider the KW price to be in the range 1200USD to 1500USD, and of course you will find cheaper prices like 500-700USD / KW in the market, but those are lower grade, less output production, shorter life time, and we recommend to not buy such brands, in addition to that, good brand with high performance solar system will increase your property value.
