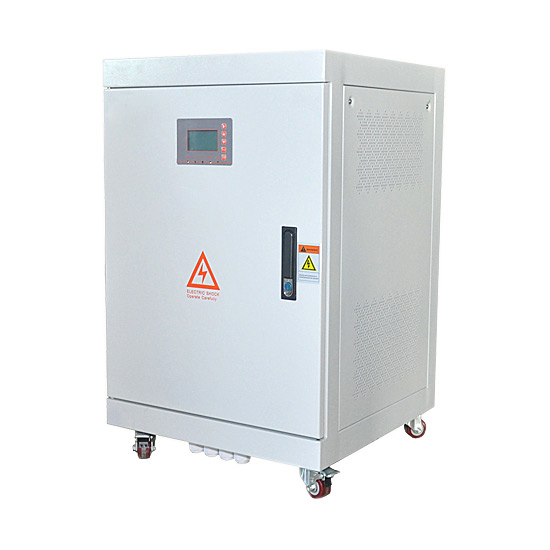

12kW Pure Sine Wave Off Grid Solar Inverter

12000 watt without battery 3 phase off grid inverter with MPPT function, two kinds of start mode: step-down voltage start and variable frequency start. Low frequency pure sine wave inverter for solar power system, converts 120V/ 192V DC to 208V/ 400V/ 480V AC.

Be the first to review this product

SKU: ATO-OGI-12kW

Free shipping

Delivery date: 6-20 days

DC Input Voltage *
AC Output Voltage *
Output Frequency *
Add AC Input *
Add RS485 Interface *

$6,160.46

Qty:

Products specifications

Catalog	Off Grid Solar Inverter Catalog

High quality sine wave AC output off grid solar power inverter, no battery storage system, in the sunshine, the solar panels generate energy through the off grid inverter convert DC power to AC power.

Features

Two kinds of start mode: Step-down voltage start and variable frequency start. Customers can set start mode according to the type of their load.
The output voltage can be set between -40 % to +20 % of rated voltage. And the output voltage is very accuracy ±1%.
Pure sine wave output. With good dynamic response less than 50MS, waveform distortion rate smaller, higher conversion efficiency and stable output voltage.
Adopts black pure aluminum radiator, which confirms the best radiating performance.
Powerful data display function. LCD can display the DC input voltage, output frequency, phase voltage, phase current, AC bypass input voltage, power consumption (kWH), time and date, temperature, fault code display.
Wide input voltage can work without battery and solar charge controller, save more cost and with MPPT wide voltage input function, maximum use of solar power.

Parameter List

Model		ATO-OGI-12kW
Size (DWH)		550550760mm
Weight		165kg
Certificate		CE, UL, SA, SAA, VDE
Warranty period		12 months
AC Input	Rated voltage	AC input voltage is the same value as the AC output
DC Input	Rated voltage	96V/ 108V/ 120V/ 192V DC (can be customized)
	Rated current	63A @192V DC
AC Output	Rated output power	12kW
	Output waveform	Pure sine wave
	Rated voltage	208V/ 220V/ 230V/ 240V/ 380V/ 400V/ 415V/ 460V/ 480V (optional)
	Phase	3 phase 4 wire+PE wire (single phase/ split phase can be customized, please contact us by email)
	Rated phase current	18A @380V AC
	Frequency	50Hz or 60Hz
	Power factor	>0.99
	Overload ability	150%, 5 seconds
	Efficiency	>93%
	Waveform distortion rate	THD<3%
	Dynamic response (0 to 100% load)	5%, ≤50ms
	Display	LCD
	Running mode	Working continously
	Electrical insulation properties	2000Vac, 1min
	Communication interface	RS485 (optional), it can remote control the start/stop of the inverter and convey the data as below: 1. Input DC current 2. Input DC voltage 3. Output AC current 4. Output AC voltage 5. Power consumption (kWH) 6. Some fault information
Protection Function	Protection	Input reverse polarity, under voltage, over-voltage, output over-current, short circuit, overheating
	Colling method	Fan-cooled
	Short-circuit protection	No automatic recovery, need to restart the machine
Working Environment	Noise (1 meter）	≤50dB
	Degree of protection	IP20 (indoor)
	Working altitude	≤2000m
	Working temperature	-25~+55℃
	Relative humidty	0~90%, non-condensing
Note	The above parameters are for reference only, can be customized according to customer's requirement!

Tips: The off grid solar inverter LCD has no display, how to solve this problem?

Fault analysis:

There is no battery current input. The inverter LCD power source is supplied by the battery.

Possible reason:

A: The battery voltage is not enough. When the battery is just delivered out of the factory, it is usually fully charged. However, if the battery is not used for a long time, it will be slowly discharged (self-discharge). The off-grid system has the voltage of 12V, 24V, 48V, 96V and so on. Some applications require multiple batteries in series to meet the system voltage. If the cable is not well connected, the battery voltage will be insufficient.

B: The battery terminal is reversely connected. The battery terminal has the positive and negative poles. Generally, the red is connected with the positive pole and the black is connected with the negative pole.

C: The DC switch is not connected or the switch has a fault.

Solution:

A: If the battery voltage is not enough, the system can't work and the solar energy can't charge the battery. Then, it is required to go to another place to charge the battery to over 30%.

B: If it is a problem of the circuit, please measure the voltage of each battery with a multimeter voltage gear. When the voltage is normal, the total voltage is the sum of various battery voltages. If there is no voltage, check whether the DC switch, terminal block, cable connector and so on are normal one by one.

C: If the battery voltage is normal, the wiring is normal and the switch is also turned on, but the inverter still has no display, it may be the problem of the inverter. Then, it is required to notify the manufacturer for maintenance.

Read more related blog: PV Off-Grid Solar System Troubleshooting
