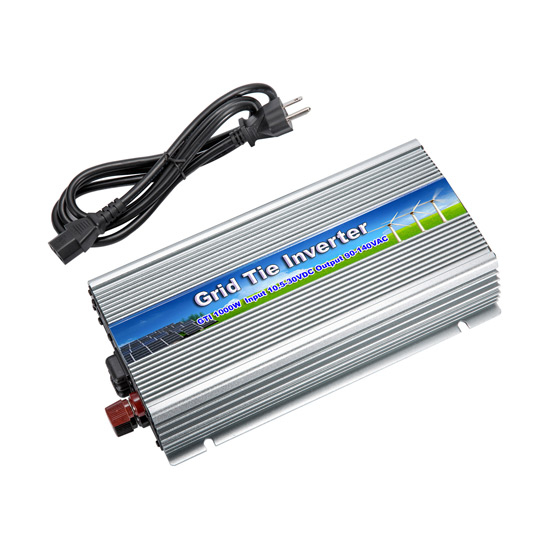

1000W Solar Grid Tie Inverter, 12V/24V DC to 110V/220V AC
1000W pure sine wave inverter, solar on grid inverter with MPPT, APL functions, converts 12V/ 24V DC to 110V AC 50Hz/ 60Hz automatically, 48V DC to 220V AC inverter is available. Simply connect the solar panel directly to the grid-tie inverter, no need to connect the battery again.
Free shipping
Delivery date:
6-12 days
-
*
-
-
*
-
Cheap price 1kW solar grid tie inverter, 12V/ 24V/ 48V DC to 110/ 220V AC for solar panel system using SPWM directly to produce pure sine output. Creative MPPT tech makes efficiency higher than 99%.
1000W Solar Grid Tie Inverter Features
- High performance maximum power point tracking (MPPT)
- Directly connected to the solar panels (do not need to connect the battery)
- AC 0 angle with high precision auto-detection
- Synchronous high-frequency modulation
- Use SPWM directly to make pure sine wave output
- Power automatically locked (APL), make the output power more stable
- Automatically adapt to different load power factor
- Automatically shut down when the power output of a fault
1000W Solar Grid Tie Inverter Parameter List
| Grid tie inverter model |
ATO-GTI-1000 |
| Recommend using solar panels |
1150 Watt |
| DC maximum input power |
1100 Watt |
| DC maximum voltage |
30.2V DC |
| DC voltage |
12V/ 24V/ 48V DC, range: 10.5V-30V DC/ 20V-50V DC |
| Recommend PV Vmpp |
18V (10.5V-30V DC) / 28-40V (20V-50V DC) |
| AC output power |
1000W |
| Anti-voltage protection |
Fuse |
| AC standard voltage |
110V/ 220V AC, range: 90-140V AC/ 180-260V AC (*Note: Inverter output is single phase (L, N, G) one hot line only) |
| AC frequency range |
55-63Hz / 45-53Hz |
| Output current total harmonic distortion |
THDI<5% |
| Phase differnce |
<1% |
| Islanding protection |
VAC, FAC |
| Output short circuit protection |
Current-limiting |
| Show |
LED |
| Installation |
Wall hanging |
| Cooling method |
Fan |
| Standby power consumption |
<2W |
| Night power consumption |
<1W |
| Ambient temperature range |
-25℃ to +60℃ |
| Waterproof grade |
IP23 (indoor type design) |
| Electromagnetic compatibility |
EN50081.part1 EN50082.part1 |
| Power system disturbance |
EN61000-3-2 EN60950-1 |
| Network test |
DIN VDE 1026 |
| Certification |
CE |
| Warranty period |
12 months |
| Inverter net weight |
2.3kg |
| Dimension (LxWxH) |
286x165x57mm |
Grid Tie Inverter for Solar Panel System
Tips: What is the function of solar inverter MPPT?
Because the solar panel receives the influence of external factors such as light intensity and environment, its output power is changing, and the light intensity emits more electricity. The solar inverter with MPPT maximum power tracking is to make full use of the solar panel and make it run at the maximum power point. In other words, under the condition of constant solar radiation, the output power of MPPT will be higher than that of those without MPPT, which is the function of MPPT.
Suppose that MPPT has not started tracking, then the output voltage of the component is 500V. After MPPT starts tracking, it begins to adjust the resistance of the circuit through the internal circuit structure to change the output voltage of the component and change the output current until we get the maximum output power (assuming 550V maximum), and then it has to be tracked continuously. In this way, in the case of constant solar radiation, the output voltage of the module at 550V will be higher than that at 500V.
