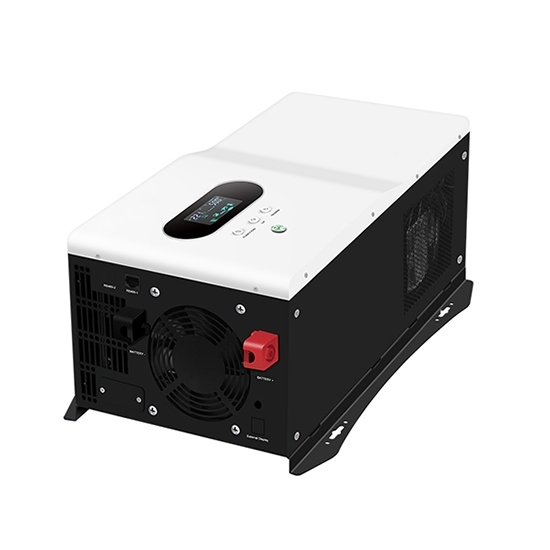

1000 Watt 12V/24V Off Grid Solar Inverter

Automatic 1000 watt (1500VA) off grid inverter with lower price, battery charging, LCD digital display show voltage, load and battery info in real time. 12/ 24V DC input pure sine wave UPS power inverter is capable of producing 110/ 120/ 230/ 240 V AC.

Be the first to review this product

SKU: ATO-OGI-1000

Free shipping

Delivery date: 6-12 days

Input Voltage (V) *
Output Voltage (V) *

$483.78

Qty:

Products specifications

User Manual	Off Grid Solar Inverter User Manual

1000W (1500VA) off grid solar inverter is a combination of a pure sine wave power inverter and 0-30A battery charger. 10.5-15V (12V) DC/ 21-30V (24V) DC wide range input voltage, it will work virtually anywhere in the world, with the ability to auto detect 50 or 60 Hz.

Off Grid Solar Inverter Features

Pure sine wave output for compatibility with loads of different types
Visualization of operation status of the equipment through a digital LCD
Automatically transfer between battery and line modes
Pure sine wave output (THD < 3%) for wide range of applications and harsh environment
A wide range of input voltage, accurate output and all automatic voltage stabilization
Overall protection functions (battery overvoltage protection, battery under voltage protection, overload protection, short circuit protection and over temperature protection)

1000 Watt Off Grid Solar Inverter Parameter List

Model		ATO-OGI-1000
Rated capacity		1500VA
Rated power load		1000W
Size		520230175mm
Net weight		16kg
Input	DC input	DC 10.5-15V (12V)/ DC 21-30V (24V)
	AC input	190-275V AC
	Frequency	50Hz/ 60Hz±5% (Auto)
Output	Voltage	110V/ 120V/ 220V/ 230V/ 240V AC
	Frequency	50Hz/ 60Hz±5% (Auto)
	Wave form	Pure sine wave
	Transfer efficiency	≥85% (full load)
	Wave form distortion factor	≤3%
	Output power load factor	≤0.8
Protection	Overload capacity	105-120% at 30s; 120-150% at 10s; >150% at 5s
	Low voltage	DC 10.5 (12V)/ DC 21 (24V)/ DC 42 (48V)/ DC 84 (96V), Alarm and shut down
	High temperature	85℃, Auto shut down after alarm
	Short-circuit	Automatic shut-down
	Over voltage	DC 17V (12V)/ DC 33V (24V)/ DC 66V (48V)/ DC 128V (96V), Auto shut down after alarm
Grid charge	Charge current	0-30A adjust
Function	Setting	Time & date setting, Contrast, Brightness, Sound, Voltage switch, Grid charger, Clear records, Reset
	Work mode	Grid fist/ battery first/ standby mode
	LCD display	Record (fault record), system information
Others	Switch time	≤4ms
	Cooling method	Fan
	Noise	<60 dBA
	Working temperature	-10~50℃
	Environment humidity	10%~90% (No condensation)
	Working elevation	<3000 (>1000m, derating)
	Certificate	CE, RoHS
	Warranty period	12 months

Off Grid Inverter for Solar Panel System

Off grid inverter for solar panel system

Tips:

The waveforms of the power inverter are mainly divided into two categories, one is the sine wave inverter and the other is the modified wave inverter. As to the modified wave inverter, it adopts the PWM pulse width modulation means to generate the modified wave output. Since there is a harmonic distortion of around 20%, it can’t carry an inductive load such as an air conditioner, but it can carry a resistive load such as a lamp. The modified sine wave inverter adopts a non-isolated coupling circuit. The equipment has a simple structure and high efficiency. The pure sine wave inverter adopts the isolated coupling circuit design, which has a rather complicated circuit and a rather high cost. Therefore, it can be connected to any common electrical equipment (including TV set, liquid crystal display and so on, especially the inductive load such as the refrigerator) without any interference.
