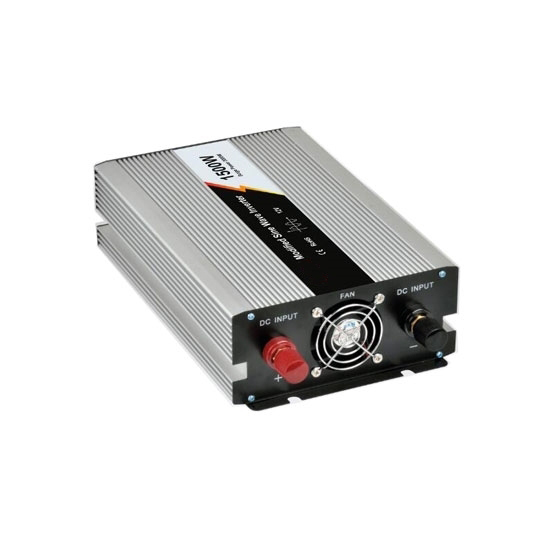

This 1500 Watt continuous and 3000 Watt peak power inverter is compitable with DC battery input of 48 Volt, to output AC power of 110V or 220V, to charge your devices like phones, iPad, fans, TV, etc., on the go.
1500W 48V Inverter Specification
| Model |
ATO-M1500W |
| Input Voltage |
DC 48V |
| Output Voltage* |
1-Phase (L, N, G) 110V/120V AC ±5% or 220V/230V/240V AC ±5%
- NOT provide split phase configuration (L1, L2+N, G) |
| Unload Current (less than) |
0.2A |
| Continuous Power |
1500W |
| Peak Power |
3000W |
| Output Frequency |
50Hz±0.5Hz or 60Hz±0.5Hz |
| Output Waveform* |
Modified sine wave or Pure sine wave |
| Max. Efficiency |
90% |
| USB Port |
5V 1A |
| Outlet Type* |
Universal outlet *1 |
| Input Voltage Range |
40V-61V |
| Low Voltage Alarm |
42V±1V |
| Low Voltage Shutdown |
40V±1V |
| High Voltage Shutdown |
61V±1V |
| Overload Protection |
Yes |
| Overheat Protection |
Yes |
| Short Circuit Protection |
Yes |
| Reverse Connection Protection |
Yes |
| Cooling Method |
Intelligent cooling fan |
| Working Temperature |
-10℃ ~ +50℃ |
| Storage Temperature |
-30℃ ~ +70℃ |
| Product Size |
310x180x78mm |
| Net. Weight |
3.1kg |
| Warranty |
1 year |
| Remote Control |
Wired control (3m) or Wireless control (20m)
-Wired control ONLY applies to pure sine wave inverter |
Note: * The AC output is 1-Phase (L, N, G), NOT Split Phase like USA standard (L1, L2+N, G).
Output Sockets (Optional)
Pure Sine Wave Inverter Remote Control & LCD Display (Optional)
- Pure sine wave power inverter is available with remote control: wired control and wireless control.
- LCD display shows input voltage, output voltage, output frequncy, battery capacity and power.
Protection Function
- Low voltage
Alarm at first; voltage continuously reduce, LED Red light on & shut down.
- Over voltage
LED Red light on, shut down
- Over load
LED Red light on, shut down
- Over temperature
Alarm at first; temperature continuously rise, LED Red light on & shut down.
- Short circuit
LED Red light on
- Input reverse polarity
Fuse burn-out
Power Inverter Applications
Tips: Inverter, rectifier, and transformer
As we all know, the power supply can be divided into alternating current and direct current. But in many cases, you need to switch between these sources.
- AC to AC - transformer
Transformers can be used to either step down or step up the voltage, or even to isolate the voltage without changing it.
- AC to DC – rectifier
The common rectifiers are rectifier diodes and thyristors. The diode rectifier (not controlled rectifier) and thyristor rectifier (phase-controlled rectifier) in the rectifiers, cannot flow in both directions, that is, the energy can only flow from the AC side to the DC side. Almost all home appliances and computers have rectifiers inside, which are installed in the electrical power supply.
- DC to AC – inverter
The inverter realizes its operation with thyristor. MOSFET inverters are commonly used in the case of high frequency low power level. The inverter is used in UPS and frequency converter, such as frequency conversion air conditioner.
- DC to DC – DC/DC converter
It is often used in instruments or gauge.
