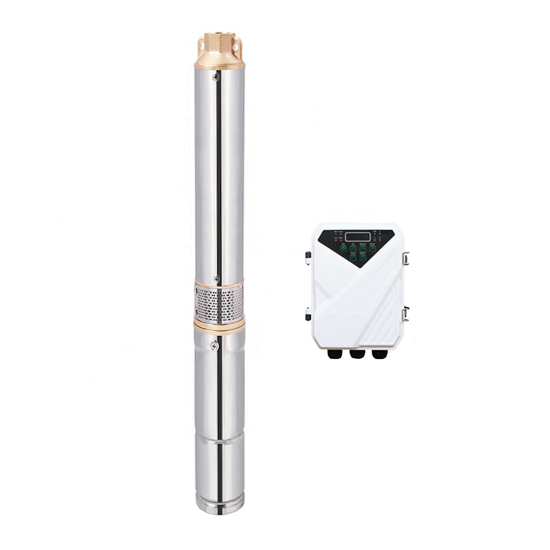

1500W (2 hp) solar water pump with DC controller, 110V working voltage, 1000~5000 gph max. flow, 34~203m max. head.
Specifications:
| Basics |
SKU |
ATO-SWP-110V1500 |
| Shipping weight |
15kg |
| Cable length |
2m |
| Package included |
1 * Solar water pump
1 * DC controller
1 * Stainless steel float switch (water level sensor for the tank)
1 * Pump outlet joint connector
1 * Splice kit for cable join
1 * Splice kit for waterproof
1 * User manual |
| Warranty |
2 years |
| Solar water pump features |
Power |
1500W (2 hp) |
| Voltage |
110V DC |
| Max. flow * |
3.8m3/h (1004 gph) |
4.8m3/h (1268 gph) |
6.0m3/h (1585 gph) |
9.0m3/h (2378 gph) |
13.0m3/h (3434 gph) |
| Max. head * |
180m (590ft) |
130m (425ft) |
135m (440ft) |
71m (230ft) |
60m (195ft) |
| Inlet diameter |
3 inch |
3 inch |
4 inch |
4 inch |
4 inch |
| Outlet diameter |
1.25 inch |
1.25 inch |
1.25 inch |
2 inch |
2 inch |
| Length |
80cm |
80cm |
60cm |
60cm |
60cm |
| Structure |
Single-suction plastic impeller |
Single-suction strainless steel impeller |
Single-suction plastic impeller |
Single-suction plastic impeller |
Single-suction plastic impeller |
| Material of outlet/connector/oil cylinder |
Brass |
Strainless steel |
Brass |
Brass |
Brass |
| Model |
3DPC3.8-180-110-1500 |
3DSC4.8-130-110-1500 |
4DPC6-135-110-1500 |
4DPC9-71-110-1500 |
4DPC13-60-110-1500 |
| Max. flow * |
5.0m3/h (1321 gph) |
4.5m3/h (1189 gph) |
7.0m3/h (1849 gph) |
9.0m3/h (2376 gph) |
19.0m3/h (5019 gph) |
| Max. head * |
146m (475ft) |
203m (665ft) |
100m (325ft) |
59m (190ft) |
34m (110ft) |
| Inlet diameter |
4 inch |
4 inch |
4 inch |
4 inch |
4 inch |
| Outlet diameter |
1.25 inch |
1.25 inch |
1.25 inch |
2 inch |
2 inch |
| Length |
60cm |
60cm |
60cm |
60cm |
60cm |
| Structure |
Single-suction strainless steel impeller |
Single-suction strainless steel impeller |
Single-suction strainless steel impeller |
Single-suction strainless steel impeller |
Single-suction strainless steel impeller |
| Material of outlet/connector/oil cylinder |
Strainless steel |
Strainless steel |
Strainless steel |
Strainless steel |
Strainless steel |
| Model |
4DSC5-146-110-1500 |
4DSC4.5-203-110-1500 |
4DSC7-100-110-1500 |
4DSC9-59-110-1500 |
4DSC19-34-110-1500 |
| Internal motor |
Brushless DC motor |
| Speed |
4000rpm |
| Material of shaft |
304 stainless steel |
| No water protection function |
The pump stops working automatically when there is no water in the well, and it will automatically restart working 30 minutes later. |
| Required open circuit voltage (VOC) of solar panel |
＜200V DC |
| Required power of solar panel |
≥1.3*pump power |
| Efficiency |
45% |
| Controller features |
Model |
DF-110 |
| Best MPPT voltage range |
110-150V DC |
| Max. input current |
15A |
| Working temperature |
-15~+60℃ (5~140℉) |
| Display |
LED display can show power, voltage, current and speed value. |
| Functions |
Automatic charging (for battery)
Variable frequency
Automatic power ON/OFF
Soft start
High voltage/low voltage/over-current/high temperature protection |
| Protection class |
IP65 |

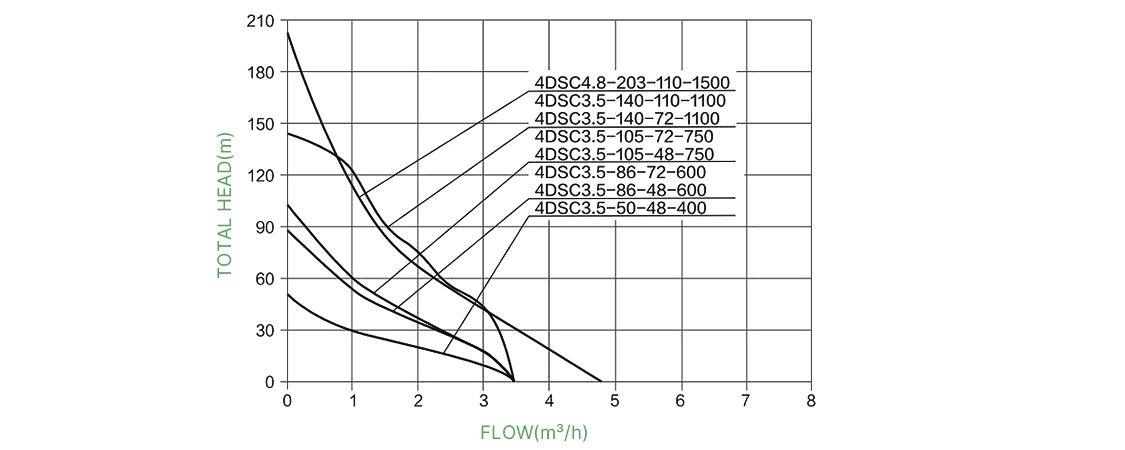

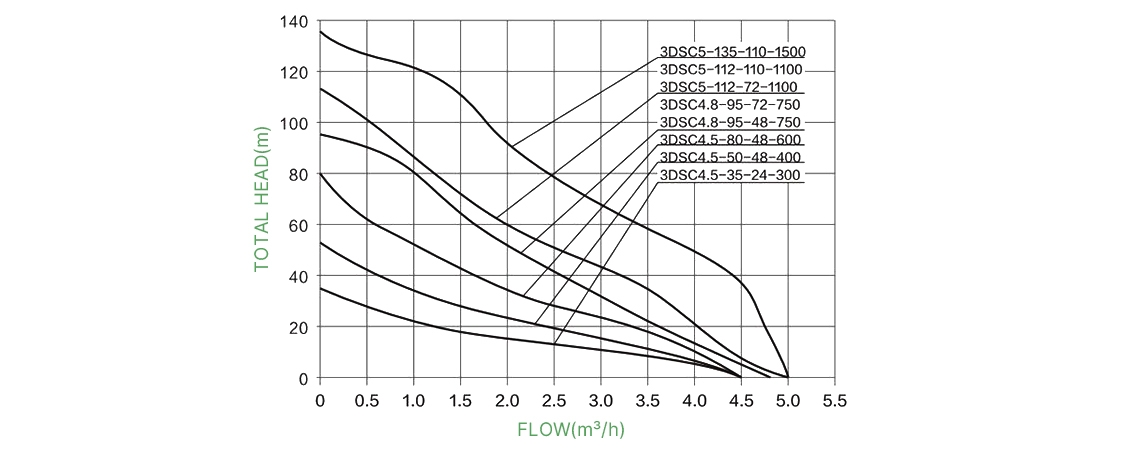

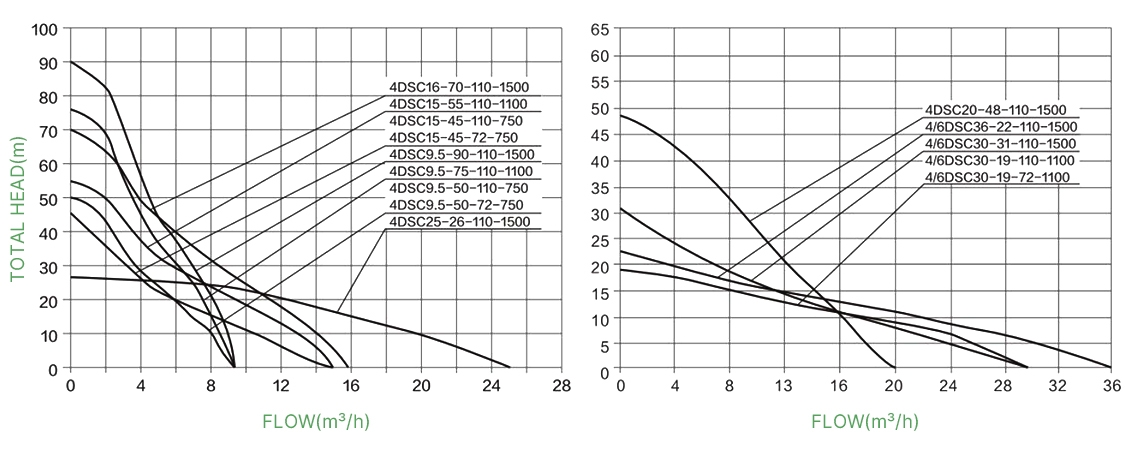

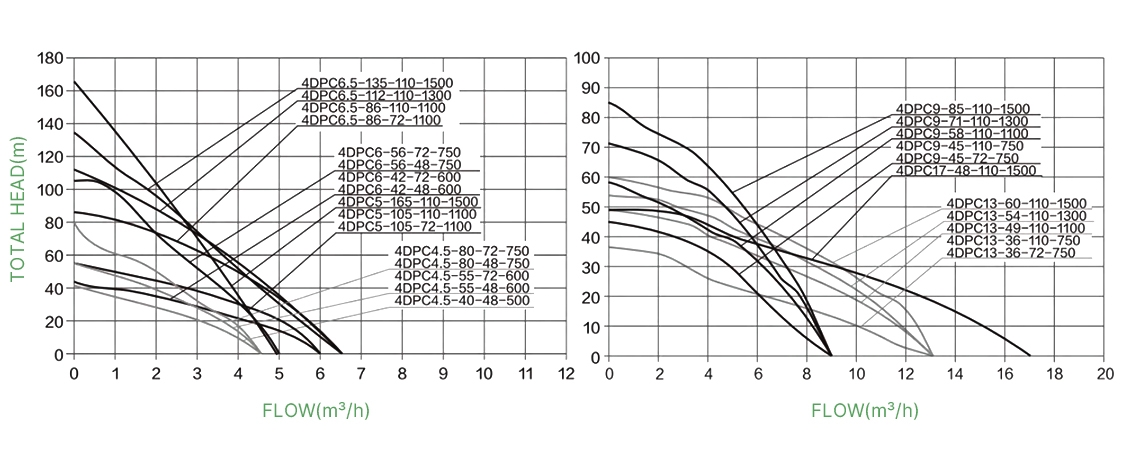

1500W 110V DC solar water pump performance curves:
Max. Flow: 3.8m3/h, Max. Head: 180m, Model: 3DPC3.8-180-110-1500
Max. Flow: 4.8m3/h, Max. Head: 130m, Model: 3DSC4.8-130-110-1500
Max. Flow: 6.0m3/h, Max. Head: 135m, Model: 4DPC6-135-110-1500
Max. Flow: 9.0m3/h, Max. Head: 71m, Model: 4DPC9-71-110-1500
Max. Flow: 13.0m3/h, Max. Head: 60m, Model: 4DPC13-60-110-1500
Max. Flow: 5.0m3/h, Max. Head: 146m, Model: 4DSC5-146-110-1500
Max. Flow: 4.5m3/h, Max. Head: 203m, Model: 4DSC4.5-203-110-1500
Max. Flow: 7.0m3/h, Max. Head: 100m, Model: 4DSC7-100-110-1500
Max. Flow: 9.0m3/h, Max. Head: 59m, Model: 4DSC9-59-110-1500
Max. Flow: 19.0m3/h, Max. Head: 34m, Model: 4DSC19-34-110-1500
Solar water pump installation drawing:
Solar water pump wiring diagram:
Tips: How to select solar panels for 12V - 110V DC solar water pump?
1. Select the type
Solar panel can be divided into thin-film photocell, polycrystalline silicon solar cell and mono-crystalline silicon solar cell. The prices are different for the three kinds of solar panel. Mono-crystalline type has the highest price but the efficient is the best. The thin-film photocell is the cheapest one.
2. Select the rated power and Voc
- Rated power: The power is proportional to the panel area. Normally, the rated power of solar cell is 150W per square meter.
- Voc: The open-circuit voltage (Voc) means the maximum electromotive force before solar panel working. The common open-circuit voltage (Voc) is DC 21V, 36V, 44V, etc. The lower the temperature, the higher the Voc. Because the open-circuit voltage changes along with the change of area and temperature. If the Voc is not high enough, connect more solar cells in series. The total voltage value equals the sum of each panel's Voc.
- How to select Voc and rated power?
When solar panel working, its voltage will decrease, this voltage is called working voltage (Vmp). The Vmp of solar cell needs to be selected according to the solar pump controller's working voltage, and then to confirm the open-circuit voltage (Voc) of solar panel.
After that, according to the solar pump power to select the solar panel power. The generating efficiency of solar panel is under 70% usually. In order to ensure the rated working time (for example 4 hours a day), the solar panel power equals to 1.5 times of solar pump power.
