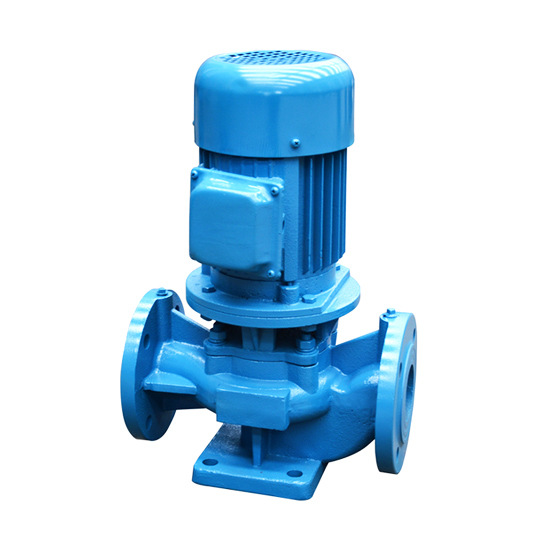

1 hp Vertical Centrifugal Pump

1 hp vertical centrifugal pump is a single stage pipeline pump, has same diameter of inlet and outlet 25mm (1 inch), maximum flow 5.2m3/h (22.9 gpm), maximum head 20.6m (68ft), optional input voltage AC 220V/ 240V/ 380V/ 415V to 480V and optional input frequency 50Hz/60Hz. 1 hp 3 phase centrifugal pump can be used in industrial and urban water supply, such as pipeline pressurization of production line, fire water and air condition system water supply.

Be the first to review this product

SKU: ATO-VCP-0750W

Free shipping

Delivery date: 6-20 days

Input Voltage (Three Phase) *
Input Frequency *

$567.77

PRICE BREAKS - The more you buy, the more you save

Quantity	5+	10+	50+
Discount	3% OFF	4% OFF	5% OFF

Qty:

1 hp vertical centrifugal pump with 5.2m³/h maximum flow, 20.6m maximum head and 25mm diameter of inlet and outlet.

Features:

The centrifugal pump has the vertical structure. The diameter of the inlet and outlet are the same. And the inlet and outlet are on the same center line, so that the vertical centrifugal pump can be installed in the pipeline like a valve. If a protective cover is added, it can be used in the open air.
It is easy to install and maintain. No need to dismantle pipeline system, just lifting off the conjunction flat nut of vertical pump. Then all the rotor parts can be taken out.
Vertical centrifugal pump can be operating in series or parallel connection according to the requirements of flow and head.
Vertical pump can be installed in vertically type or horizontally type according to the requirement of pipeline system.

Specifications:

SKU	ATO-VCP-0750W
Model	25-125
Weight	28kg
Size	260230435mm
Power	1 hp (0.75kW)
Phase	3 phase
Input voltage *	AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V
Input frequency *	50Hz, 60Hz
Flow (min. flow to max. flow)	2.8m³/h (12.3 gpm, American system)	4.0m³/h (17.6 gpm, American system)	5.2m³/h (22.9 gpm, American system)
Head (max. head to min. head)	20.6m (68ft)	20.0m (66ft)	18.0m (59ft)
Efficiency	28%	36%	35%
Inlet diameter	25mm (1 inch)
Outlet diameter	25mm (1 inch)
Installation mode	Vertical type or horizontal type
Nominal diameter of impeller	125mm
Pump type	Booster pump
Number of stages	Single stage
Motor type	Y/Y2 series motor
Motor speed	2900rpm
Impeller material	304/316 stainless steel
Seal material	304 stainless steel, tungsten carbide, fluorine rubber
Inlet max. pressure	1MPa (145 psi)
(NPSH)r	2.3m
Usage	Water, or liquids compatible with pump component materials. 1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm. 2. The temperature should be lower than 60℃.
Environment	Temperature: ＜40℃, humidity: ＜95%, altitude＜1000m
Warranty	12 months

Vertical centrifugal pump dimension (unit: mm):

Boundary dimension				Installation dimension			Flange dimension
L	B	H	C1*B1	A	C2*B2	4-Φd1	ΦD	ΦD1	n-Φd
260	230	435	80*110	75	50*80	4-Φ12	Φ115	Φ85	4-Φ14

Tips: Application scope of centrifugal pump

Centrifugal pump is suitable for high-rise building pressurized water supply, garden sprinkler irrigation, cooling tower water feeding, long-distance water delivery, air conditioner, refrigeration and bathroom, the cold and hot water cycle pressurization. The operation temperature is below 80 ℃.
Centrifugal pump is applicable to the hot-temperature hot water pressurizing circulation of the heating, boiler and other industries. The operation temperature is below 130℃.
Centrifugal pump is suitable for conveying corrosive media in the process of food, pharmaceutical, wine making, chemical and other industries. The operation temperature is below 80 ℃.
Centrifugal pump is suitable for transporting non-corrosive liquids. It is applicable to the industrial sites with methane or other explosive mixtures. The operation temperature is below 80℃.
Centrifugal pump is suitable for transporting chemical, pharmaceutical, petrochemical, food, national defense and other industrial corrosive liquids. It is applicable to the industrial sites with methane or other explosive mixtures. The operation temperature is below 150 ℃.
