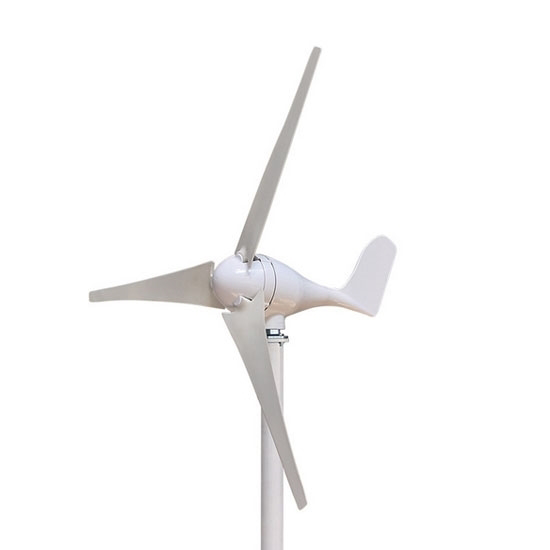

200W Horizontal Axis Wind Turbine, 12V/24V
200W Horizontal Axis Wind Turbine, 12V/24V 200W Horizontal Axis Wind Turbine, 12V/24V

200W Horizontal Axis Wind Turbine, 12V/24V

$267.69
| 7 review(s) | Add your review
200W horizontal axis wind turbine with 12V/24V. Rated power is 200W, 220W maximum power 2.0 m/s start up wind speed and 10 m/s rated wind speed. The survival wind speed is 55 m/s and wheel diameter is 1.3m. 200W wind turbine generator for home use/boat.
Free shipping
Delivery date: 6-12 days
SKU: ATO-WT-200W
*
*
*
increase decrease
  • Overview
  • Reviews
Overview

200W horizontal axis wind turbine with 3/5 blase number and nylon fiber material. It has three phase permanent magnet AC generator, die casting aluminum, electromahnet controller system. The wind adjustment is automatically adjust to windward.

Feature:

  1. Low starting wind speed, beautiful appearance and low running vibration.
  2. Using humanized flange installation design, convenient installation and maintenance.
  3. The starting speed is slow, and 3 or 5 blades can be selected in different wind speed regions, and the wind energy utilization rate is high.
  4. The blade adopts the new technology of precision injection molding, with optimized aerodynamic shape and structure, which improves the wind energy utilization rate and annual output.
  5. Cast aluminum alloy body, can rotate 2 bearings, can resist strong wind, safer operation.
  6. Patented permanent magnet alternator with special stator, which effectively reduces the torque and matches the wind turbine with the generator to ensure the performance of the whole system.

Specification:

Model ATO-WT-S200
Matched Controller Model ATO-WTCMPPT-400 (Click it to the controller page)
Rated Power 200W
Maximum Power 220W
Rated Voltage 12V/24V
Start Up Wind Speed 2.0 m/s
Rated Wind Speed 10 m/s
Survival Wind Speed 55 m/s
Wheel Diameter 1.3m
Blase Number 3/5
Blades Material Nylon Fiber
Generator Three Phase Permanent Magnet AC Generator
Magnetic Steel NdFeB
Generator Case Die-Casting Aluminum
Controller System Electromahnet
Speed Regulation Automatically Adjust Windard
Installation Flange DN20
Working Temperature -40°C~80°C
Gross Weight 9kg
Top Net Weight 6.2kg
Service Life 15 years
Warranty 18 months
Package Dimension 670*280*210mm

Dimension:

wind generator dimensions

200W Wind Turbine Power Curve:

200W wind turbine power curve

200W Wind Turbine (Flange Seat) Exploded View:

100w wind turbine exploded view

1. Wind turbine body, 2. Wind turbine flange seat, 3. Tower, 4. Wind turbine shaft, 5. Wind hub, 6. Wind wheel, 7. Lock nut, 8. Fairing, 9. Bolt, 10. Flat washer, 11. Elastic washer, 12. Nuts, 13. Stainless steel nut, 14. Anti-loose nut, 15. Rubber pad.

Tips: What is wind turbine?

Wind power is the conversion of the kinetic energy of the wind into mechanical kinetic energy and the conversion of mechanical energy into electrical kinetic energy. The principle of wind power generation is to use the wind to drive the rotation of windmill blades, and then increase the speed of rotation through the speed increasing machine to promote the generator to generate electricity. With current windmill technology, a breeze of about three meters per second (the size of the breeze) can start generating electricity. Wind power is becoming a craze in the world because it does not use fuel and produces no radiation or air pollution.
