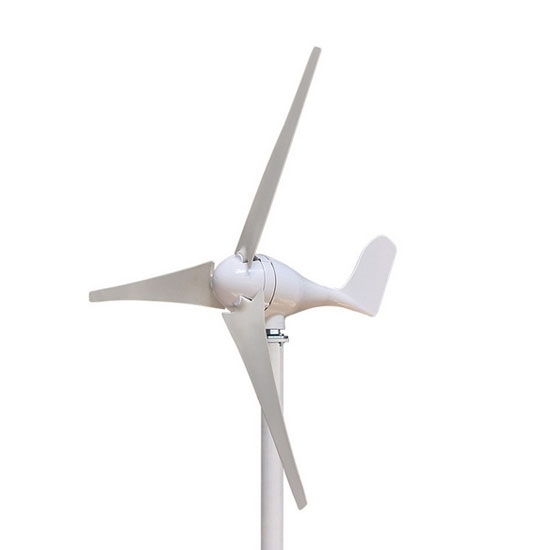

300W Horizontal Axis Wind Turbine, 12V/24V
300W Horizontal Axis Wind Turbine, 12V/24V 300W Horizontal Axis Wind Turbine, 12V/24V

300W Horizontal Axis Wind Turbine, 12V/24V

$331.84
| 3 review(s) | Add your review
300W horizontal axis wind turbine with 12V/24V. Rated power is 300W, 320W maximum power 2.0 m/s start up wind speed and 10 m/s rated wind speed. The survival wind speed is 55 m/s and wheel diameter is 1.35m. Wind turbine generator for home use/boat.
Free shipping
Delivery date: 6-12 days
SKU: ATO-WT-300W
*
*
*
increase decrease
  • Overview
  • Reviews
Overview

300W horizontal axis wind turbine with nylon fiber material. It has die-casting aluminum, electromahnet controller system. Built-in low speed 3 phase AC permanent magnet generator to effectively regulate current and voltage, high wind energy utilization.

Feature:

  1. Low starting wind speed, beautiful appearance and low running vibration.
  2. Using humanized flange installation design, convenient installation and maintenance.
  3. The starting speed is slow, and 3 or 5 blades can be selected in different wind speed regions, and the wind energy utilization rate is high.
  4. The blade adopts the new technology of precision injection molding, with optimized aerodynamic shape and structure, which improves the wind energy utilization rate and annual output.
  5. Cast aluminum alloy body, can rotate 2 bearings, can resist strong wind, safer operation.
  6. Patented permanent magnet alternator with special stator, which effectively reduces the torque and matches the wind turbine with the generator to ensure the performance of the whole system.

Specification:

Model ATO-WT-S300
Matched Controller Model ATO-WTCMPPT-400 (Click it to the controller page)
Rated Power 300W
Maximum Power 320W
Rated Voltage 12V/24V
Start Up Wind Speed 2.0 m/s
Rated Wind Speed 10 m/s
Survival Wind Speed 55 m/s
Wheel Diameter 1.35m
Blades Material Nylon Fiber
Generator Three Phase Permanent Magnet AC Generator
Magnetic Steel NdFeB
Generator Case Die-Casting Aluminum
Controller System Electromahnet
Speed Regulation Automatically Adjust Windard
Installation Flange DN20
Working Temperature -40°C~80°C
Gross Weight 9.5kg
Top Net Weight 6.5kg
Service Life 15 years
Warranty 18 months
Package Dimension 670*280*210mm

Dimension:

wind generator dimensions

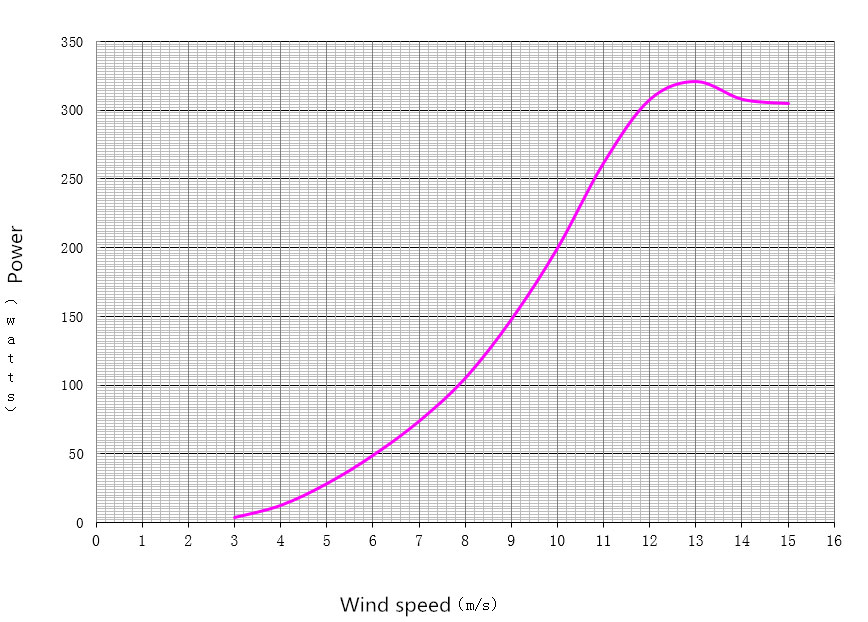

300W Wind Turbine Power Curve:

300W wind turbine power curve

300W Wind Turbine (Flange Seat) Exploded View:

100w wind turbine exploded view

1. Wind turbine body, 2. Wind turbine flange seat, 3. Tower, 4. Wind turbine shaft, 5. Wind hub, 6. Wind wheel, 7. Lock nut, 8. Fairing, 9. Bolt, 10. Flat washer, 11. Elastic washer, 12. Nuts, 13. Stainless steel nut, 14. Anti-loose nut, 15. Rubber pad.

Tips: Why do you choose wind turbine?

  1. Wind energy resources are inexhaustible, the use of wind power can reduce environmental pollution, save coal, oil and other conventional energy.
  2. Wind power generation technology is mature, relatively low cost in renewable energy, has broad prospects for development. Wind power generation technology can be applied flexibly.
  3. It can be connected to the grid or operated independently from the grid. It can also be combined with other energy technologies to form complementary power generation systems.
  4. Small wind turbines can provide electricity for production and living in remote areas.
Write your own review
*
*
Existing reviews
well made wind turbine, I have been using it for half a year
I purchased a 24 V wind turbine with the aim of integrating it with an existing solar system. The wind turbines do work and generate electricity. I must thank the excellent customer support that has given me during this process. Having been using it for half a year, I will continue to experiment with this turbine to see if I can fully integrate it with my solar system.
Xavier Xuies | 4/25/2022 1:46 AM
Was this review helpful? Yes No (0/0)
Satisfied with this wind turbine
The wind turbine is well made with alloy frame, looks very sturdy. It can start with small wind smoothly as like advertised. Especially great is not big noise when turbine rotate in high speed wind. I’m very satisfied with this product.
Edwin Smith | 10/26/2021 8:18 PM
Was this review helpful? Yes No (0/0)
300W wind turbine application field
Can this 300W wind turbine be used in lighting equipment?
Icona Icona | 9/6/2021 7:35 PM
Was this review helpful? Yes No (0/0)
Responded by inverter.com
Yes, of course.
