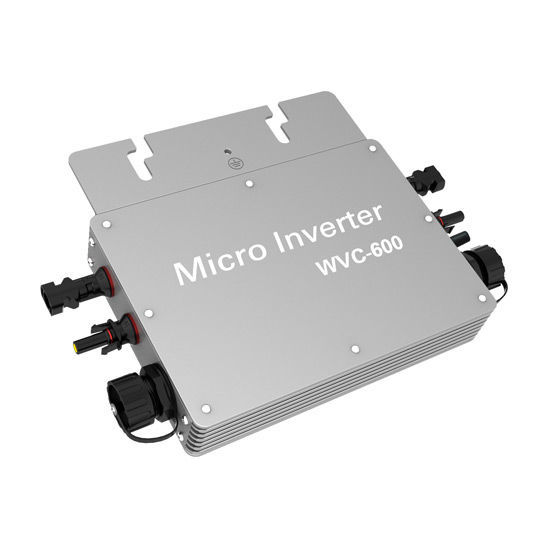

ATO-WVC-600 (wireless) grid tie solar micro inverter using IP65 waterproof streamline design, can effectively prevent rainwater on the surface erosion. It can better track the change of solar luminosity and control different output power by the MPPT function, to effectively capture and collect sunlight. It can also automatic shift local grid voltage to 120V or 230V AC output.
Features
- High performance maximum power point tracking (MPPT)
- Reverse power transmission
- Intelligent monitoring management
- Input/output is fully isolated to protect the electrical safety
- Multiple parallel stacking
- Digital control system
- Simplify maintenance (user serviceable)
- Operation and maintenance costs low
- Flexible installation
- Use the wireless 433MHz communication mode
Parameter List
Model
|
ATO-WVC600-WiFi |
Maximum input power |
700W |
Output voltage mode
|
120/230V Auto switch
|
PV Open circuit voltage
|
30-60VOC
|
Operating voltage range
|
24V/ 48V DC, range: 22-60V DC |
Starting voltage range
|
22-60V DC, the PV panel can be connected to the ports on both sides of the inverter or only to one side. (It is recommended that the input voltage is above 36V). |
Short-circuit current
|
28A
|
Maximum working current
|
23A |
Output Parameters |
@120V AC |
@230V AC |
Output peak power
|
700 watt |
700 watt |
Rated output power
|
600W |
600W |
Output current
|
5A |
2.6A |
AC voltage range
|
80-160V AC |
180-280V AC |
AC frequency range
|
48-51Hz/58-61Hz |
48-51Hz/58-61Hz |
Power factor |
>95% |
>95% |
Number of branch connections
|
6PCS (single-phase) |
12PCS (single-phase) |
Output Efficiency |
@120V AC |
@230V AC |
Static MPPT efficiency |
99.5% |
99.5% |
Max output efficiency
|
95% |
95% |
Loss of power at night
|
<0.5W |
<0.5W |
Total current harmonics
|
<5% |
<5% |
Appearance and technical features
|
Temperature range
|
-40℃ to +65℃ |
Size(L×W×H)
|
283mm×200mm×41.6mm |
Net amount
|
1.44kg |
Waterproof grade
|
IP65 NEMA3R |
Heat dissipation mode
|
Self-cooling |

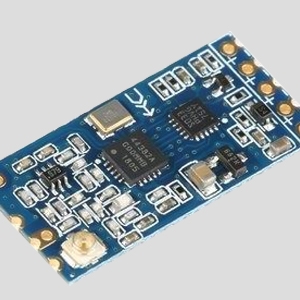

Communication mode
|
WiFi
|
Connecting cable and plug
|
Comes standard with a 3m connecting cable and plug (European standard), if you need a longer cable or other size plug, please contact us.
|
WIFI Connection
|
iOS / Android (Monitor power generation, DC input & AC output display, etc.)
|
433MHz Data Collector |
Monitor 30 inverters simultaneously
|
Power transmission mode |
Reverse transfer, load priority |
Monitoring System |
Browser
|
Electromagnetic compatibility |
EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1
|
Power grid
|
EN61000-3-2 EN62109.UL STD.1741
|
Power grid detection
|
DIN VDE 0126 IEEE STD.1547.1547.1 and 1547.A
|
Certificate |
CEC, CE, INMETOR, ETL, Patented technology
|
Warranty period |
12 months |
Packing weight
|
|
2.64KG |
|
342×240×115mm
|
APP Download
Use the mobile phone QR code scanning function to scan the QR code below to download the application (A-1), or download the "Cloud Smart" application(A-2) through the Apple Store or Google Store.

*Note: Use your Phone to scan QR code,download and install the APP Support: Android 5.0 or aboveIos 9.0 or Above. For more download steps, please check the User Manual.
Tips: Solar micro inverter used in truck
At home, people do not worry about running multiple appliances at a time. Connecting to the grid provides sufficient capacitance to start and operate these devices. But on the road, truck drivers have to rely on the battery and internal electrical system of the vehicle, which is limited compared with the capacity of the family. Trucks are equipped with more and more advanced systems to deal with greater electricity demand. These systems include solar micro inverters, which obtain DC from batteries at various power levels and types and convert it to 12V voltage for most modern devices.
These solar micro inverters are usually combined with chargers and shore power connections. Installed on the line of the truck's transducer, all sockets in the sleeper cab have AC power supply. The frequency converter should be selected initially according to the continuous power output. But even if owners and operators think they have enough capacity to handle the load and know how much they can demand from the system, they can still get bogged down by a phenomenon called surge power. Some electronic devices absorb relatively constant current when turned on. However, induction appliances, such as microwave ovens or appliances using magnets or transformers, require an initial power surge to start and then drop to a lower level, known as continuous power. Depending on the device or application, the requirement for starting surge power can be as high as five seconds. In short, a 1000 watt microwave oven may take up to 2000 watts a second or two, and then down to 1000 watts to heat food.
If you install a "micro inverter" on your new car, you will be able to use electrical appliances on trucks easily. Truck original equipment manufacturers know that fleet and truck drivers need sufficient surge power, which is one of the reasons why almost all truck manufacturers choose the converter as an OEM specification option. In addition to providing higher surge voltage, high quality inverters also provide a wide operating temperature range and battery charging without electricity.
