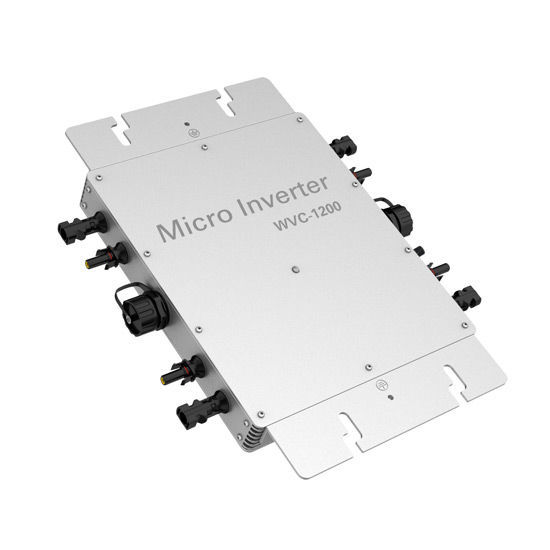

1200 Watt Solar Micro Inverter, Grid-tie Inverter

Low price 1200W micro inverter is a grid tie solar inverter with 433MHz wireless communication, 24V/48V (22-50V DC) wide input voltage to 120V/230V AC, IP65 waterproof streamline design, built-in high-performance maximum power point tracking (MPPT) function, more efficiency.
SKU: ATO-WVC-1200
Free shipping
Delivery date: 6-12 days
*
$427.23
PRICE BREAKS - The more you buy, the more you save
Quantity 5+ 10+ 50+
Discount 3% OFF 4% OFF 5% OFF
Products specifications
Attribute name Attribute value
User Manual

PDF1200W Micro Inverter User Manual

IP65 waterproof 1200 watt micro grid tie solar inverter for solar panel system, 24V/48V DC to 120V AC, 24V/48V DC to 230V AC is available, unique circuit design, higher efficiency, more stable.

Features

  • High performance maximum power point tracking (MPPT)
  • Reverse power transmission
  • Intelligent monitoring management
  • Input/output is fully isolated to protect the electrical safety
  • Multiple parallel stacking
  • Digital control system
  • Simplify maintenance (user serviceable)
  • Operation and maintenance costs low
  • Flexible installation
  • Use the wireless 433MHz communication mode

Parameter List

Model
ATO-WVC-1200-R3-433/WiFi
Maximum input power 1400 W
Output voltage mode
120/230V Auto switch
PV Open circuit voltage
30-60VOC
Operating voltage range
24V/48V DC, range: 22-60V DC
Starting voltage range
22-60V DC
Short-circuit current
55A
Maximum working current
46A
Output Parameters @120V AC @230V AC
Output peak power
1400 W 1400 W
Rated output power 1200 W 1200 W
Output current
10A 5.22A
AC voltage range
80-160V AC 180-280V AC
AC frequency range
48-51Hz/58-61Hz
48-51Hz/58-61Hz
Power factor >95% >95%
Number of branch connections
3PCS (single-phase) 6PCS (single-phase)
Output Efficiency @120V AC @230V AC
Static MPPT efficiency 99.5% 99.5%
Max output efficiency
95% 95%
Loss of power at night
<0.5W <0.5W
Total current harmonics
<5% <5%
Appearance and technical features
Temperature range
-40℃ to +65℃
Size (L×W×H)
370mm×300mm×41.6mm
Net amount
2.56kg
Waterproof grade
IP65 NEMA3R
Heat dissipation mode
Self-cooling
Communication mode
433MHz/WiFi
Power transmission mode
Reverse transmission, Load priority
Monitoring System
Browser
Electromagnetic compatibility
EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1
Power grid
EN61000-3-2 EN62109.UL STD.1741
Power grid detection
DIN VDE 0126 IEEE STD.1547.1547.1 and 1547.A
Certificate
CEC,CE,INMETOR,ETL,Patented technology
Warranty period 12 months
Packing weight
weight
 3.74KG
Size
430×375×140mm

Tips:

Inverters convert direct current to alternating current, which transfers power to the grid. Grid-tie inverters (GTI) must use a local oscillator to synchronize with the grid frequency (e.g., 50 or 60Hz) and limit the voltage to no higher than the grid voltage. A good grid-tie inverter has a fixed combined power factor, which means that its output voltage and current are perfectly aligned and its phase Angle is less than 1 degree in the AC grid.

The grid-tie inverter has a built-in calculator that senses the current AC grid waveform and outputs the voltage corresponding to the grid. However, it may be necessary to provide reactive power to the grid in order to keep the voltage in the local grid within permissible limits. Otherwise, when the grid-tie inverter transfers a large amount of electricity to the grid, the voltage level may rise too much when the sun is strong at noon.

If the grid voltage drops, the grid-tie inverter can also quickly disconnect from the grid. This ensures that in the event of a power outage, the grid-tie inverter will be shut down to prevent the energy it transmits from harming any workers sent to repair the grid. Properly configured, grid-tie inverters could allow homeowners to use alternative systems such as solar or wind power without the need for extensive rewiring and battery power.

IP65 waterproof 1200 watt micro grid tie solar inverter for solar panel system, 24V/48V DC to 120V AC, 24V/48V DC to 230V AC is available, unique circuit design, higher efficiency, more stable.

Features

  • High performance maximum power point tracking (MPPT)
  • Reverse power transmission
  • Intelligent monitoring management
  • Input/output is fully isolated to protect the electrical safety
  • Multiple parallel stacking
  • Digital control system
  • Simplify maintenance (user serviceable)
  • Operation and maintenance costs low
  • Flexible installation
  • Use the wireless 433MHz communication mode

Parameter List

Model
ATO-WVC-1200-R3-433/WiFi
Maximum input power 1400 W
Output voltage mode
120/230V Auto switch
PV Open circuit voltage
30-60VOC
Operating voltage range
24V/48V DC, range: 22-60V DC
Starting voltage range
22-60V DC
Short-circuit current
55A
Maximum working current
46A
Output Parameters @120V AC @230V AC
Output peak power
1400 W 1400 W
Rated output power 1200 W 1200 W
Output current
10A 5.22A
AC voltage range
80-160V AC 180-280V AC
AC frequency range
48-51Hz/58-61Hz
48-51Hz/58-61Hz
Power factor >95% >95%
Number of branch connections
3PCS (single-phase) 6PCS (single-phase)
Output Efficiency @120V AC @230V AC
Static MPPT efficiency 99.5% 99.5%
Max output efficiency
95% 95%
Loss of power at night
<0.5W <0.5W
Total current harmonics
<5% <5%
Appearance and technical features
Temperature range
-40℃ to +65℃
Size (L×W×H)
370mm×300mm×41.6mm
Net amount
2.56kg
Waterproof grade
IP65 NEMA3R
Heat dissipation mode
Self-cooling
Communication mode
433MHz/WiFi
Power transmission mode
Reverse transmission, Load priority
Monitoring System
Browser
Electromagnetic compatibility
EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1
Power grid
EN61000-3-2 EN62109.UL STD.1741
Power grid detection
DIN VDE 0126 IEEE STD.1547.1547.1 and 1547.A
Certificate
CEC,CE,INMETOR,ETL,Patented technology
Warranty period 12 months
Packing weight
weight
 3.74KG
Size
430×375×140mm

Tips:

Inverters convert direct current to alternating current, which transfers power to the grid. Grid-tie inverters (GTI) must use a local oscillator to synchronize with the grid frequency (e.g., 50 or 60Hz) and limit the voltage to no higher than the grid voltage. A good grid-tie inverter has a fixed combined power factor, which means that its output voltage and current are perfectly aligned and its phase Angle is less than 1 degree in the AC grid.

The grid-tie inverter has a built-in calculator that senses the current AC grid waveform and outputs the voltage corresponding to the grid. However, it may be necessary to provide reactive power to the grid in order to keep the voltage in the local grid within permissible limits. Otherwise, when the grid-tie inverter transfers a large amount of electricity to the grid, the voltage level may rise too much when the sun is strong at noon.

If the grid voltage drops, the grid-tie inverter can also quickly disconnect from the grid. This ensures that in the event of a power outage, the grid-tie inverter will be shut down to prevent the energy it transmits from harming any workers sent to repair the grid. Properly configured, grid-tie inverters could allow homeowners to use alternative systems such as solar or wind power without the need for extensive rewiring and battery power.

Products specifications
Attribute name Attribute value
User Manual

PDF1200W Micro Inverter User Manual

Existing reviews
Safe 1200W solar micro inverter
Does this 1200W solar micro inverter have safety features that can be shut down when the grid is out of power?
Rogers Rogers | 3/15/2021 9:36 PM
Was this review helpful? Yes No (0/0)
A manager responded to this review
Solar micro inverter input/output is completely isolated, which can protect electrical safety.
