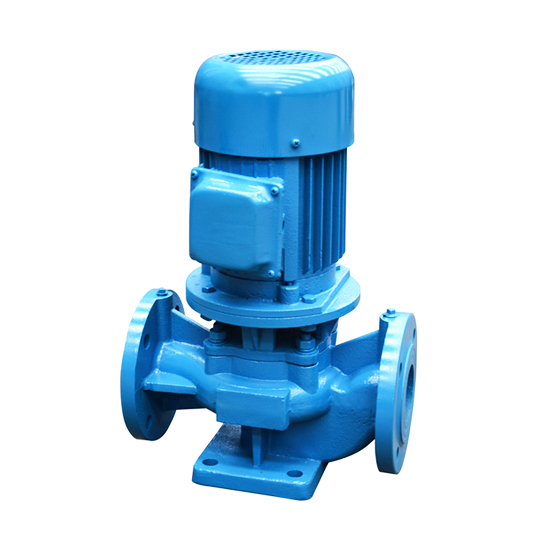

7.5 hp Vertical Centrifugal Pump

7.5 hp Vertical Centrifugal Pump

$2,067.35
| 1 review(s) | Add your review
7.5 hp centrifugal pump is a single-stage centrifugal pump, has same diameter of inlet and outlet 50mm (2 inches), maximum flow 16.3m3/h (72 gpm), maximum head 52m (171ft), optional input voltage AC 240V/ 380V/ 400V/ 415V to 440V/ 480V and optional input frequency 50Hz/60Hz. 7.5 hp vertical centrifugal pump can be used for long-distance water delivery, pipeline pressurization, high-rise building pressurized water supply, etc.
Free shipping
Delivery date: 6-12 days
SKU: ATO-VCP-5500W
*
*
increase decrease
  • Overview
  • Reviews
Overview

7.5 hp vertical centrifugal pump with 16.3m3/h maximum flow, 52m maximum head and 50mm diameter of inlet and outlet.

Features:

  1. The centrifugal pump has the vertical structure. The diameter of the inlet and outlet are the same. And the inlet and outlet are on the same center line, so that the vertical centrifugal pump can be installed in the pipeline like a valve. If a protective cover is added, it can be used in the open air.
  2. It is easy to install and maintain. No need to dismantle pipeline system, just lifting off the conjunction flat nut of vertical pump. Then all the rotor parts can be taken out.
  3. Vertical centrifugal pump can be operating in series or parallel connection according to the requirements of flow and head.
  4. Vertical pump can be installed in vertically type or horizontally type according to the requirement of pipeline system.

Specifications:

SKU ATO-VCP-5500W
Model 50-200
Weight 125kg
Size 360*350*615mm
Power 7.5 hp (5.5kW)
Phase 3 phase
Input voltage * AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V
Input frequency * 50Hz, 60Hz
Flow (min. flow to max. flow) 8.8m3/h (39 gpm, American system) 12.5m3/h (55 gpm, American system) 16.3m3/h (72 gpm, American system)
Head (max. head to min. head) 52m (171ft) 50m (164ft) 48m (157ft)
Efficiency 38% 46% 46%
Inlet diameter 50mm (2 inch)
Outlet diameter 50mm (2 inch)
Installation mode Vertical type or horizontal type
Nominal diameter of impeller 200mm
Pump type Booster pump
Number of stages Single stage
Motor type Y/Y2 series motor
Motor speed 2900rpm
Impeller material 304/316 stainless steel
Seal material 304 stainless steel, tungsten carbide, fluorine rubber
Inlet max. pressure 1MPa (145 psi)
(NPSH)r 2.3m
Usage Water, or liquids compatible with pump component materials.
1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm.
2. The temperature should be lower than 60℃.
Environment Temperature: <40℃, humidity: <95%, altitude<1000m
Warranty 12 months

Vertical centrifugal pump dimension (unit: mm):

Boundary dimension Installation dimension Flange dimension
L B H C1*B1 A C2*B2 4-Φd1 ΦD ΦD1 n-Φd
360 350 615 120*170 100 80*130 4-Φ18 Φ165 Φ125 4-Φ18

vertical centrifugal pump dimensional drawing
Tips: Operation steps of stopping the centrifugal pump

  1. The impeller of the centrifugal pump is the most important component of the centrifugal pump. In order to avoid the water flow backward in stopping, the outlet valve should be closed first to prevent the impeller from being damaged.
  2. After the centrifugal pump stops operating, the inlet valve of the pump should be closed. When the centrifugal pump cools down, the valves of the auxiliary systems should be closed successively, otherwise, the centrifugal pump will be damaged.
  3. The high-temperature centrifugal pump should be stopped according to the technical documents of the equipment. After stopping, it shall be stopped for half a circle in every 20 to 30 minutes until the temperature of the pump drops to 50℃.
    In stopping the low-temperature centrifugal pump, when there is no special requirement, the pump should be filled with liquid, the suction valve and discharge valves should be maintained open. For the low-temperature pump with double mechanical seals, the liquid level controller and the sealant in the pump seal chamber should maintain the pump's grouting pressure.
  4. After turning off the centrifugal pump, we should notice if the noise and vibration generated in pump start-up will disappear quickly as the centrifugal pump is turned off. If it disappears quickly, it proves that there is a stuck phenomenon inside the centrifugal pump and the pump should be checked and maintained in time.
  5. The centrifugal pumps conveying the crystallization, solidification and sedimentation media, blockage should be avoided after stopping the pump. Please use the clean water or other media to wash the pump and pipe timely.
  6. Drain the inventory liquid in the centrifugal pump, avoid corrosion and frost crack.

Attentions:

  1. After stopping the centrifugal pump, the clean work shall still be done well.
  2. In cold weather, especially as to the outdoor pump, the liquid in the pump should be drained immediately to avoid freezing and breaking the pump body.
  3. The reserved centrifugal pump should be regularly started.
