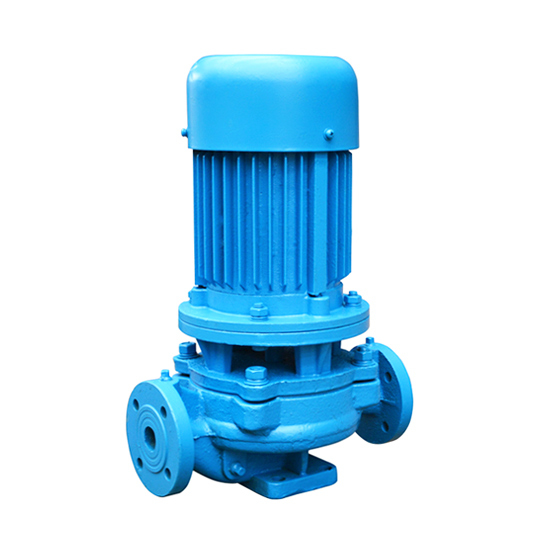

10 hp Vertical Centrifugal Pump

10 hp vertical centrifugal pump adopts single stage impeller, with maximum flow 65m3/h (286 gpm), maximum head 35m (115ft), same diameter of inlet and outlet 80mm (3 inch), optional input voltage 3 phase AC 230V/ 240V/ 380V/ 415V/ 460V/ 480V and optional input frequency 50Hz/60Hz. 10 hp centrifugal pump can be installed in the pipeline for pipeline pressurization, or operate in series or parallel connection for high flow/ high head water supply.
SKU: ATO-VCP-7500W
Free shipping
Delivery date: 6-30 days
*
*
$1,724.54
PRICE BREAKS - The more you buy, the more you save
Quantity 5+ 10+ 50+
Discount 3% OFF 4% OFF 5% OFF

10 hp vertical centrifugal pump with 65m3/h maximum flow, 35m maximum head and 80mm diameter of inlet and outlet.

Features:

  1. The centrifugal pump has the vertical structure. The diameter of the inlet and outlet are the same. And the inlet and outlet are on the same center line, so that the vertical centrifugal pump can be installed in the pipeline like a valve. If a protective cover is added, it can be used in the open air.
  2. It is easy to install and maintain. No need to dismantle pipeline system, just lifting off the conjunction flat nut of vertical pump. Then all the rotor parts can be taken out.
  3. Vertical centrifugal pump can be operating in series or parallel connection according to the requirements of flow and head.
  4. Vertical pump can be installed in vertically type or horizontally type according to the requirement of pipeline system.

Specifications:

SKU ATO-VCP-7500W
Model 80-160
Weight 95kg
Size 400*360*650mm
Power 10 hp (7.5kW)
Phase 3 phase
Input voltage * AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V
Input frequency * 50Hz, 60Hz
Flow (min. flow to max. flow) 35m3/h (154 gpm, American system) 50m3/h (220 gpm, American system) 65m3/h (286 gpm, American system)
Head (max. head to min. head) 35m (115ft) 32m (105ft) 28m (92ft)
Efficiency 63% 71% 70%
Inlet diameter 80mm (3 inch)
Outlet diameter 80mm (3 inch)
Installation mode Vertical type or horizontal type
Nominal diameter of impeller 160mm
Pump type Booster pump
Number of stages Single stage
Motor type Y/Y2 series motor
Motor speed 2900rpm
Impeller material 304/316 stainless steel
Seal material 304 stainless steel, tungsten carbide, fluorine rubber
Inlet max. pressure 1MPa (145 psi)
(NPSH)r 3.0m
Usage Water, or liquids compatible with pump component materials.
1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm.
2. The temperature should be lower than 60℃.
Environment Temperature: <40℃, humidity: <95%, altitude<1000m
Warranty 12 months

Vertical centrifugal pump dimension (unit: mm):

Boundary dimension Installation dimension Flange dimension
L B H C1*B1 A C2*B2 4-Φd1 ΦD ΦD1 n-Φd
400 360 650 140*200 125 100*160 4-Φ18 Φ200 Φ160 8-Φ18

vertical centrifugal pump dimensional drawing
Tips: Daily maintenance of the centrifugal pump

  1. In the operation process of the centrifugal pump, the bearing temperature should not exceed the ambient temperature by 35℃, and the maximum temperature should not exceed 80℃.
  2. Add bearing lubrication oil to the centrifugal pump bearing, observe the oil level to be at the central line of the oil mark, regularly exchange and supplement the lubrication oil.
  3. Screw out the diversion plug screw of the centrifugal pump, fill and diverse water (or tick liquid guiding).
  4. Close the brake valve of the centrifugal pump water outlet, outlet pressure meter and inlet vacuum meter.
  5. Inch the motor of the centrifugal pump, check if the motor revolving direction is correct or not.
  6. Turn on the centrifugal pump motor, and turn on the outlet pressure gauge and inlet vacuum pump when the centrifugal pipeline pump has normal operation, gradually open the brake valve and check the motor load conditions when the gauges show the appropriate pressure.
  7. Try to control the flow and head of the centrifugal pipeline pump within the range indicated on the nameplate to ensure that the pipeline pump runs at a high efficiency point in order to obtain a large energy saving effect.
  8. Immediately stop the machine in case of an abnormall sound of the pipeline.
  9. If the centrifugal pipeline pump is going to be stopped, please firstly turn off the brake valve, pressure gauge and then the motor.
  10. Please check if the pipeline pump, pipeline and the connections have any looseness, rotate the pipeline pump manually to check if the pump is flexible.
  11. Regularly check the wearing condition of the pump sleeve, replace timely in case of a serious wearing.
  12. When the centrifugal pipeline pump is used in severe winter, it is required to unscrew the drainage screw in the lower part of the pump body to avoid frost crack.
  13. If the centrifugal pump is going to be stopped for a long period, the pipeline pump should be completelly dismantled, and dried. The rotary parts and combination parts should be smeared with gear for appropriate storage.
  14. In the first month of the centrifugal pump operation, the lubrication oil should be exchanged every 100 hours, and then every 500 hours.
  15. The centrifugal pump stuffing glland should be regularly regulated to ensure the normal dripping conditions of the stuffing chamber.
