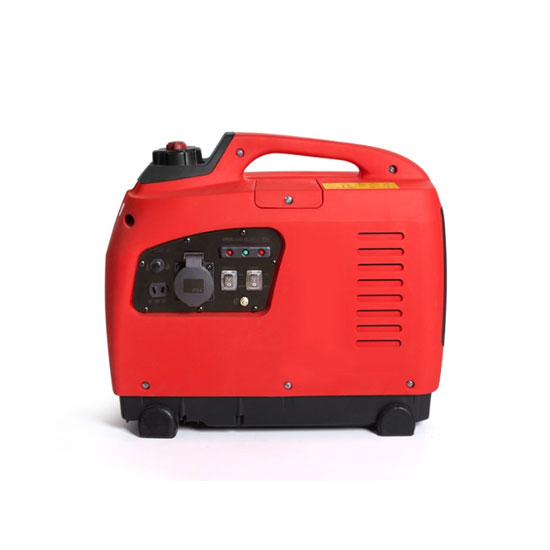

800 Watt Portable Inverter Generator

Low price 800W inverter generator for camping or RV, easy carrier, 58 decibel noise level, make sure you can enjoy the security of power supply in the quiet outdoors. Output voltage can choose AC 110V, 220V, 230V, and 240V, output frequency 50Hz or 60Hz.

Be the first to review this product

SKU: ATO-IG-800

Output Voltage (VAC) *
Output Frequency (Hz) *

$1,082.06

Qty:

Best super quiet portable 800 watt generator inverter for RV, excellent value for money, light weight, most people can move it. AC voltage 110V/230V, output frequency 50/60Hz.

Specificaton

Generator	Model	ATO-IG-800
	Type	Carburetor Generator
	Rated Power	800 Watt
	Max Power	1000 Watt
	Frequency	50Hz/60Hz
	AC Rated Voltage	100V, 110V, 120V,220V, 230V, 240V
	AC Rated Current	8A, 7.3A, 6.7A, 3.6A, 3.5A, 3.3A
	Power Factor	0.8
	DC Voltage	12V
	DC Current	5A
	Fuel Tank Capacity	2.7L
	Noise (7m)	58 dB
Engine	Suitable Temperature Range	-20℃~40℃
	Type	Forced Air Cooled, 1 Cylinder, 4 Stroke, OHV
	Displacement	53cc
	Ignition system	T.D.I
	Recommend Fuel	Unleaded Gasonlie
	Oil Capacity	0.25L
Standard Features	Continous Operating Hour	6 Hours
	Auto Voltage Adjustor	√ Yes
	Oil Alert System	√ Yes
	DC Protector	√ Yes
Dimensions	Starting System	Recoil Starter
	Length	470mm
	Width	255mm
	Height	400mm
	Net Weight	13 kg
Standard function	Fuel Gauge	√
	Voltmeter	×
	Automatic Voltage Regulato	√
	Oil Full or Empty Alarm System	√
	Circuit Breaker Fusion	√
	Circuit Protector	√
	Parallel Connection Box	√
	Digital Display	×

Accessories Packaging

Carton Packaging
User Manual
Oil Filling Pot
DC Lead
Oil Casing
Repair Screwdriver
Spark Plug Copper Sleeve
Spark Plug

Operational Precautions

Please read the instructions carefully before use to prevent injury.
Please run the generator in a well ventilated place.
Do not touch while the inverter generator is running and when it is just stopped.
Please do not connect the wires on the socket, and use the dedicated cable to run in parallel and connect, otherwise it may cause an electric shock.

Features

Maintenance Schedule
Note: Please perform repairs within the specified month or hour, and choose one of the month and hour.

Item	Regular maintenance time (1)	Every time you use	Every month/20 hours	Every three months/50 hours	Every six months/100 hours	Annual/300 hours
Motor oil	Check	√
Motor oil	Replace		√
Air Filter	Check	√
Air Filter	Clean			√ (2)
Muffler Fire Net	Check	√
Muffler Fire Net	Clean		√
Spark Plug	Clean-Adjust				√
Fuel Precipitation Cup	Clean				√
Valve Clearance	Clean-Adjust					√ (3)
Fuel Tank and Filter	Clean					√ (3)
Oil Road	Check	Every two years, if necessary, please (+3)

Note:

Please at the interval of normal maintenance.
Use in areas with serious pollution, please perform frequent repairs.
The above regular maintenance date is calculated according to the ambient temperature of 25 ° C. If the ambient temperature exceeds 30 ° C, please reduce the load power of the engine or shorten the time interval for replacing the oil. (Both can choose one of the operations)

Tips: What is Generator Inverter?
The portable generator inverter uses a very ultra-quiet generator with inverter technology, and its many advantages are unmatched by conventional generators. The key component is its internal inverter. The inverter purifies the original AC generated by the generator, and the current passes through the AC-DC-AC two-stage conversion, so that the voltage output is independent of the engine speed, and the voltage waveform distortion is minimized, and finally converted into clean, smooth AC output. The waveform is a smooth sinusoidal waveform. Therefore, it is enough to run some electrical equipment and instruments that are very sensitive to voltage fluctuations, such as computers. In addition, the unit is equipped with a unique intelligent throttle, which can automatically adjust the speed according to the actual change of the load, so that its fuel consumption is 20%-40% lower than the average unit, and the running time is longer.
