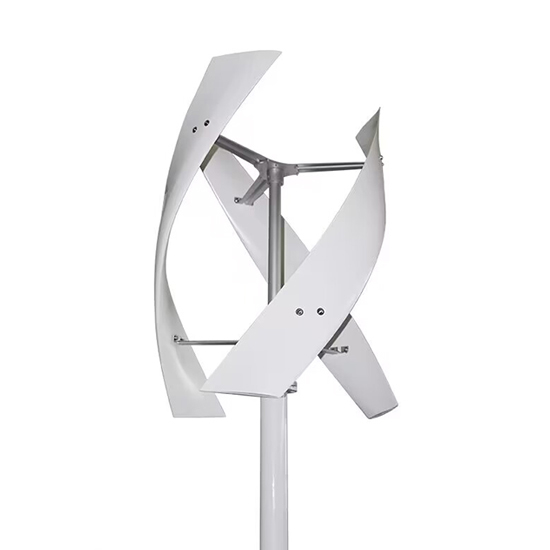

800W Vertical Axis Wind Turbine, 24V/48V/96V

800W Vertical Axis Wind Turbine, 24V/48V/96V

$3,998.76
| 0 review(s) | Add your review
The small 800W vertical axis wind turbine provides a reliable and efficient source of renewable energy, with a rated wind speed of 12m/s and a choice of 24V/48V/96V. ATO vertical axis wind turbines are ideal for use in homes, boats, and wind-powered solar street lights.
Free shipping
Delivery date: 6-12 days
SKU: ATO-VAWT-800
*
increase decrease
  • Overview
  • Reviews
Overview

Low price small 48V vertical wind generator for sale, 800W vertical axis wind turbine blades are made of reinforced fiberglass, 3 blades design generator can effectively use wind resources to obtain higher power generation.


Specification

Model ATO-X9-800
Rated Power 800W
Rated Voltage 24V/48V/96V
With Controller Yes
Start Up Wind Speed 2m/s
Rated Wind Speed 12m/s
Survival Wind Speed 50m/s
Wind Wheel Diameter/Height 0.5m/1.5m
Number of Blades 3
Blades Material Nylon
Fuselage Material Reinforced FRP
Magnetic Steel NdFeB
Generator Type Three-phase AC permanent magnetically suspended generators
Controller System Electromagnetic brakes
Speed Regulation 360° Automatically Adjust Windard
Installation Flange DN20
Degree of protection IP54
Gross Weight 90kg
Dimension 1000*370*410mm + 2200*300*500mm


Dimension
(Unit: mm)

800-1000W vertical axis wind turbine dimension

Applications

The battery is charged by the wind turbine and solar panels through the controller, and the DC output port of the controller directly supplies power to the DC load. On days without wind or light, the power output by the wind turbine and solar panels is not enough to charge the battery, which can cause the battery to be under-voltage. In this case, the controller output dry contact control signal automatically switches to the grid power to supply the load.

Vertical axis wind turbine application

Tips: What is the lifespan of a vertical axis wind turbine?

The lifespan of a vertical axis wind turbine (VAWT) can vary depending on several factors such as the quality of the materials used in its construction, the frequency and intensity of use, and the level of maintenance it receives.

In general, a well-designed and properly maintained VAWT can last up to 20-25 years or more. However, this lifespan can be significantly reduced if the turbine is exposed to harsh environmental conditions such as extreme temperatures, high winds, or corrosive elements.

It's worth noting that VAWTs are still a relatively new technology, and their long-term durability and performance are still being studied and evaluated. As the technology continues to evolve and improve, we can expect to see longer lifespans and better overall performance from these wind turbines.
