80W 12V DC Solar Water Pump

80 watt solar water pump adopts stainless steel single screw structure, with external DC controller, maximum head 28m (90ft), maximum flow 132 gallons per hour (500 lph), 3 inch inlet diameter and 0.75 inch outlet diameter. DC 12 volt DC solar powered water pump can be used for home use, such as small pond, small fountain, water tank or water gardens.
SKU: ATO-SWP-12V80
Free shipping
Delivery date: 6-12 days
$727.27
Products specifications

80W solar water pump with DC controller, 12V working voltage, 132 gph max. flow, 28m max. head.

Specifications:

Basics SKU ATO-SWP-12V80
Shipping weight 15kg
Cable length 2m

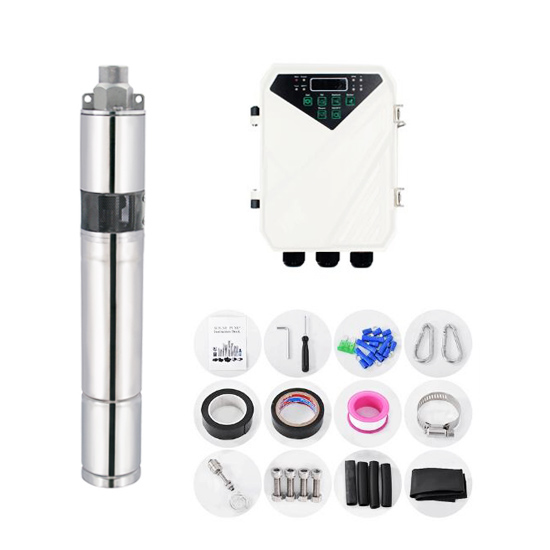

Package included 1 * Solar water pump with 2m cable
1 * DC controller
1 * Stainless steel float switch (water level sensor for the tank)
1 * Pump outlet joint connector
1 * Splice kit for cable join
1 * Splice kit for waterproof
1 * User manual
Warranty 2 years
Solar water pump features Model 3DSS0.5-28-12-80
Voltage 12V DC
Power 80W
Max. flow 0.5m3/h (132 gph, American system)
Max. head 28m (90ft)
Length 60cm
Inlet diameter 3 inch
Outlet diameter 0.75 inch
Screw structure Stainless steel single screw
Internal motor Brushless DC motor
Speed 4000rpm
Material of shaft 304 stainless steel
Material of outlet/connector/oil cylinder Stainless steel
No water protection function The water pump stops working automatically when there is no water in the well, and it will automatically restart working 30 minutes later.
Required open circuit voltage (VOC) of solar panel <50V DC
Required power of solar panel ≥1.3*pump power
Efficiency 45%
Controller features Model DF-12
Best MPPT voltage range 30-48V DC
Max. input current 15A
Working temperature -15~+60℃ (5~140℉)
Display LED display can show power, voltage, current and speed value.
Functions Automatic charging (for battery)
Variable frequency
Automatic power ON/OFF
Soft start
High voltage/low voltage/over-current/high temperature protection
Protection class IP65

80W 12V DC solar water pump performance curves (see dart blue line):
80W 12V DC 3 inch solar water pump performance curves
Solar water pump installation drawing:
80W 12V DC solar water pump installation drawing
Solar water pump wiring diagram:
80W 12V DC solar water pump wiring diagram

Tips: 3 important points for solar water pump installation

  1. The DC controller must match with the recommended solar water pump. Don't use the controller for other pumps.
  2. For the perfect performance and long-life working, the controller should be kept away from strike, shake, sunshine, salt mist, oil mist and etc.
  3. Because of the power loss of cable, try to use the shortest cable when installing a solar water pump. While using longer cable, don't use single-wire to connect solar water pump and DC controller. For example, while the cable length between controller and 12V solar water pump is shorter than 30m, the cable size should be at least 2mm2. While over 30m, the cable size should be at least 4mm2.
