In today's rapidly advancing technological landscape, industrial automation has emerged as a key driver of transformation in manufacturing, enhancing production efficiency, improving product quality, and enabling smarter factories. From automated assembly lines to complex industrial control systems, a vast array of sophisticated equipment and technologies continues to evolve. Within this complex ecosystem, the voltage converter plays a critical, often underappreciated role. It provides stable and suitable power for a wide range of industrial devices, ensuring the efficient and reliable operation of entire automation systems.
Special Power Requirements in Industrial Automation
Industrial environments are diverse and often demanding, covering everything from mechanical processing to high-precision electronics manufacturing. Each type of industrial equipment may have unique power supply requirements.
- Voltage Stability: Many high-precision devices, such as CNC machines or automated inspection instruments, demand extremely stable voltage. Even slight voltage fluctuations can lead to malfunctions or defects. For instance, in semiconductor manufacturing, where chip processing reaches the nanometer scale, minor voltage changes can cause defects, resulting in entire batches being scrapped.
- Voltage Adaptability: On-site power conditions in factories are often inconsistent, with risks such as voltage fluctuations, surges, or harmonics. Different equipment requires different working voltages—some need high voltage to drive motors, while others need lower voltages to safely operate electronic components. This calls for a reliable voltage converter for industrial automation that can adapt to these varying power needs and enhance power quality.
- Reliability and Safety: Industrial systems often run continuously. Any failure in the power supply can halt production and cause significant losses. Moreover, industrial environments pose risks like short circuits or leakage. Hence, power systems must be highly reliable and safe to protect both equipment and personnel.
Working Principle and Types of Voltage Converters
A voltage converter, sometimes referred to as a power converter, is an electronic device that transforms input voltage into a different output voltage, ensuring equipment receives the correct level of power. Its operation is based on electromagnetic induction and modern power conversion technologies.
By using high-speed switching and filtering techniques, a converter can process DC or AC inputs and produce a stable output voltage. For example, switch-mode power supplies (SMPS) convert voltage by chopping the input into high-frequency pulses, transforming and filtering them to produce a regulated DC output.
Common Types of Voltage Converters:
- DC to DC Voltage Converter (DC-DC): Converts one level of DC voltage to another. Widely used to power control modules and sensors. For instance, it can step down 24V DC to 5V or 3.3V for various microcontrollers and logic circuits.

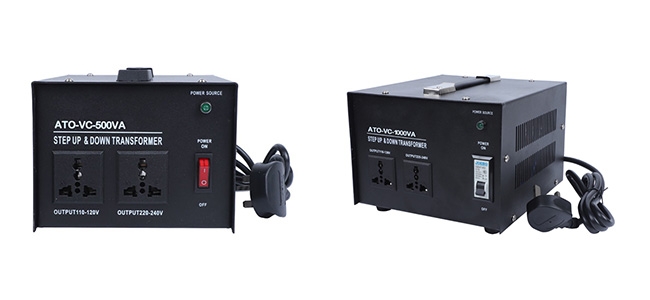

- AC to DC Voltage Converter (AC-DC): Converts AC mains power to DC power. Many industrial devices, such as DC motors or variable frequency drives (VFDs), require a stable DC input. A high-quality 500W voltage converter available on the Inverter Online Store includes built-in step-up/step-down transformers that can convert 110V to 220V or 230V (and vice versa), with input options of 120V or 240V AC.
- AC to AC Voltage Converter (AC-AC): Used to change the voltage and/or frequency of an AC supply. Commonly used in motor speed control. By adjusting the frequency of the input AC, users can achieve stepless speed control of AC motors to meet various industrial process demands.

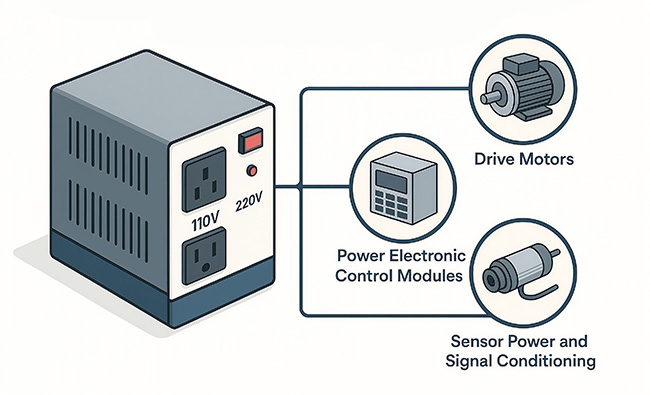

Practical Applications of Voltage Converters in Industrial Automation
Motor Drives
- Motors are the backbone of many automated processes. Different motors—DC, induction, or synchronous—require specific voltages and currents. Voltage converters ensure smooth starting, braking, and variable speed control.
- For example, an AC-AC voltage converter like a VFD can control conveyor belt motors on a production line. Adjusting motor speed in real time improves operational efficiency. Moreover, features like soft start and stop reduce electrical stress and extend motor life.
Powering Control Modules
- Industrial automation relies on electronic control systems like PLCs (Programmable Logic Controllers) and DCS (Distributed Control Systems). These need stable DC power to function correctly. DC-DC converters step down or regulate power to standard levels like 5V, 12V, or 24V.
- A stable power supply ensures accurate signal processing and control actions, critical for system reliability. By isolating noise and disturbances, voltage converters protect sensitive control electronics from upstream electrical interference.
Sensor Power and Signal Conditioning
- Sensors play a vital role in automation, measuring variables like temperature, pressure, or flow. Many require specific power levels and produce low-level signals that must be amplified or conditioned before processing.
- Voltage converters can power sensors and, when paired with signal conditioning circuits, help refine the sensor outputs for accurate system interpretation. For instance, precision DC-DC converters with low ripple and noise are ideal for powering sensitive temperature sensors in high-accuracy environments.
Benefits of Voltage Converters in Industrial Automation
- Enhanced Energy Efficiency: Modern voltage converters employ advanced switching technologies and control algorithms that can achieve power conversion efficiencies exceeding 90%. Compared to traditional linear power supplies, this results in significant energy savings and reduced operational costs, especially in large-scale production settings.
- Improved System Reliability: A good industrial voltage converter offers electrical isolation between the input and output, shielding sensitive loads from noise or spikes. They also feature built-in protections like overvoltage, overcurrent, and short-circuit protection, enhancing system robustness and user safety.
- Flexible Power Configuration: With a wide variety of voltage and current requirements across industrial devices, voltage converters provide the flexibility to tailor power supply levels for each application. Many support multiple output channels, simplifying installation and reducing wiring complexity.
- Adaptability to Harsh Environments: Industrial sites often face challenging conditions—heat, humidity, dust, and vibration. Rugged voltage converters are designed to withstand these elements, featuring sealed enclosures, heat dissipation systems, and anti-vibration structures that ensure long-term reliability even in extreme settings.
Conclusion
As a critical component in industrial automation systems, the voltage converter ensures that machines and electronics receive stable and optimized power. Whether it’s driving motors, powering control units, or conditioning sensor signals, voltage converters contribute to energy efficiency, operational reliability, and system flexibility.
That said, they also face challenges such as electromagnetic interference, heat dissipation, and system compatibility. However, through innovative engineering and design, these challenges can be overcome. As automation continues to evolve, future voltage converters will become more efficient, compact, intelligent, and eco-friendly, further empowering smart manufacturing.
In the grand journey of industrial automation, voltage converters will continue to work silently but effectively, enabling industries to move toward smarter, more efficient production. Home Power Inverter looks forward to seeing more breakthroughs in industrial voltage converter technology, bringing greater convenience, sustainability, and value to both industry and society.
