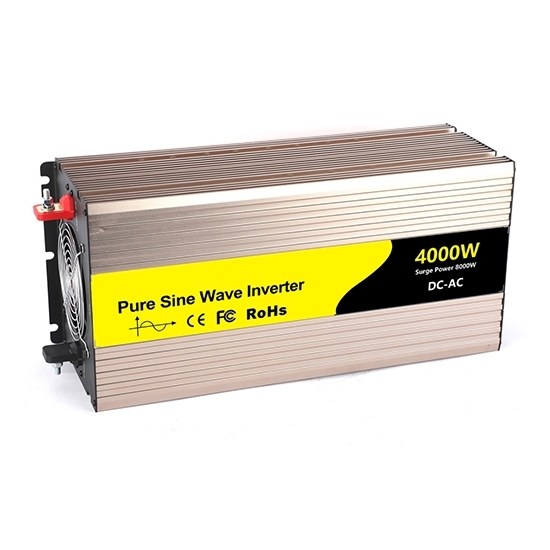

4kW pure sine wave inverter in low price, AC voltage 110V, 120V, 240V, 230V, 220V for selection, protection against overload, short circuit, over voltage, under voltage and over temperature.
Specificaton
| Model |
ATO-PSWI-4000 |
| Output Power |
4000 Watt |
| Peak Power |
8000 Watt |
| Input Voltage |
DC 12V |
| Outlet Type |
Universal socket *2, US Socket * 4 |
| Terminal Output Interface |
*1 |
| Input Voltage |
DC 12V (9.5-15.5V) |
| AC Output Voltage |
1- Phase (L + N, G)= 110V, 230V ±5%
Do Not provide split phase configuration (L1, L2 + N, G)
|
| No-load Current (less-than) |
≤1A |
| Output Frequency |
50Hz or 60Hz |
| Output Wave |
Pure Sine Wave |
| Waveform Distortion |
THD≤3% |
| USB Port |
5V, 2.1A |
| Max Working Efficiency |
95% |
| Undervoltage Protection |
First alarm (breaking alarm sound is one), LED red light flashes, voltage continues to decrease and shut down |
| Overload Protection |
Continuous alarm, LED flashing red, off |
| Over Temperature Protection |
First alarm (broken alarm sound is two), the temperature continues to rise, LED red light flashes and turns off |
| Short Circuit Protection |
Short circuit protection without breaking the circuit |
| Reverse protection |
Fuse blown |
| Undervoltage Alarm Range |
10.5±0.5V |
| Undervoltage Protection Range |
9.5±0.5V |
| Overvoltage Protection Range |
15.5±0.5V |
| Undervoltage Recovery Range |
13±0.5V |
| Overvoltage Recovery Range |
14V±0.2V |
| Operating Temperature |
-10℃~ +50℃ |
| Cooling Way |
Built-in intelligent cooling fan |
| Warranty |
12 Months |
| Storage Temperature |
-30℃~ +70℃ |
| Humidity |
≤90%, non-condensing |
| Dimensions (W*H*D) |
350mm*180mm*130mm
|
| Gross Weight |
9kg |
| Accessories |
4 Pure copper connection wires + 6 spare fuses |
| Display Type |
LCD Display |
Sine Wave Inverter Output Sockets (Optional)
Note: Inverter output voltage is 1-phase (L, N, G) only, Do Not provide split phase configuration (L1, L2 + N, G).
Pure Sine Wave Inverter Remote Control & LCD Display (Optional)
- Pure sine wave power inverter is available with remote control: wired control and wireless control.
- LCD display shows input voltage, output voltage, output frequncy, battery capacity and power.
Features
- Intelligent integrated circuit control
Unique front and rear dual soft start technology, CPU core, SPWM pulse width control technology, special constant power technology, anti-reverse diode technology.
- Pure sine wave
100% pure sine wave output, low distortion, waveform and main power line AC waveform are basically the same, equipment accuracy is small, low interference, low noise, strong load capacity, can meet any type of AC load, without damaging the load.
- Imported parts
The materials are imported components, and the panel uses double-sided circuit boards to ensure high quality and high performance of the products, and to match the excellent quality of the detailed molds.
- Aluminum alloy casing
The surface of the aluminum alloy shell is sprayed and anodized, which is small in size, elegant in appearance and easy to carry.
- Working instructions intuitive working state
When the inverter undervoltage/overvoltage, overload, overtemperature, short circuit, the LED indicator lights.
- Multiple protection functions
- Fault warning/buzzer alarm reminder
When the inverter high voltage, low voltage, over temperature, overload protection function is turned on, once the protection of the inverter is triggered, the inverter disconnects the power supply and the load enters the protection mode for the first time, and issues an alarm through the buzzer alarm device. Make your use more secure.
Applications
Tips: 12V 4000W Pure Sine Wave Inverter with Low Voltage Protection?
4000 Watt 12Volt pure sinusoidal inverter has built-in protection functions such as overload, short circuit, over voltage, under voltage and over temperature, etc., with high reliability. Good physical performance, good heat dissipation performance, surface hard oxidation treatment, good friction resistance, and can resist the extrusion or collision of certain external forces, with strong load adaptability and stability.
