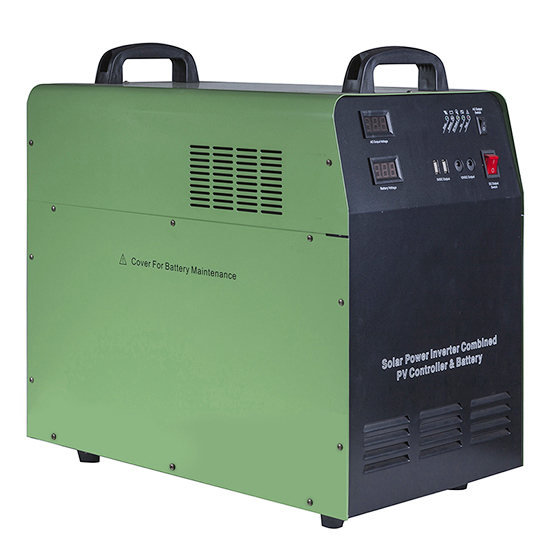

1500 Watt Portable Solar Power Generator, Solar DC System
1500 Watt Portable Solar Power Generator, Solar DC System 1500 Watt Portable Solar Power Generator, Solar DC System 1500 Watt Portable Solar Power Generator, Solar DC System

1500 Watt Portable Solar Power Generator, Solar DC System

$2,456.46
PRICE BREAKS - The more you buy, the more you save
Quantity
1+
5+
10+
50+
Discount
$2,456.46
$2,382.76
$2,358.20
$2,333.63
| 4 review(s) | Add your review
Lower price 1500 watt solar generator for sale online, with large power, maximum power is 720Wp, energy solar generator independent solar three-stage charge management can extend service life. 1500 watt solar generator applies to camping or home use.
Free shipping
Delivery date: 7-10 days
SKU: ATO-AL-1500
*
*
*
increase decrease
  • Overview
  • Reviews
Overview

Solar powered generator with 1500 watt applies to diversified loads, large solar generator with pure sine wave output. Solar power generator can match portable solar panel.

Features:

  • Excellent performance because of an MCU intelligent control technology
  • 1500 watt solar generator with pure sine wave AC output
  • convenient and practical 5V DC-USB output port and 12V DC output port
  • Solar array and battery common-anode system input
  • Charge by the electricity grid for flexible configuration
  • Solar power generator with overcharge protection and over-discharge protection for a longer battery life
  • LCD and LEDs for visualization of operation status of the equipment
  • Solar generator with overall automatic protection and alarms including AC output overload protection, short circuit protection

Parameter List:

Model ATO-AL-1500
Inverter
Battery voltage 24V
ln-built battery specification 2*100AH / 12V
Rated power 1500W
Output voltage 110V or 220V AC (Optional)
Output frequency 50 / 60Hz
Output waveform Pure Sine Wave
Charge by a mains supply
Input voltage 110V or 220V AC (Optional)
Charge current 10A (MAX)
Solar input
Maximum photovoltaic ≤ 50V
Charge voltage (VDC) 20-50V
Rated charge current (A) 30A
Maximum power (Wp) 720Wp
Voltage of overcharge protection (VDC) 28.4V
Voltage of overcharge recovery (VDC) 28V
Voltage of floating charge (VDC) 27.4V
DC output
Voltage of high-voltage protection (VDC) 32V
Voltage of high voltage recovery (VDC) 30.4V
Voltage of low voltage recovery (VDC) 25.2V
Voltage of low voltage protection (VDC) 22V
USB (5V DC) output port 2 ones / MAX 2A
12V DC output port 2 DC ports + backboard 12V terminal block (MAX 8A)
Starting temperature of the exhaust fan > 45 ℃
Ambient temperature for operation 0-40 ℃
Ambient temperature for storage -25 ℃— +55 ℃
Operation/storage conditions 0-90% (no condensation)
External dimensions: DxWxH (mm) 513x310×493
Packing dimension: DxWxH (mm) 610x420x550
Certificate CE
Warranty 1 year

Construction:
Solar generator construction

Application:

Solar generator application

Tips: Uses of Solar Energy

  • Solar electricity. This is one of the solar applications that has gained momentum in recent years. As the cost of solar panels falls and more people realize the economic and environmental benefits of solar power, solar power is becoming more accessible. Distributed solar photovoltaic systems are usually installed on the roof of a home or business. These solar systems generate electricity to offset the owners' use and funnel excess production to the grid. Solar cells can be connected to solar power generation systems, allowing us to use solar energy after the sun goes down, power electric cars overnight, or provide backup power in an emergency. Some homeowners may choose to use solar and battery systems or solar and generator systems entirely off the grid. In some cases, solar pv can be installed on an adjacent structure, such as a barn or installed on the ground and then connected to the meter using underground cables.
  • Solar Lighting. Solar lights have become ubiquitous and can be found everywhere from home landscaping and security lights to road signs and street lights. These solar lighting technologies for home use are inexpensive and easily available from basic to high-end designs.
  • Solar Heating. Typical uses of solar space heating systems include powering radiant floors or pairing with a Forced Hot Air (FHA) system to heat home. Passive solar home designs can also heat homes and businesses in the winter by considering the placement of Windows and the choice of materials used in the building.
  • Solar ventilation. Solar ventilation solutions (such as solar loft fans) can help to cool home during the summer, thereby reducing the HVAC burden. Commercial and industrial applications of solar process heat include solar ventilation technology, which can preheat a building's air in cold climates, thereby reducing energy costs.
