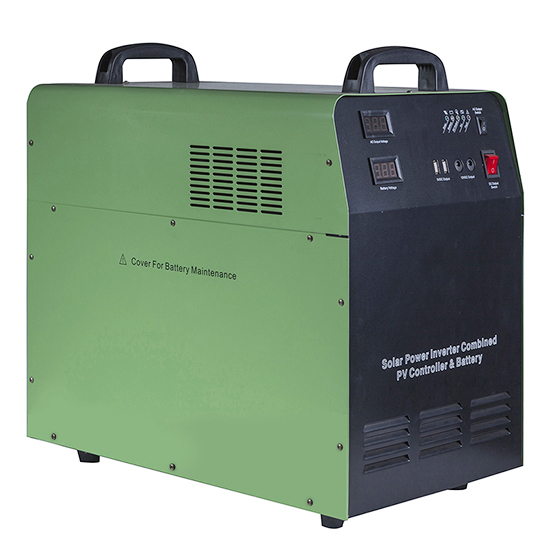

Energy solar generator with 1000 watt for sale, solar portable power supply is convenient and practical, it has LCD and LED to show the operating status of the device. 1000w portable power station widely applies to camping, RV and home use.
Features:
- Excellent performance because of an MCU intelligent control technology
- 1000W solar generator with pure sine wave AC output
- convenient and practical 5V DC-USB output port and 12V DC output port
- Solar array and battery common-anode system input
- Charge by the electricity grid for flexible configuration
- Energy solar generator with overcharge protection and over-discharge protection for a longer battery life
- LCD and LEDs for visualization of operation status of the equipment
- Solar powered generator with overall automatic protection and alarms including AC output overload protection, short circuit protection
Parameter List:
Model |
ATO-AL-1000 |
Inverter |
Battery voltage |
24V |
ln-built battery specification |
2*55AH / 12V, 2*100AH / 12V |
Rated power |
1000W |
Output voltage |
110V or 220V AC (Optional) |
Output frequency |
50 / 60Hz |
Output waveform |
Pure Sine Wave |
Charge by a mains supply |
Input voltage |
110V or 220V AC (Optional) |
Charge current |
10A (MAX) |
Solar input |
Maximum photovoltaic |
≤ 50V |
Charge voltage (VDC) |
20-50V |
Rated charge current (A) |
30A |
Maximum power (Wp) |
720Wp |
Voltage of overcharge protection (VDC) |
28.4V |
Voltage of overcharge recovery (VDC) |
28V |
Voltage of floating charge (VDC) |
27.4V |
DC output |
Voltage of high-voltage protection (VDC) |
32V |
Voltage of high voltage recovery (VDC) |
30.4V |
Voltage of low voltage recovery (VDC) |
25.2V |
Voltage of low voltage protection (VDC) |
22V |
USB (5V DC) output port |
2 ones / MAX 2A |
12V DC output port |
2 DC ports + backboard 12V terminal block (MAX 8A) |
Starting temperature of the exhaust fan |
> 45 ℃ |
Ambient temperature for operation |
0-40 ℃ |
Ambient temperature for storage |
-25 ℃— +55 ℃ |
Operation/storage conditions |
0-90% (no condensation) |
External dimensions: DxWxH (mm) |
423x260×453 |
Packing dimension: DxWxH (mm) |
520x370x520 |
Certificate |
CE |
Warranty |
1 year |
Construction:

Application:

Tips: How do solar generators work?
Solar generators work with solar panels and some form of solar storage. With solar panels, you can use sunlight as a source of power and then store it for later use. Portable solar generators work as a storage solution for the energy produced by solar panels, much like large lithium-ion battery packs used in homes. However, solar generators are smaller and more portable than solar cells.Generators capture energy from solar panels and store it in batteries. The power is then released through an inverter, converting it from DC to AC before discharging.
Like conventional generators that run on diesel or natural gas, solar generators are usually installed as backup power in emergencies. Generators are installed in critical electrical systems in your home. Then, in the event of a power outage, solar generators will take over to provide temporary power to home.
In emergency situations, it is best to limit the use of generators to supply only the most important equipment and appliances, such as lighting, heating, AC and cooling. Limiting the use of generators helps preserve the amount of electricity that solar panels get.
