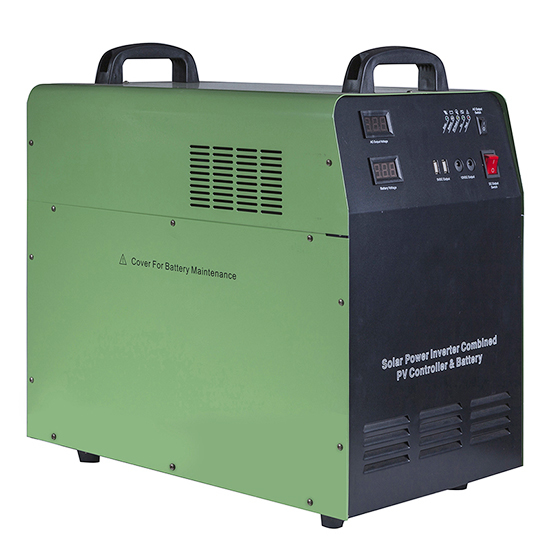

500 Watt Portable Solar Power Generator, Solar DC System

Good price 500W solar generator for sale, 12V battery voltage, charge voltage 10-25V, powerful solar generator with pure sine wave AC output, solar powered generator for house, RV or camping.
SKU: ATO-AL-500
Free shipping
Delivery date: 7-10 days
*
*
*
$869.92
PRICE BREAKS - The more you buy, the more you save
Quantity 5+ 10+ 50+
Discount 3% OFF 4% OFF 5% OFF

500 watt emergency power generator is provided with independent solar three-stage charge management. Most powerful solar generator with overcharge protection and over-discharge protection for a longer battery life and improve charge efficiency of its battery.

Features:

  • Excellent performance because of an MCU intelligent control technology
  • 500W portable power station with pure sine wave AC output
  • convenient and practical 5V DC-USB output port and 12V DC output port
  • Solar array and battery common-anode system input
  • Charge by the electricity grid for flexible configuration
  • Solar powered generator with overcharge protection and over-discharge protection for a longer battery life
  • LCD and LEDs for visualization of operation status of the equipment
  • Solar power generator with overall automatic protection and alarms including AC output overload protection, short circuit protection

Parameter List:

Model ATO-AL-500
Inverter
Battery voltage 12V
ln-built battery specification 1*55AH / 12V
Rated power 500W
Output voltage 110V or 220 V AC (Optional)
Output frequency 50 / 60Hz
Output waveform Pure Sine Wave
Charge by a mains supply
Input voltage 110V or 220V AC (Optional)
Charge current 10A (MAX)
Solar input
Maximum photovoltaic ≤ 25V
Charge voltage (VDC) 10-25V
Rated charge current (A) 30A
Maximum power (Wp) 360Wp
Voltage of overcharge protection (VDC) 14.2V
Voltage of overcharge recovery (VDC) 14.0V
Voltage of floating charge (VDC) 13.7V
DC output
Voltage of high-voltage protection (VDC) 16V
Voltage of high voltage recovery (VDC) 15.2V
Voltage of low voltage recovery (VDC) 12.6V
Voltage of low voltage protection (VDC) 11V
USB (5V DC) output port 2 ones / MAX 2A
12V DC output port 2 DC ports + backboard 12V terminal block (MAX 8A)
Starting temperature of the exhaust fan > 45 ℃
Ambient temperature for operation 0-40 ℃
Ambient temperature for storage -25 ℃— +55 ℃
Operation/storage conditions 0-90% (no condensation)
External dimensions: DxWxH (mm) 423x260×453
Packing dimension: DxWxH (mm) 420x290x490
Certificate CE
Warranty 1 year

Construction:
Solar generator construction

Application:

Solar generator application

Tips: The Benefits of Using Solar Energy

Solar panels are increasingly common with time throughout the world. With the help of solar energy, it becomes an efficient way to counteract the complicated current situation of our planet. The use of solar energy has these benefits:

  • Energy savings. The high cost of conventional energy is based on transportation costs and power generation at utility plants, which the client would be saving completely, since the energy is generated on its own roof, it does not need to be transported.
  • Renewable sources. No matter where we are, we will always have the possibility of generating solar energy for our disposal.
  • Comfort. Compared to other green energy alternatives, solar panels do not generate any of the noise that wind does.
  • Less contamination. Solar panels use sunlight to produce energy, which means they do not produce gases that are harmful to the environment.

All in all, solar panels offer the benefits of both reducing electricity bills and everyday savings, as well as reducing the toxic atmosphere.
