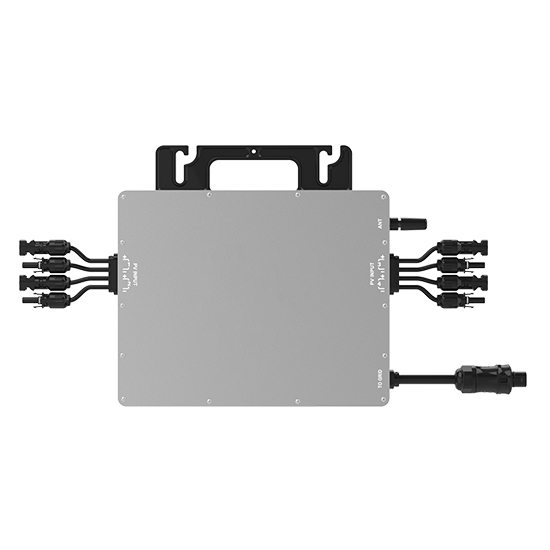

2400 Watt Solar Micro Inverter, Grid-tie Inverter
2400 Watt Solar Micro Inverter, Grid-tie Inverter
2400 Watt Solar Micro Inverter, Grid-tie Inverter
2400 Watt Solar Micro Inverter, Grid-tie Inverter
2400 Watt Solar Micro Inverter, Grid-tie Inverter

2400 Watt Solar Micro Inverter, Grid-tie Inverter

$635.52
PRICE BREAKS - The more you buy, the more you save
Quantity
5+
10+
50+
Discount
3% OFF
4% OFF
5% OFF
| 3 review(s) | Add your review
2400 watt grid tie solar inverter, smart and cheap micro inverter with compact size, operating in a voltage of 22-60V, IP67 waterproof design. Solar cell micro inverter built-in high-performance maximum power point tracking (MPPT) function, accuracy of 99.8%, availably to capture and collect sunlight.
Free shipping
Delivery date: 6-12 days
SKU: ATO-GTMI-2400-WiFi
*
*
increase decrease
Overview

IP67 waterproof 2400 watt micro grid tie solar inverter, it can completely prevent dust from entering and harmful dust accumulation, DC Input connected to PV module, unique circuit design, stable and higher efficiency. MPPT micro inverter plays a crucial role in optimizing the performance of solar energy systems by mitigating issues such as shading, panel mismatch, and system monitoring.


Features:

  • Input/output is fully isolated to protect the electrical safety
  • Flexible installation, operation, and maintenance costs are low
  • High-performance maximum power point tracking (MPPT), reverse power transmission, increasing system efficiency
  • Multiple parallel stacking, digital control system, intelligent monitoring management, and simplified maintenance (user serviceable)

Details:

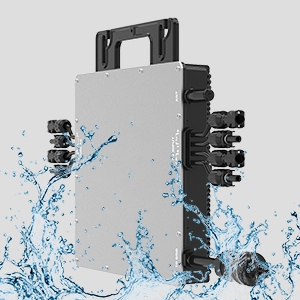

Waterproof connector

Waterproof Protection

The shell of the microgrid inverter is made of pure aluminum alloy with a low resistance copper core. It enhances safety by reducing the risk of electrical hazards, such as short circuits or corrosion due to moisture exposure. They protect against water ingress, preventing damage and ensuring the longevity of the system.

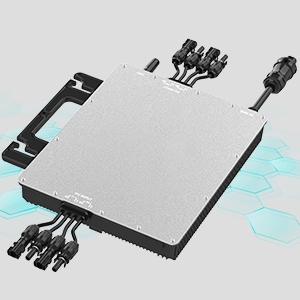

MPPT technology

MPPT

MPPT enhances energy harvest, leading to higher overall system efficiency and increased electricity production. It also improves system reliability by reducing stress on components. Additionally, MPPT allows for more flexible system design, as each panel operates independently, making it easier to expand or modify installations without impacting the overall performance of a 2400W grid tie micro inverter.
Power chip

Power Chip

The pv micro inverter is equipped with a high-speed digital processing chip, which makes the operation more stable. It enhances efficiency by optimizing power conversion processes, minimizing energy losses, and maximizing power output. Multi-channel maximum power point tracking, high-precision capture of solar light.


Applications:

Solar roof

Solar Roof

PV communication station

PV Communication Station

Farming generation system

Farming Generation System

Small power station

Small Power Station

Specs
DC Input Model ATO-GIMI-2400-WIFI
Max Solar Panel lnput Power 4*750W
MPPT Voltage Range (solar panel open circuit voltage range) 33-54V
Starting Voltage ＞22V d.c.
Working Voltage Range 22-60V d.c.
Maximum Input Current 4×23A
Maximum Input Short Circuit Current 4×28A
Maximum Feedback Current Of The Array 0
AC Output Maximum Output Power 2400W
Rated Output Current @120V 20A/@230V 10.5A
Nominal Output Voltage Range @120V a.c. (80-160V AC)/@230V a.c. (180-260V AC)
Nominal Frequency Range 50Hz/60Hz
Power Factor >0.99 default 0.95 leading...0.95lagging
Harmonic Distortion Of Output Current ＜5%
Maximum Number Of Connections Per Branch @120V 2 units/@230V 4 units
Efficiency Peak Microinverter Efficiency 92.70%
CEC Weighted Efficiency 92.50%
Nominal MPPT Efficiency 99.80%
Night Time Power Consumption (mW) 0
Mechanical Data Ambient Temperature Range -20~+50℃
Storage Temperature Range -20~+50℃
Dimensions (LxWxH) 308×297×42mm
Weight 6.34kg
Waterproof Level Outdoor Nema 3r (IP67)
Cooling Method Natural cooling (no fan)
Degree of Pollution PD3
Feature Power Delivery Mode Reverse transmission, load priority
Communication Method WiFi
Rated Transmit Power

802.11b:+17dBm ± 1.5dBm (@11Mbps)

802.11g:+15dBm± 1.5dBm(@54Mbps)

802.11n:+14dBm± 1.5dBm (@HT20, MCS7)
Sureillance System Smart life
Warranty 10 years
Electrical Standard EN 55011:2016+A2:2021;BS EN 55011:2016+A2:2021
CISPR 11:2015/AMD2:2019;
EN IEC61000-3-2:2019+A1:2021; EN IEC 62311:2020
BS EN IEC 61000-3-2:2019+A1:2021;
EN301 489-1 V2.2.3 (2019-11);IEEE 1547A:2014
EN 301 489-17 V3.2.4 (2020-09);
EN 300 328 V2.2.2 (2019-07);
DIN VDE V 0126-1-1 (VDE V 0126-1-1):2013-08;
VDE-AR-N 4105 (VDE-AR-N 4105):2011-08;
DIN VDE V 0124-100 (VDE V 0124-100):2012-07;
IEC 62109-1:2010; IEC 62109-2:2011
DIN VDE 0126-1-1 (VDE V 0126-1-1):2013-08 VFR 2019
UL 1741:2010 Ed.2+R:16Sep2020
CSA C22.2#107.1:2016 Ed.4
ABNT NBR 16149:2013;ABNT NBR 16150:2013
ABNT NBR IEC 62116:2012
ANEXO III - parte 2, Portaria n,° 357, de 01 de agosto de 2014
Bluetooth 2402-2480MHz Bluetooth EIRP Power (Max.) 7.89dBm
Wifi 2.4G 2412-2472MHz Wifi 2.4G EIRP Power (Max.) 18.08dBm
Package G.W 7.9kg (single)
Size 490*350*95mm
FAQ

What are the differences between inverter and transformer?

  • Character. Inverter is a converter that converts DC electric energy into fixed-frequency and constant-voltage or frequency-modulated alternating current (usually 220V, 50Hz sine wave). Transformer is a device that uses the principle of electromagnetic induction to change the AC voltage.
  • Function. Inverter is an electronic device that converts low-voltage (24 or 48V) direct current into 220V alternating current. The main functions of transformer are: voltage transformation, current transformation, impedance transformation, isolation, and voltage stabilization.
  • Application. Inverters are widely used in air conditioners, home theaters, electric grinding wheels, power tools, DVDs, computers, TVs, washing machines, range hoods, refrigerators, video recorders, lighting, etc. Transformers are used in industry, agriculture, transportation and urban communities.
