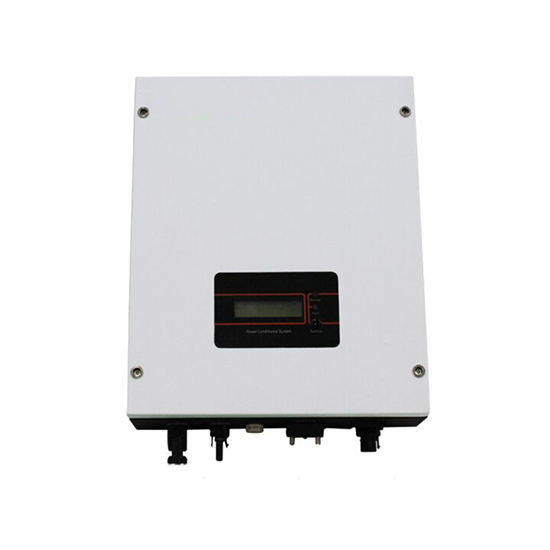

3000W Single Phase Grid Tie Solar Inverter
3000W Single Phase Grid Tie Solar Inverter
3000W Single Phase Grid Tie Solar Inverter
3000W Single Phase Grid Tie Solar Inverter
3000W Single Phase Grid Tie Solar Inverter

3000W Single Phase Grid Tie Solar Inverter

Best price 3000 watt auto 180-500V DC to single phase 190-270V AC sine wave on grid tie inverter for solar energy system, operates in 50Hz / 60Hz low frequency, creative MPPT tech makes efficiency higher than 99%. Without insulated transformer design, strong IP65 protection.
Be the first to review this product
SKU: ATO-GTI-3000
Free shipping
Delivery date: 6-20 days
*
$812.19
Products specifications
Attribute name Attribute value
Installation Guide

PDFSingle-phase Grid Tie Inverter Installation Guide
User Manual

PDFSingle-phase Grid Tie Inverter User Manual

One phase 3000W MPPT grid tie solar inverter for sales, wide DC input voltage range of 180-500 volt, default AC output of 230 volt, other output voltages can be customized.

Features

  • Can be applied to various fields, mainly for solar power, wind power, battery power, and scenery lamp power.
  • Strong IP65 protection, completed sealed cover suitable for harsh environment.
  • Advanced MPPT tracking technology, wide MPPT voltage range.
  • No isolation transformer H6 full-bridge configuration, highest efficiency reach 97%.
  • Over voltage, short circuit, overload, overheating, anti-islanding protection etc.
  • Multiple Inverters can be operated in parallel.
  • LCD display, convenient for user to monitor main parameters.
  • Support various communication modes.

Parameter List

MODEL ATO-LT3000
DC INPUT Max. DC Input Power 3200 watt
Max. DC Input Voltage 500V DC
Max. DC Input Current 13.5A
MPPT Tracking Voltage Range 180-500V
MPPT Tracking Number / Each Input String Number 1
Power ON / OFF Voltage 200V / 100V
Input Terminal MC4
AC OUTPUT Power 3000W
Output Range Single phase AC 190~270V
Adjustable according to different countries and regions requirement.
Rated Voltage 230V AC (Optional: 110V)
Frequency 50Hz / 60Hz
Phase Single phase, 2 hot line (L1, L2+N) can be customized for this 3000W inverter.
Power Factor 1
Maximum Current 13.6A
Current THD At rated power and in the sine wave ＜3.5%
Max. Efficiency 97%
MPPT Efficiency 99.5%
Output Terminal AC connector
STRUCTURE Protection Degree IP65
Cooling Method Natural cooling
Topology No transformer
Noise <50db
Data Interfaces RS 485C / RS232 (Standard) / WiFi Module (Optional)
Isolation Type Non-isolated
Standby Power Consumption 0W
Display LCD dispaly
DC Switch Integration
AC Switch Integration
Protection Functions DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi
ENVIRONMENT Operation Temperature Air Flow, -10℃~40℃
Storage Temperature -20℃~60℃
Relative Humidity 0~100%
Altitude 2000m, max 3000m
OTHERS Size (W*H*D) 335*365*140mm
Weight 17kg
Certificate CE / G83 / IEC / TUV / SAA
Warranty 5 years

Tips: Main parameters of 3kW grid tie inverter

  1.  Max efficiency: It refers to height efficiency we can get from the 3000W on grid inverter, typically it varies between 94-98%, and off course the higher the better.
  2. Rated output power: It measured in Watt or Kilowatt, and refers max power we can get from the inverter.
  3. Rated output voltage: This value refers to utility (electrical distribution system) AC voltage that grid tie inverter will be connected to, and it may be 1-phase or 3-phase.
  4. Maximum input current: It refers to max DC current produced by the solar system, and if current generated by solar system is above this limit, then all excessive current will not be used, it will be useless.
  5. Maximum output current: It refers to max AC current the grid tie inverter can produce, and you will be needing to know this value in order to select over current protection devices like fuses or breaker.

One phase 3000W MPPT grid tie solar inverter for sales, wide DC input voltage range of 180-500 volt, default AC output of 230 volt, other output voltages can be customized.

Features

  • Can be applied to various fields, mainly for solar power, wind power, battery power, and scenery lamp power.
  • Strong IP65 protection, completed sealed cover suitable for harsh environment.
  • Advanced MPPT tracking technology, wide MPPT voltage range.
  • No isolation transformer H6 full-bridge configuration, highest efficiency reach 97%.
  • Over voltage, short circuit, overload, overheating, anti-islanding protection etc.
  • Multiple Inverters can be operated in parallel.
  • LCD display, convenient for user to monitor main parameters.
  • Support various communication modes.

Parameter List

MODEL ATO-LT3000
DC INPUT Max. DC Input Power 3200 watt
Max. DC Input Voltage 500V DC
Max. DC Input Current 13.5A
MPPT Tracking Voltage Range 180-500V
MPPT Tracking Number / Each Input String Number 1
Power ON / OFF Voltage 200V / 100V
Input Terminal MC4
AC OUTPUT Power 3000W
Output Range Single phase AC 190~270V
Adjustable according to different countries and regions requirement.
Rated Voltage 230V AC (Optional: 110V)
Frequency 50Hz / 60Hz
Phase Single phase, 2 hot line (L1, L2+N) can be customized for this 3000W inverter.
Power Factor 1
Maximum Current 13.6A
Current THD At rated power and in the sine wave ＜3.5%
Max. Efficiency 97%
MPPT Efficiency 99.5%
Output Terminal AC connector
STRUCTURE Protection Degree IP65
Cooling Method Natural cooling
Topology No transformer
Noise <50db
Data Interfaces RS 485C / RS232 (Standard) / WiFi Module (Optional)
Isolation Type Non-isolated
Standby Power Consumption 0W
Display LCD dispaly
DC Switch Integration
AC Switch Integration
Protection Functions DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi
ENVIRONMENT Operation Temperature Air Flow, -10℃~40℃
Storage Temperature -20℃~60℃
Relative Humidity 0~100%
Altitude 2000m, max 3000m
OTHERS Size (W*H*D) 335*365*140mm
Weight 17kg
Certificate CE / G83 / IEC / TUV / SAA
Warranty 5 years

Tips: Main parameters of 3kW grid tie inverter

  1.  Max efficiency: It refers to height efficiency we can get from the 3000W on grid inverter, typically it varies between 94-98%, and off course the higher the better.
  2. Rated output power: It measured in Watt or Kilowatt, and refers max power we can get from the inverter.
  3. Rated output voltage: This value refers to utility (electrical distribution system) AC voltage that grid tie inverter will be connected to, and it may be 1-phase or 3-phase.
  4. Maximum input current: It refers to max DC current produced by the solar system, and if current generated by solar system is above this limit, then all excessive current will not be used, it will be useless.
  5. Maximum output current: It refers to max AC current the grid tie inverter can produce, and you will be needing to know this value in order to select over current protection devices like fuses or breaker.
