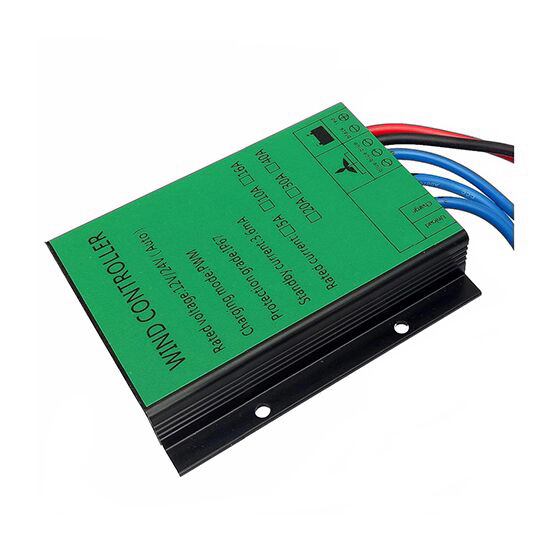

300W Wind Turbine MPPT Charge Controller, 12V/24V
300W Wind Turbine MPPT Charge Controller, 12V/24V 300W Wind Turbine MPPT Charge Controller, 12V/24V 300W Wind Turbine MPPT Charge Controller, 12V/24V 300W Wind Turbine MPPT Charge Controller, 12V/24V

300W Wind Turbine MPPT Charge Controller, 12V/24V

$76.02
| 5 review(s) | Add your review
300W wind turbine controller with 12/24V automatic recognition voltage rated voltage. And it has MPPT charging function. It use PWM electrodeless and noiseless unloading. The working temperature is -20~+60°C 35~85%RH.
Free shipping
Delivery date: 6-12 days
SKU: ATO-WTCMPPT-300
increase decrease
  • Overview
  • Reviews
Overview

300W wind turbine controller has intelligent protection function, sealed and waterproof design, with battery overcharge, overload, fan current limiting and automatic brake protection.

Specification:

Model ATO-WTCMPPT-300
Rated Voltage 12V/24V (Automatic recognition voltage)
Wind Generator Rated Power 300W
Protection Overcharge, overdischarge, reverse connnection of batteries,overloading, lighting, current control, automatic braking
Function MPPT Charging
Unloading Way PWM electrodeless and noiseless unloading
Working Temperature -20~+60°C 35~85%RH
Dimension 80*80*15mm
Net Weight 0.4kg

Note: The controller needs to be selected according to the power of the wind turbine and the battery voltage.Max voltage setup: 12.4V for 12V batteries, 29V for 24V batteries, and 58 for 48V batteries.

Features:

1. High quality technical components ensure the stability and reliability of the wind turbine controller.
2. Waterproof and dustproof, the controller can be used in various outdoor environments.
3. Voltage/current control charging ensures that the battery is always charged.
4. The MPPT charging effect is to collect electrical energy from the generator and charge the battery.
5. Use PWM to unload excess electron energy to protect the battery and ensure the safety of the wind generator.

Wind Power System Connection Diagram:

wind power system control schemes

Tips:
When purchasing an MPPT charge controller, please provide the following information so we can suggest the right product to match your configuration: rated voltage of batteries and rated output power of wind generator.
