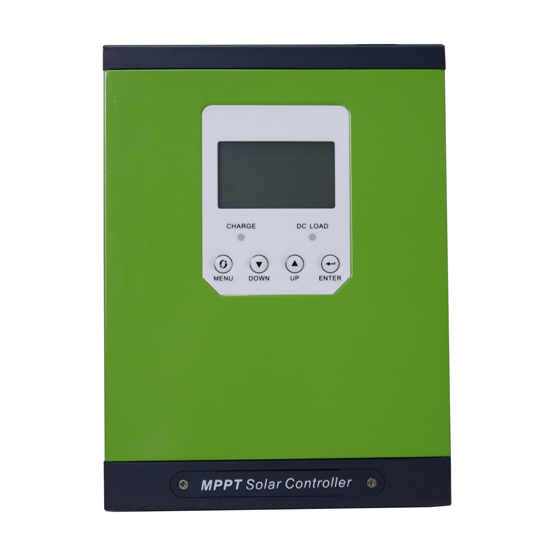

40 Amp 96V MPPT Solar Charge Controller

High efficiency MPPT solar charge controller 40A 96V, max. PV input power 5540W, equipped with LCD display, multi-protection function, 3-stage charging method for fast and safe battery charging, easy to use, long lifespan and excellent performance.
SKU: ATO-MPPT-40A96
Free shipping
Delivery date: 6-12 days
$653.85
Products specifications

Features

  • 40 Amp 96V MPPT solar charge controller, maximum PV input power 5540W.
  • LCD display real-time power generation and current, daily power generation, cumulative power generation and fault record.
  • Adopting the advanced MPPT algorithm to track the maximum power point of solar power generation in real time, high charging efficiency over 98.5% and tracking accuracy over 99.73%.
  • Support lead-acid batteries, colloidal batteries and lithium batteries. 3-stage battery charging for efficiency and safety.
  • Battery temperature sensor (BTS) automatically provides temperature compensation to ensure the controller's life.
  • Multiple protection including PV array short circuit, overvoltage, and overcurrent reverse polarity protection; battery overcharge, reverse connection, under voltage protection.

Specification

Model ATO-MPPT-40A96
Rated Voltage 96V
Rated Current 40 Amp
Maximum Protection Current 42 Amp
Battery Voltage Identification Range DC 72V-120V
MPPT Operating Voltage Range DC 130V-180V
Maximum PV Input Power 5540W
PV Input Low Voltage Protection Point DC 120V
PV Input Low Voltage Recovery Point DC 130V
Limit Input Voltage DC 225V
PV Input Overvoltage Protection Point DC 230V
PV Input Overvoltage Recovery Point DC 225V
Charging Method 3 stage: constant current (MPPT), equalize charge, float charge
System Type 96V Automatic identify
Static Power Consumption 2W
Machine Efficiency 96.50%
PV Module Utilization 99.97%
Float Charge Voltage 110V (Can be customized)
Equalize Charge Voltage 113.6V (Can be customized)
Recommanded PV Module Voltage 144V-180V
Temperature Compensation -3mV℃/2V
Temperature Protection 85℃
Temperature Rise Protection 80℃ or more to reduce power output
Protective Function PV array short circuit, overvoltage, overcurrent reverse polarity protection; battery overcharge, reverse connection protection, under voltage protection
Working Temperature -10℃ ~ +45℃
Humidity 0~90% RH (no condensation)
Altitude 0~3000m
Security Level CE, PSE, FCC, EMC
Mechanical Protection Class IP21
Optional Battery Type* Lead-acid battery (Factory default), colloidal batteries, liquid batteries, lithium batteries (Also can be customized for other types of battery charging)
Product Size 260*192*80mm
Weight 3.9kg

Note:

* If you need this controller for charging the lithium battery, please contact us in advance and provide us the parameters of your lithium battery including equalize charge voltage, float charge voltage, maximum charge current, end-of-discharge voltage, and recovery voltage, so as to help you choose a most suitable charger controller.

Wiring Diagram

MPPT solar charge controller connection diagram

Tips: Three-Stage Charging Mode of MPPT Solar Controller

  • MPPT current limiting charging
    When the initial charging starts, when the battery terminal voltage of the system reaches a small value, the MPPT charging method is adopted, and the output power of the photovoltaic battery is drawn to the battery terminal. When the sunlight is strong, the output power of the photovoltaic cell is greatly increased, and when the charging current is quickly reached the threshold, the MPPT is stopped and transferred to the constant current charging mode. When the light intensity is weak and the constant current is difficult, it is transferred to the MPPT charging mode, so that it is freely switched until the battery terminal voltage rises to reach the saturation voltage Ur, and the battery enters the constant voltage charging phase. Through the mutual cooperation and automatic switching of the MPPT charging mode and the constant current charging mode, the solar energy can be fully utilized to quickly charge the battery.
  • Constant voltage current limiting charging
    At this stage, the charging voltage value is always Ur, and the charging current gradually decreases as the electrochemical reaction inside the battery progresses. When the charging current drops to about 0.01 C, the constant voltage charging is terminated and the floating charging phase is entered. Current limiting treatment is also performed during the constant voltage phase to protect the battery.
  • Floating charge
    The battery is floated with a voltage Uf slightly smaller than the constant voltage. This stage is mainly used to supplement the energy consumed by the battery self-discharge, which indicates the end of the charging process.
