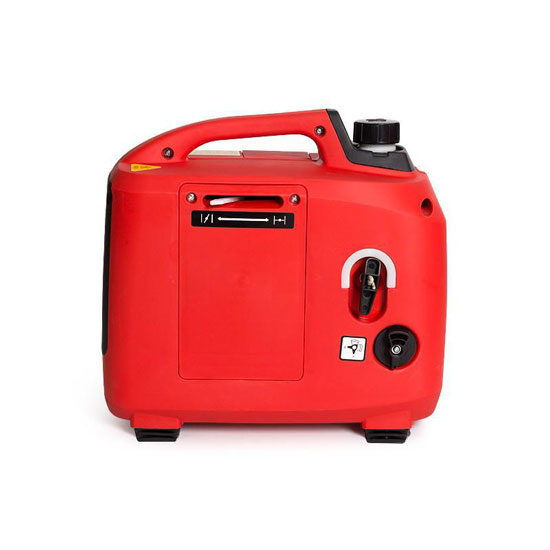

500 Watt Portable Inverter Generator

Small 500 watt portable inverter generator for sale, rated frequency 50/60Hz, AC rated voltage 110V/230V//240V/230V is optional, it generates less than 60 decibels, portable inverter generator runs very quietly, reliable, durable and safe.
SKU: ATO-IG-500
*
*
$958.29

Cheap super quiet 500W invetrer generator, AC voltage 120V/100V/110V/230V can be selected, 58 dB, rated frequency 50/60Hz, it not only can satisfy can meet your outdoor activities, but also suitable for home use.

Specificaton

Generator Model ATO-IG-500
Type Carburetor Generator
Rated Power 500 Watt
Max Power 650 Watt
Frequency 50Hz/60Hz
AC Rated Voltage 100V, 110V, 120V, 220V, 230V, 240V
AC Rated Current 6A, 5.4A, 5A, 2.7A, 2.6A, 2.1A
Power Factor 0.8
DC Voltage 12V
DC Current 3A
Fuel Tank Capacity 1.5L
Noise (7m) 58 dB
Engine Suitable Temperature Range -20℃~40℃
Type Forced Air Cooled, 1 Cylinder, 4 Stroke, OHV
Displacement 31cc
Ignition system T.D.I
Recommend Fuel Unleaded Gasonlie
Oil Capacity 0.15L
Standard Features Continous Operating Hour 3.5 Hours
Auto Voltage Adjustor √ Yes
Oil Alert System √ Yes
DC Protector √ Yes
Dimensions Starting System Recoil Starter
Length 360mm
Width 225mm
Height 310mm
Net Weight 9 kg
Standard function Fuel Gauge
Voltmeter ×
Automatic Voltage Regulato
Oil Full or Empty Alarm System
Circuit Breaker Fusion
Circuit Protector
Parallel Connection Box
Digital Display ×

Accessories Packaging

  1. Carton Packaging
  2. User Manual
  3. Oil Filling Pot
  4. DC Lead
  5. Oil Casing
  6. Repair Screwdriver
  7. Spark Plug Copper Sleeve
  8. Spark Plug

Operational Precautions

  • Please read the instructions carefully before use to prevent injury.
  • Please run the generator in a well ventilated place.
  • Do not touch while the inverter generator is running and when it is just stopped.
  • Please do not connect the wires on the socket, and use the dedicated cable to run in parallel and connect, otherwise it may cause an electric shock.

Features
inverter generater features



Maintenance Schedule
Note: Please perform repairs within the specified month or hour, and choose one of the month and hour.

Item Regular maintenance time (1) Every time you use Every month/20 hours Every three months/50 hours Every six months/100 hours Annual/300 hours
Motor Oil Check
Replace
Air Filter Check
Clean     √ (2)
Muffler Fire Net Check
Clean
Spark Plug Clean-Adjust
Fuel Precipitation Cup Clean
Valve Clearance Clean-Adjust         √ (3)
Fuel Tank and Filter Clean         √ (3)
Oil Road Check Every two years, if necessary, please (+3)

Note:

  1. Please at the interval of normal maintenance.
  2. Use in areas with serious pollution, please perform frequent repairs.
  3. The above regular maintenance date is calculated according to the ambient temperature of 25 ° C. If the ambient temperature exceeds 30 ° C, please reduce the load power of the engine or shorten the time interval for replacing the oil. (Both can choose one of the operations)

Tips: What are The Advantages of an Inverter Generator?
The inverter generator has the advantages of fuel saving, low emission, stable operation and long service life. The portable inverter generator is reliable in quality, wide in application, light in design, high quality power output, excellent mute effect, excellent fuel economy, unique parallel operation, beautiful output waveform, and high quality. Repair and maintenance services.
