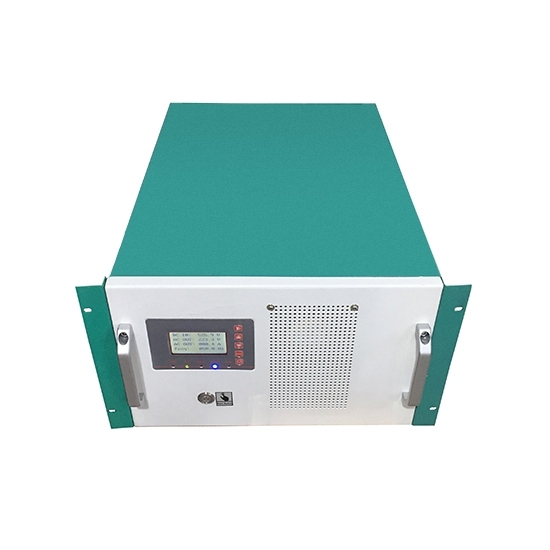

5000W Marine Inverter

LCD Screen

The front screen works as a built-in instrument panel. Operators can check DC input voltage, output frequency, phase voltage, phase current, mains bypass voltage, total output energy (kWh), time, temperature, and fault messages without extra meters. A row of status lights, a five-key keypad, and a separate Start Switch complete the control area, making routine checks quick and power-up deliberate.

Front and Rear Views

Viewed from above, the 5000W boat inverter shows how heat is managed. The front panel features a broad grille of small round ventilation holes, and the rear panel adds more openings alongside the breakers and cable entries. Together, they give the internal fan a clear path for moving heat away from the transformer and power electronics, which matters at 5 kW. Leave both faces open and keep surrounding space free of cables, covers, and stored gear.

Metal Enclosure

The marine power inverter sits inside a heavy-duty painted metal housing. This sturdy, durable structure provides excellent impact and vibration resistance, so the electronics stay protected against engine vibration, wave motion, and the occasional knock during maintenance. Rack ears and side handles make it easy to secure in place or slide out for service. As an IP20 unit, it belongs in a dry, ventilated equipment space.

Features

1. Transformer Isolation: The low-frequency isolation transformer separates AC from DC and helps the unit tolerate interference and electrical shock.
2. Pure Sine Wave Output: Total harmonic distortion stays under 3% on linear loads, so appliances, chargers, and electronics get stable, interference-free power.
3. High Surge Reserve: Up to 7.5 kW for 5 seconds, plus soft-start, supports pumps, fans, and compressor loads at startup.
4. DSP Digital Control: A DSP28335 chip provides fast, precise regulation and conversion efficiency above 92%.
5. Order-Time Configuration: Pick the output voltage and frequency, and add RS485 if you want to connect the inverter to onboard monitoring.
6. Built-In Protection: Reverse polarity, input under/over-voltage, over-current, short circuit, and overheating are covered, with faults displayed on the LCD.

Use Cases

• Large Passenger and Excursion Boats: Supplies cabin systems, lighting, and passenger-service equipment from a high-voltage battery bank.
• Electric Workboats and Harbor Craft: Runs tools, refrigeration, and onboard electronics for tugs, service boats, and utility vessels.
• Motor Yachts and Catamarans with Full-Electric Systems: Covers hotel loads such as air conditioning, cooking, and water heating without a generator.
• Floating Platforms and Pontoon Facilities: Provides steady AC for floating docks, cafés, and event platforms away from shore power.

Application Scenarios

Yachts and Sailboats

Solar Energy Marine Systems

Marine Navigation & Communication Systems

Deep-sea Fishing Vessels

Q1: What kinds of loads can the 5000W marine inverter support?

Anything that fits within 5000W continuous: for example, air conditioning, an induction cooktop, a water heater, and navigation electronics, as long as they do not exceed the combined rating. Add up the running power of everything that may be on at once, then leave some margin for motor starting.

Q2: How much starting surge can it handle?

The inverter can deliver 150% of rated power, or 7.5 kW, for 5 seconds, and it includes a soft-start function. That covers many pumps and fans, but compressors vary, so compare the motor's starting current with this rating.

Q3: Are there any installation or maintenance points to keep in mind?

Install it in a dry, ventilated compartment away from direct sunlight and spray, since it is rated IP20. The warning label on the unit advises keeping clearance around it, not connecting the cabinet's PE ground to the neutral conductor, and cleaning dust from the fan and heat sink periodically after the first six months of use.

Q4: Should I choose the 5000W or the 4000W model?

Choose based on total simultaneous load and battery voltage. The 4000W model works with a 120V bank, while the 5000W model uses a 144V bank and adds capacity for heavier combinations of appliances. If your peak load is close to 4000W, the larger unit gives more headroom.
