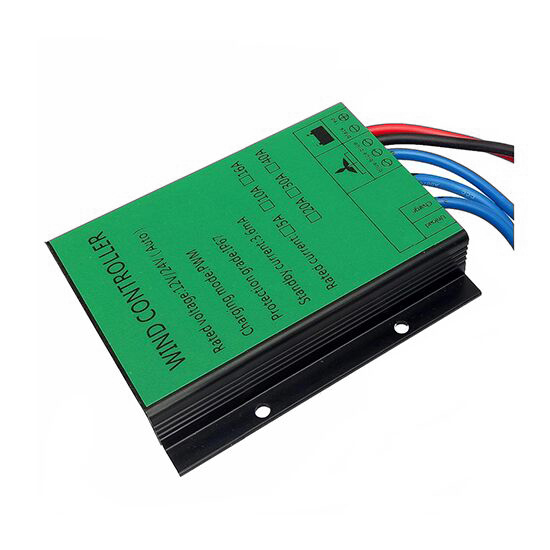

500W Wind Turbine MPPT Charge Controller, 12V/24V
500W Wind Turbine MPPT Charge Controller, 12V/24V 500W Wind Turbine MPPT Charge Controller, 12V/24V 500W Wind Turbine MPPT Charge Controller, 12V/24V 500W Wind Turbine MPPT Charge Controller, 12V/24V

500W Wind Turbine MPPT Charge Controller, 12V/24V

$99.82
| 2 review(s) | Add your review
Wind charge controller for wind turbine, MPPT control, cheap price, rated power 500W, 12 volt or 24 volt, It can be used to protect wind turbines and prevent overcharging of batteries. Wind controller automatically recognizes 12V/24V battery.
Free shipping
Delivery date: 6-12 days
SKU: ATO-WTCMPPT-500
increase decrease
  • Overview
  • Reviews
Overview

12 Volt wind power charge controller for sale, mppt control, effectively ensure fan power output, good charging effect, affordable price, voltage 12V or 24V, manufacturer direct sales.

Note: The controller needs to be selected according to the power of the wind turbine and the battery voltage. Max voltage setup: 12.4V for 12V batteries, 29V for 24V batteries, and 58 for 48V batteries.

Specification:

Model ATO-WTCMPPT-500
Rated Voltage 12V/24V (Automatic recognition voltage)
Wind Generator Rated Power 500W
Protection Overcharge, overdischarge, reverse connnection of batteries,overloading, lighting, current control, automatic braking
Function MPPT Charging
Unloading Way PWM electrodeless and noiseless unloading
Working Temperature -20~+60°C 35~85%RH
Dimension 100*80*15mm
Net Weight 0.4kg

Features:

1. High quality technical components ensure the stability and reliability of the wind turbine controller.
2. Waterproof and dustproof, the controller can be used in various outdoor environments.
3. Voltage/current control charging ensures that the battery is always charged.
4. The MPPT charging effect is to collect electrical energy from the generator and charge the battery.
5. Use PWM to unload excess electron energy to protect the battery and ensure the safety of the wind generator.

Wind Power System Connection Diagram:

wind power system control schemes
