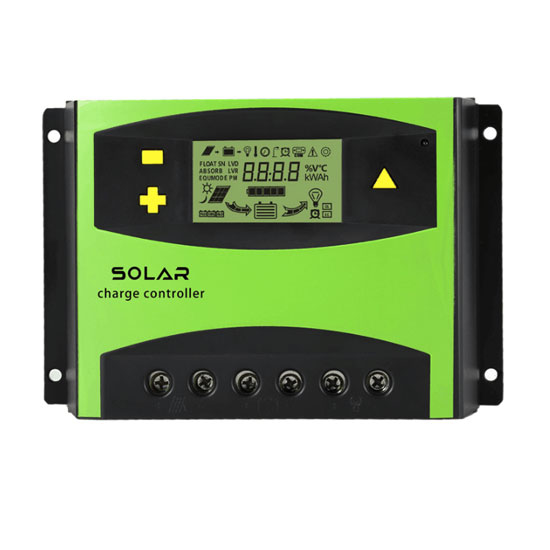

50A 12V/24V/48V PWM Solar Charge Controller

Low price 50 Amp auto PWM solar charge controller on sale, LCD display, intelligent pwm charge mode, automatic identification of 12V/24V/48V, it can display current, voltage, temperature, power, light control time, etc.
SKU: ATO-PWM-50
Free shipping
Delivery date: 6-12 days
*
$92.46
Products specifications
Attribute name Attribute value
User Manual

PWM solar charge controller PWM Solar Charge Cotroller User Manual

50A smart PWM solar charge controller for 12V/24V/48V batteries, auto swich DC 12V/24V.48V, light weight, beautiful appearance and fast heat dissipation.

Specification:

Model ATO-LS-50
System Voltage DC 12V/24V, DC 24V/48V,automatically switch
The Max Voltage of The Solar Panel Input 50V (12V/24V), 100V (24V/48V)
Self Los ≤13mA
Max Charge Current 20A
Max Discharge Current 20A
LVD (9-11V), 21V (18-22V), 42V (36-44V)
LVR 12.6V (11-13.5V), 25.2V (22-27V), 50.4V (44-54V)
Floating Voltage 13.8V (13-15V), 27.6V(26-30V), 55.2V(52-60V)
Increase the Charge 14.4V/28.8V/57.6V, the battery voltage is below 12V/24V/48V, start extra charge for 2 hours
Batterry overpressure protection 15V/30V/60V
Input Reverse Connection Protection Yes
Load Over Current Protection Yes, every two seconds to restart
Charging Mode PWM
Temperature Compensation -24mV℃, -48mV℃, -96-mV℃, relative to 12V/24V/48V System
Operating Temperation -20℃- +55℃
Terminal Scale 28-10AWG
Waterproof level IP 32
Product Size 195mm*107mm*59mm
Weight 850g

 50A 12V/24V/48V PWM Solar Charge Controller Features

  • Automatic identification system voltage 12V/24V or 24V/48V.
  • Personalized LCD display and two-button operator and page.
  • High performance PWM three-stage charging.
  • You can choose to load the control template and set the streetlights in the world at night.
  • With overvoltage, short circuit, overload, overcharge, over discharge protection.
  • Accurate temperature compensation, correct charging and discharging voltages automatically extend battery life.
  • The default setting can be reset when the controller with the parameter set is powered off.
  • The positive and negative terminals of the input terminal are reversely connected to protect.

Circuit Diagram
PWM solar charge controller circuit diagram

Tips: Solar Street Light Controller Replacement Common Sense

  • Whether the light source has a built-in drive. If the light source itself has a drive, the controller uses a normal solar street light controller. If there is no driving power in the light source, then you must purchase a constant current control integrated machine.
  • The arrangement of the light source bead. If it is more than 3 strings, use the step-down street lamp controller, 4 or more strings, and use the step-up solar street lamp controller, up to 14 strings.
  • Solar power. If the power of the solar controller is less than 150W, use a 10A controller and use a 20A controller between 150W and 250W.
  • Type of battery. Know whether it is a lead acid or gel battery, or a lithium battery. The type of battery is different, and the controller selection is different because the battery charging parameters are different.
  • The power of the light source. If it is 30W or less, use 10A current controller. If it is 30W~60W with 20A controller, here is the 12V system voltage, and the power is multiplied by 2 when 24V voltage.

50A smart PWM solar charge controller for 12V/24V/48V batteries, auto swich DC 12V/24V.48V, light weight, beautiful appearance and fast heat dissipation.

Specification:

Model ATO-LS-50
System Voltage DC 12V/24V, DC 24V/48V,automatically switch
The Max Voltage of The Solar Panel Input 50V (12V/24V), 100V (24V/48V)
Self Los ≤13mA
Max Charge Current 20A
Max Discharge Current 20A
LVD (9-11V), 21V (18-22V), 42V (36-44V)
LVR 12.6V (11-13.5V), 25.2V (22-27V), 50.4V (44-54V)
Floating Voltage 13.8V (13-15V), 27.6V(26-30V), 55.2V(52-60V)
Increase the Charge 14.4V/28.8V/57.6V, the battery voltage is below 12V/24V/48V, start extra charge for 2 hours
Batterry overpressure protection 15V/30V/60V
Input Reverse Connection Protection Yes
Load Over Current Protection Yes, every two seconds to restart
Charging Mode PWM
Temperature Compensation -24mV℃, -48mV℃, -96-mV℃, relative to 12V/24V/48V System
Operating Temperation -20℃- +55℃
Terminal Scale 28-10AWG
Waterproof level IP 32
Product Size 195mm*107mm*59mm
Weight 850g

 50A 12V/24V/48V PWM Solar Charge Controller Features

  • Automatic identification system voltage 12V/24V or 24V/48V.
  • Personalized LCD display and two-button operator and page.
  • High performance PWM three-stage charging.
  • You can choose to load the control template and set the streetlights in the world at night.
  • With overvoltage, short circuit, overload, overcharge, over discharge protection.
  • Accurate temperature compensation, correct charging and discharging voltages automatically extend battery life.
  • The default setting can be reset when the controller with the parameter set is powered off.
  • The positive and negative terminals of the input terminal are reversely connected to protect.

Circuit Diagram
PWM solar charge controller circuit diagram

Tips: Solar Street Light Controller Replacement Common Sense

  • Whether the light source has a built-in drive. If the light source itself has a drive, the controller uses a normal solar street light controller. If there is no driving power in the light source, then you must purchase a constant current control integrated machine.
  • The arrangement of the light source bead. If it is more than 3 strings, use the step-down street lamp controller, 4 or more strings, and use the step-up solar street lamp controller, up to 14 strings.
  • Solar power. If the power of the solar controller is less than 150W, use a 10A controller and use a 20A controller between 150W and 250W.
  • Type of battery. Know whether it is a lead acid or gel battery, or a lithium battery. The type of battery is different, and the controller selection is different because the battery charging parameters are different.
  • The power of the light source. If it is 30W or less, use 10A current controller. If it is 30W~60W with 20A controller, here is the 12V system voltage, and the power is multiplied by 2 when 24V voltage.
