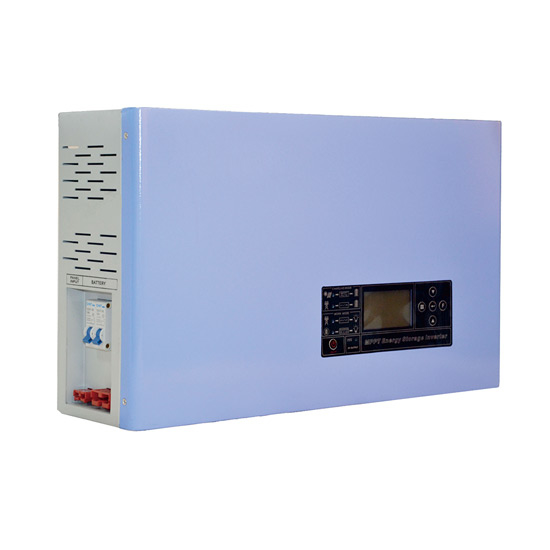

6000W 48/96V Solar Inverter with MPPT Charge Controller
6000W 48/96V Solar Inverter with MPPT Charge Controller
6000W 48/96V Solar Inverter with MPPT Charge Controller
6000W 48/96V Solar Inverter with MPPT Charge Controller

6000W 48/96V Solar Inverter with MPPT Charge Controller

6000 watt hybrid off grid inverter on sales, pure sine wave AC output, built-in 60 amps MPPT (Maximum Power Point Tracking) charge controller, LCD screen display, converts 48V/ 96V DC to 110V/ 230V AC, conversion efficiency is up to 88% with power saving mode.
Be the first to review this product
SKU: ATO-IC-6000
Free shipping
Delivery date: 6-12 days
*
*
*
$2,158.63
Products specifications
Attribute name Attribute value
User Manual

PDFSolar Inverter with MPPT Charge Controller User Manual

48 volt, 96 volt DC pure sine wave solar inverter with MPPT charge controller, 6000W (8000VA) rated power, 60 amps battery max charge current, perfect protection functions. LCD display is presenting statues of all parts in real time. Buy a low price inverter with MPPT charge controller online.

6000W Solar Inverter with MPPT Charge Controller Parameter List

Model ATO-IC-6000
Rated capacity 6000W (8000VA)
Size 555*390*195mm
Net Weight 43kg
Function Setting Time & date setting, Contrast, lightness, Switch voltage, Grid charge, Clear records, Operating parameter, Discharge limited setting, Reset
Working mode Grid priority/ Battery priority (optional)
Charge mode PV priority/ PV+grid (optional)
LCD dislpay Internal and External temperature, record query (fault record), system information query
PV input Voltage range 12V DC (18V-150V DC), 24V DC (34V-150V DC), 48V DC (65V-150V DC), 96V DC (130V-180V DC)
Battery max charge current 60A
Battery volatge 48V/ 96V
Max power load 3400W/ 6800W
Float voltage 12V (13.75V), 24V (27.5V), 48V (55V), 96V (110V)
Equalization voltage 12V (14.2V), 24V (28.4V), 48V (56.8V), 96V (113.6V)
Grid Input Battery type Lead acid/ gel/ lithium (optional, factory setting)
Charge current 0-30A
Charge mode Improve charge, direct charge, float charge
AC Output AC charge current Standard: 0-30A
AC output voltage 110/ 220/ 230/ 240V ±3%
AC output frequency 50Hz/ 60Hz
Conversion Efficiency ≥85%
Overload 105-120% 30s, 120-150% 10s,>150% 5s
Output form Pure sine wave
Output power factor ≥0.8
Wave form distortion ≤3%
Switching time ≤4ms
Protection Function Overload capacity 105-120% 30s, 120-150% 10s,>150% 5s
Over discharge 10.5V (12V) DC/ 21V (24V) DC/ 42V (48V) DC/ 84V DC shut down after alarm
Over charge 16V (12V) DC/ 32V (21V) DC/ 64V (48V) DC/ 128V DC shut down after alarm
High temperature 85℃ auto shut down after alarm
Short circuit Auto shut down
Others Cooling method Fan cooling
Noise <60 dB
Operating temperature -10℃-50℃
Environment humidity 10%-90% (No condensation)
Working Elevation <5000m (>1000m, derating)

Solar Inverter with MPPT Charge Controller Working Mode Instructions

Solar inverter with MPPT charge controller work mode instructions

Tips: Key factors of selecting a solar inverter

1. Rated power

The rated power of the selected solar inverter should match the maximum power of the solar cell array. Generally, the rated output power of the photovoltaic inverter is about the same as the total input power, which can save costs.

2. Key technical indicators

  • Select the appropriate input and output voltage range to ensure the optimal combination of products.
  • Efficiency of solar inverter: Its level will directly affect the design cost and power generation efficiency of photovoltaic power generation system.
  • Solar cell array maximum power tracking function (MPPT) and its efficiency.
  • Attention should be paid to the selected inverter should have basic protection functions, such as over current/ short circuit protection, over power protection, over temperature protection, lightning protection, island protection and other functions.
  • The inverter output current waveform distortion rate (THD%) is lower than 4%.

48 volt, 96 volt DC pure sine wave solar inverter with MPPT charge controller, 6000W (8000VA) rated power, 60 amps battery max charge current, perfect protection functions. LCD display is presenting statues of all parts in real time. Buy a low price inverter with MPPT charge controller online.

6000W Solar Inverter with MPPT Charge Controller Parameter List

Model ATO-IC-6000
Rated capacity 6000W (8000VA)
Size 555*390*195mm
Net Weight 43kg
Function Setting Time & date setting, Contrast, lightness, Switch voltage, Grid charge, Clear records, Operating parameter, Discharge limited setting, Reset
Working mode Grid priority/ Battery priority (optional)
Charge mode PV priority/ PV+grid (optional)
LCD dislpay Internal and External temperature, record query (fault record), system information query
PV input Voltage range 12V DC (18V-150V DC), 24V DC (34V-150V DC), 48V DC (65V-150V DC), 96V DC (130V-180V DC)
Battery max charge current 60A
Battery volatge 48V/ 96V
Max power load 3400W/ 6800W
Float voltage 12V (13.75V), 24V (27.5V), 48V (55V), 96V (110V)
Equalization voltage 12V (14.2V), 24V (28.4V), 48V (56.8V), 96V (113.6V)
Grid Input Battery type Lead acid/ gel/ lithium (optional, factory setting)
Charge current 0-30A
Charge mode Improve charge, direct charge, float charge
AC Output AC charge current Standard: 0-30A
AC output voltage 110/ 220/ 230/ 240V ±3%
AC output frequency 50Hz/ 60Hz
Conversion Efficiency ≥85%
Overload 105-120% 30s, 120-150% 10s,>150% 5s
Output form Pure sine wave
Output power factor ≥0.8
Wave form distortion ≤3%
Switching time ≤4ms
Protection Function Overload capacity 105-120% 30s, 120-150% 10s,>150% 5s
Over discharge 10.5V (12V) DC/ 21V (24V) DC/ 42V (48V) DC/ 84V DC shut down after alarm
Over charge 16V (12V) DC/ 32V (21V) DC/ 64V (48V) DC/ 128V DC shut down after alarm
High temperature 85℃ auto shut down after alarm
Short circuit Auto shut down
Others Cooling method Fan cooling
Noise <60 dB
Operating temperature -10℃-50℃
Environment humidity 10%-90% (No condensation)
Working Elevation <5000m (>1000m, derating)

Solar Inverter with MPPT Charge Controller Working Mode Instructions

Solar inverter with MPPT charge controller work mode instructions

Tips: Key factors of selecting a solar inverter

1. Rated power

The rated power of the selected solar inverter should match the maximum power of the solar cell array. Generally, the rated output power of the photovoltaic inverter is about the same as the total input power, which can save costs.

2. Key technical indicators

  • Select the appropriate input and output voltage range to ensure the optimal combination of products.
  • Efficiency of solar inverter: Its level will directly affect the design cost and power generation efficiency of photovoltaic power generation system.
  • Solar cell array maximum power tracking function (MPPT) and its efficiency.
  • Attention should be paid to the selected inverter should have basic protection functions, such as over current/ short circuit protection, over power protection, over temperature protection, lightning protection, island protection and other functions.
  • The inverter output current waveform distortion rate (THD%) is lower than 4%.
