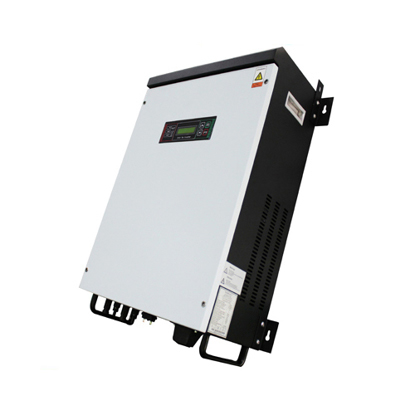

8000W Single Phase Grid Tie Solar Inverter
8000W Single Phase Grid Tie Solar Inverter 8000W Single Phase Grid Tie Solar Inverter 8000W Single Phase Grid Tie Solar Inverter

8000W Single Phase Grid Tie Solar Inverter

$1,942.29
| 1 review(s) | Add your review
Buy 8000 watt high power capacity grid tie solar inverter in your on grid system. It comes with wide MPPT range, max input voltage to 500 volt, default 1- phase 230 volt AC output, 5 years standard warranty, flexible communication connection, supports RS485C / RS232 or WiFi.
Free shipping
Delivery date: 6-12 days
SKU: ATO-GTI-8000
*
*
increase decrease
  • Overview
  • Specifications
  • Reviews
Overview

Single phase 8000 watt sine wave on grid inverter operates at 50Hz / 60Hz low frequency, transformerless design, with wide input voltage 180-500V DC and output 230V/ 240V (190-270) AC. IP65 protection degree, creative MPPT tech makes efficiency higher than 99%, is a perfect solution for grid tied solar power system.

Features

  • Can be applied to various fields, mainly for solar power, wind power, battery power, and scenery lamp power.
  • Strong IP65 protection, completed sealed cover suitable for harsh environment.
  • Advanced MPPT tracking technology, wide MPPT voltage range.
  • No isolation transformer H6 full-bridge configuration, highest efficiency reach 97%.
  • Over voltage, short circuit, overload, overheating, anti-islanding protection etc.
  • Multiple inverters can be operated in parallel.
  • LCD display, convenient for user to monitor main parameters.
  • Support various communication modes.

Parameter List

MODEL ATO-TL8000
DC INPUT Max. DC Input Power 8700 watt
Max. DC Input Voltage 500V DC
Max. DC Input Current 43A
MPPT Tracking Voltage Range 180-500V
MPPT Tracking Number / Each Input String Number 1/2
Power ON / OFF Voltage 200V / 100V
Input Terminal MC4
AC OUTPUT Power 8000W
Output Range Single phase AC 190~270V
Adjustable according to different countries and regions requirement.
Rated Voltage L+N+PE 220V/ 230V/ 240V AC
Frequency 50Hz / 60Hz
Phase Single phase (L1+L2) / Spilt phase (L1, L2+N), L1+L2=240V AC, L1+N=120V AC, L2+N=120VAC
Power Factor 1
Maximum Current 36A
Current THD At rated power and in the sine wave <3.5%
Max. Efficiency 97%
MPPT Efficiency 99.5%
Output Terminal Connect terminals
STRUCTURE Protection Degree IP20
Cooling Method Cooling fan
Topology No transformer
Noise <50db
Data Interfaces RS 485C / RS232 (Standard) / WiFi Module (Optional)
Isolation Type Non-isolated
Standby Power Consumption 0W
Display LCD dispaly
DC Switch Integration
AC Switch Integration
Protection Functions DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi
ENVIRONMENT Operation Temperature Air Flow, -10℃~40℃
Storage Temperature -20℃~60℃
Relative Humidity 0~100%
Altitude 2000m, max 3000m
OTHERS Size (W*H*D) The size of the inverter is different due to different specifications, please contact us to confirm.
Weight Single phase version: 58kg, split phase version: 116kg
Certificate CE / G83 / IEC / TUV / SAA
Warranty 5 years

Tips: Buy best grid tie solar inverter for your solar PV system

There are good reasons for buying a larger power capacity of grid tie solar inverter for your photovoltaic system like the solar inverter generates larger power, it will be able to handle our electrical appliances peaks, and will give us larger savings in electricity bills. Moreover, when buying, you will find there will be good rebates for buying larger system in the market, so for little extra money, you can buy a much bigger system (more economically feasible).

A larger power capacity of on grid solar inverter for a solar system will produce more electrical energy which can be sold back to the grid and provide us credits that can partially or totally pay for our energy consumption from the grid at night hours. Also, this extra power can be used to charge our electric car or charge home batteries. And what encourages us to get a larger photovoltaic system is that quality solar panels' lifespan is 25 years and more, so no worries.

Specifications
Products specifications
Attribute name Attribute value
Installation Guide

PDFSingle-phase Grid Tie Inverter Installation Guide

User Manual

PDFSingle-phase Grid Tie Inverter User Manual
