Centrifugal pumps are among the most widely used fluid handling devices in industrial systems. Whether in petrochemical plants, power stations, food processing, pharmaceuticals, or municipal water and wastewater systems, centrifugal pumps are everywhere. Despite their seemingly simple structure, there is one critical operating rule: a centrifugal pump should never be run dry, meaning it should never operate without liquid inside the pump casing. This is a hard line that every operator, design engineer, and maintenance technician must respect.
But why exactly is dry running a centrifugal pump so damaging? What catastrophic outcomes can it lead to? In this article, Home Power Inverter will break down the working principles of centrifugal pumps, explore the destructive consequences of running them dry, and lay out effective engineering solutions to prevent such failures.
The Working Principle of Centrifugal Pumps and the Nature of Dry Running
The operation of a centrifugal pump is based on the centrifugal force generated by a rotating impeller. When the pump is started, the motor drives the impeller at high speed. The liquid is accelerated by the impeller blades, gaining kinetic energy and being flung outward through the volute casing, where it is converted into pressure energy and discharged. This continuous process depends on a liquid-filled flow path between the impeller and the casing.

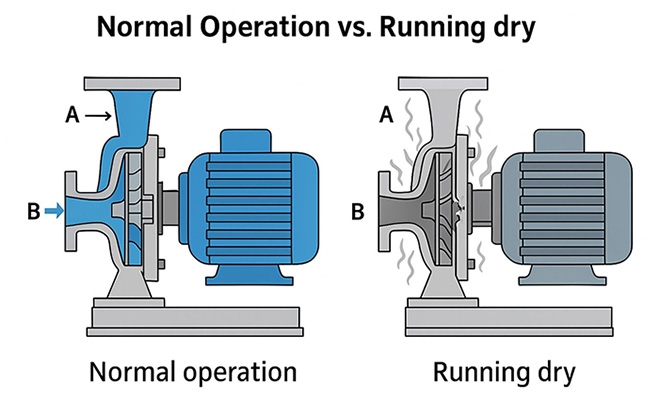

Dry running occurs when the pump is started but no liquid is present in the suction line or pump casing, either due to an unprimed system, closed valves, suction blockages, or air leaks. In this state, the impeller spins in air instead of liquid, leading to conditions such as dry friction, overheating, and cavitation. On the surface, dry running might look harmless — just a spinning impeller in space — but in reality, this behavior can irreversibly damage the pump in a matter of minutes.
What are the Destructive Effects of Dry Running a Centrifugal Pump?
1. Catastrophic Wear on Mechanical Seals and Bearings
The mechanical seal is a vital component that prevents fluid from leaking along the pump shaft. Under normal operation, the seal faces are lubricated by a thin film of liquid, which minimizes friction and heat. During dry running:
- Instant overheating: Without lubrication, friction causes the seal face temperature to skyrocket, often exceeding material limits within seconds.
- Seal damage: Seal rings, often made from graphite or ceramic, may melt, warp, or fuse with the stationary housing.
- Uncontrolled leakage: Once the seal fails, hazardous liquids may leak out, causing environmental contamination or fire risks, especially when pumping flammable fluids.
- Bearings are at similar risk: A bearing that lacks lubrication can quickly overheat, causing wear of the rolling elements, cages, or journals, and eventually seizure or breakage.

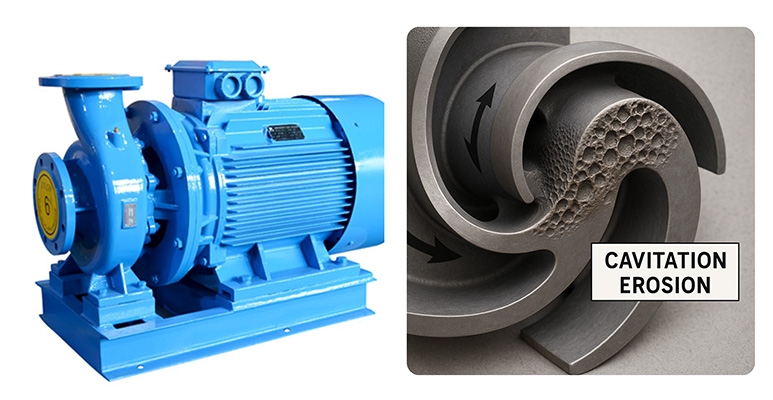

2. Cavitation and Vapor Damage to Impellers and Casings
When a centrifugal pump runs dry, the internal pressure can drop below the vapor pressure of the liquid, especially near the impeller eye. This leads to:
- Vaporization: Liquid rapidly turns into vapor bubbles.
- Cavitation collapse: As the bubbles move into high-pressure zones, they implode violently, releasing localized shockwaves.
- Erosion: These implosions create pitting and micro-cracks on the impeller and casing surfaces, reducing pump efficiency and causing material loss.
In severe cases, cavitation can fracture the impeller entirely.
3. Motor Overload and Burnout Risks
Centrifugal pump motors are designed assuming the presence of liquid resistance — what we call hydraulic damping. When this resistance disappears during dry running:
- Overspeeding risk: Without load feedback, some motors may accelerate uncontrollably.
- Electrical anomalies: While the no-load current might drop, startup or stall conditions can cause current surges that destroy the motor windings.
- Thermal protection failure: Repeated dry starts can disable the thermal safety system, increasing fire hazards.
4. Vibration and Structural Fatigue
Running a pump without fluid leads to internal hydraulic imbalance, which manifests as:
- Excessive vibration: Uneven weight distribution in the spinning impeller causes lateral forces on the shaft and casing.
- Loose fittings: Prolonged vibration can loosen bolts, flanges, and pipe supports, leading to leaks or fractures.
- Fatigue cracking: Oscillating stress cycles initiate micro-cracks in the pump shaft or casing, eventually causing total mechanical failure.
Safety and Economic Impact of Dry Running
- Direct Economic Losses: Replacing seals, bearings, impellers, or entire pump assemblies can cost 30–50% of the pump's original value. A failed critical pump may halt an entire production line, with downtime losses ranging from tens of thousands to millions. To hedge against such failures, companies often maintain costly spare parts in stock, tying up working capital.
- Safety and Environmental Risks: Pumps handling hazardous or flammable media can cause fire, explosion, or toxic exposure upon seal failure. Chemical spills may contaminate soil or water, exposing companies to regulatory fines and lawsuits. Exploding components or high-speed shaft failures can pose direct risks to nearby personnel.
- Long-Term Performance Degradation: Even if dry running doesn’t cause immediate failure, it reduces long-term reliability. Cavitation and wear can reduce pump efficiency by 10–30%, increasing energy costs. The actual lifespan of the pump may be reduced to one-third of its designed expectancy.
How to Prevent Dry Running in Centrifugal Pumps?
- Improve system design and installation. The suction piping should be kept short and straight to minimize friction loss and avoid sudden bends or diameter reductions. The suction height must comply with the pump’s required NPSH (Net Positive Suction Head) to prevent cavitation and air entry. Installing a foot valve and a check valve helps prevent backflow after shutdown, ensuring the pump casing remains filled with liquid for the next startup. A minimum flow line should be included, especially for high-head pumps (such as the 20 hp vertical centrifugal pump on Inverter.com), and a bypass line should be added to guarantee a continuous minimum flow even under low-load conditions.
- Optimize operating procedures. Before startup, use an air release valve or fill port to expel any trapped air, ensuring the impeller is fully submerged. Avoid any form of “dry-run testing”; under no circumstances should the pump be operated without liquid inside. Even brief dry running can cause irreversible damage. Operators should monitor discharge pressure, motor current, vibration, and casing temperature in real time and shut down the pump immediately if abnormalities are detected.
- Apply smart protection technologies. Install level switches or low-level interlocks in tanks or sumps to automatically stop the pump when the liquid level drops too low. Use dry run protection devices that monitor vibration, temperature, or power signals and can automatically cut off power at the early stages of dry running. Implement IoT-based systems for remote monitoring and early warning, enabling predictive diagnostics and risk mitigation before failures occur.
- Strengthen personnel training and management. Establish clear operating procedures detailing the steps for pump startup, operation, and shutdown, and strictly prohibit unauthorized or unsafe operation. Conduct emergency drills simulating dry running and similar fault scenarios to improve the team's response capabilities. Maintain a comprehensive maintenance log tracking pump operating hours, service history, and spare parts replacement, supporting full life-cycle management and performance tracking.
Conclusion
A centrifugal pump is a machine that can only "breathe" in liquid. It is not self-priming, and it cannot operate without fluid inside. Dry running is not just inefficient — it’s a fast track to mechanical failure, safety hazards, and costly downtime. Avoiding dry running requires a comprehensive approach that includes proper system design, rigorous operational discipline, intelligent protection systems, and continuous training and proactive maintenance. Treating centrifugal pump dry run prevention as a core engineering principle — not an optional safeguard — is the only way to ensure safe, efficient, and long-term pump operation.
